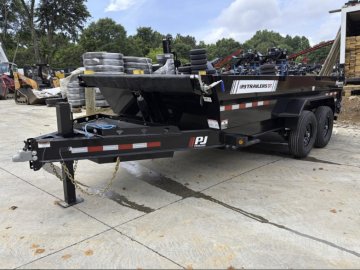

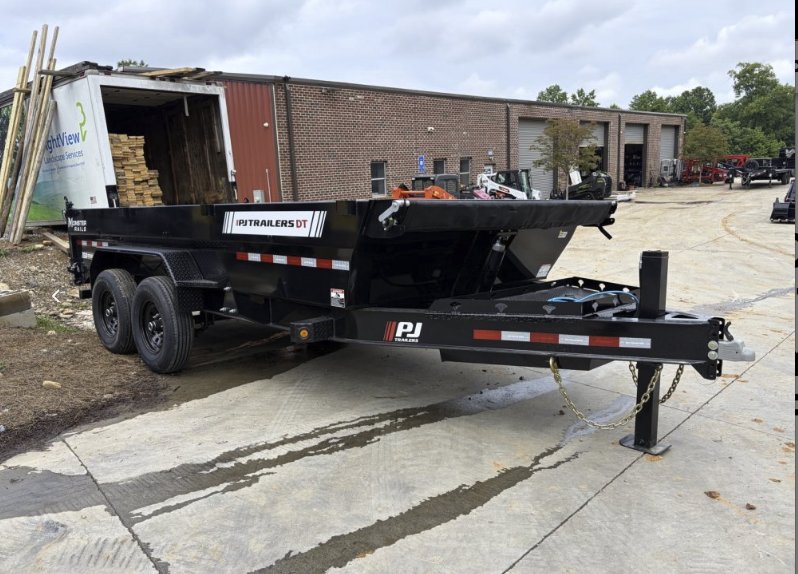

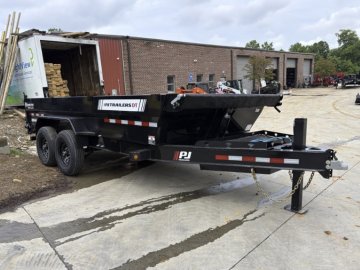

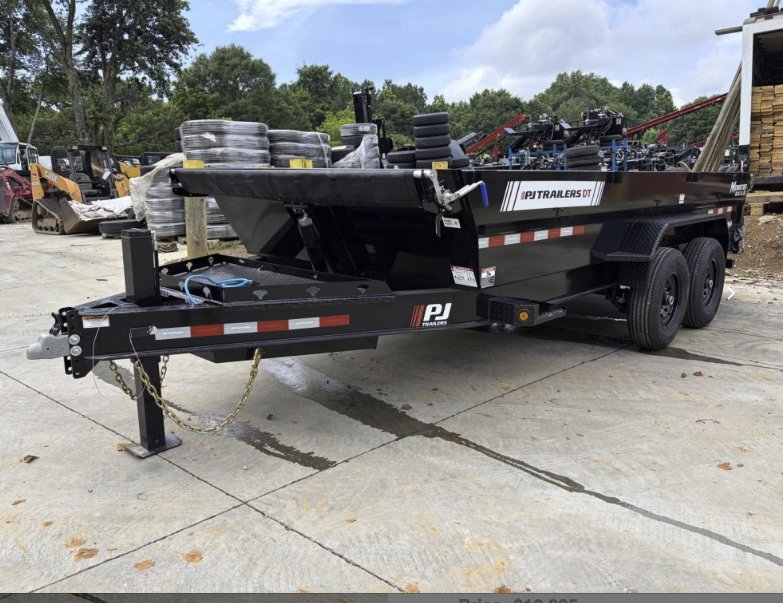

The PJ DT 7x16 Dump Trailer is built for contractors, landscapers, equipment operators, and commercial users who need extra bed length and serious dumping capability. This unit is rated at 17,600 lb GVWR and equipped with 24" / 2' sides, heavy-duty 14-ply tires, and a hydraulic jack for quick and easy hookup without manually cranking a loaded trailer.

PJ builds the 7x16 DT around a 12-ton, 3-stage front-mounted telescopic cylinder with a 144" cylinder on the 16' model. The hydraulic system is power-up/gravity-down, while the heavy-duty dump body uses a 7-gauge steel floor and 10-gauge UniWall steel sides.

Features:

• 7' x 16' Dump Trailer
• 17,600 lb GVWR
• 83" Inside Bed Width
• 24" / 2' UniWall Steel Sides

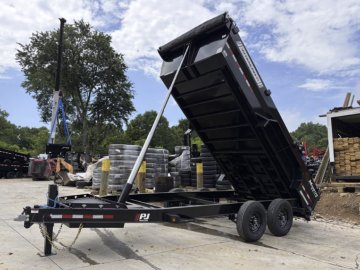

• 12-Ton 3-Stage Telescopic Hoist
• 144" Telescopic Cylinder
• Power-Up / Gravity-Down Hydraulics

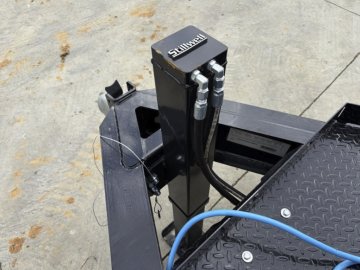

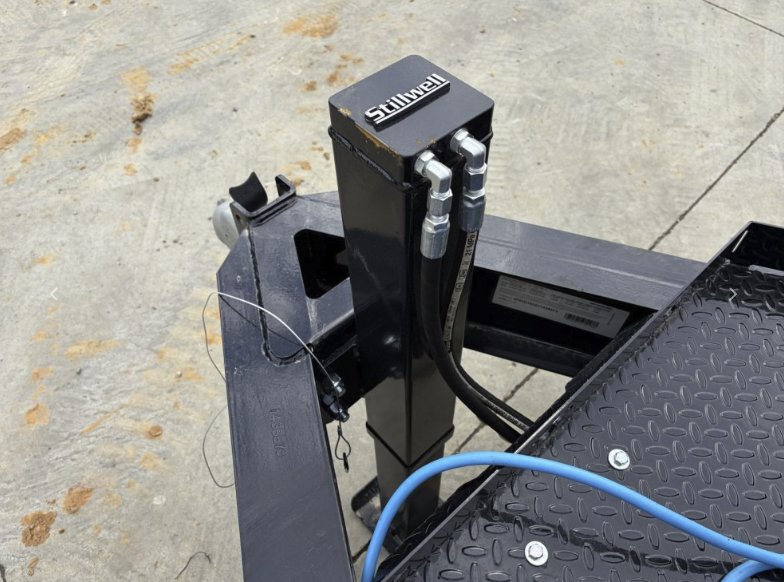

• Hydraulic Jack
• 14-Ply Heavy-Duty Tires
• 8" x 13 lb I-Beam Main Frame
• 8" x 13 lb I-Beam Tongue
• 3" Channel Crossmembers on 16" Centers
• 7-Gauge Steel Dump Floor
• 10-Gauge Steel Sides
• 1/8" Treadplate Steel Fenders

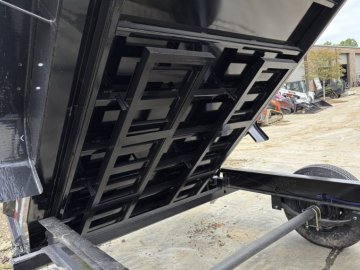

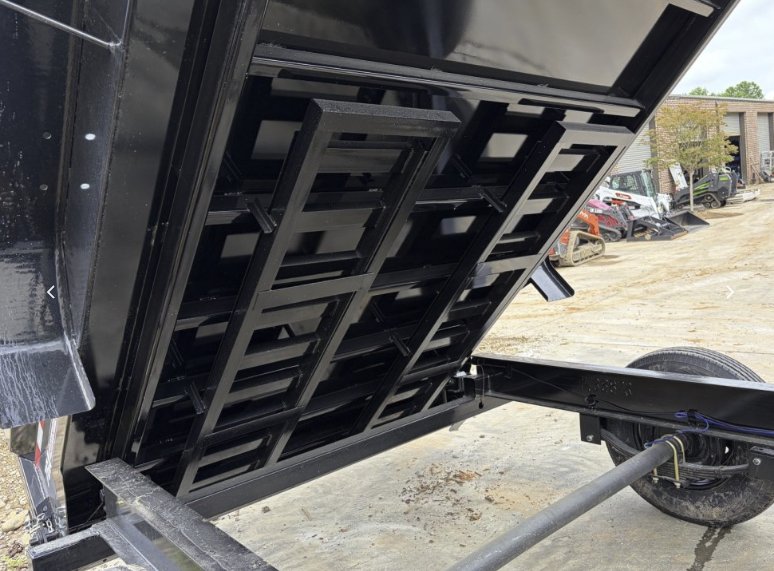

• 6'6" Slide-In Equipment Ramps
• Four Interior Welded D-Rings
• Stake Pockets Along Both Sides
• Split Barn Door / Spreader Gate
• Roll-Up Tarp Kit
• 12V Deep-Cycle Hydraulic Battery
• Integrated 110V Trickle Charger
• All-Weather 7-Way Wiring Harness
• Electric Breakaway System with Charger
• Adjustable 2-5/16" Demco EZ-Latch Coupler
• Powder-Coated Finish

Ideal For:

• Skid Steers & Compact Equipment
• Dirt & Gravel
• Construction & Demolition Debris
• Landscaping Materials
• Roofing Debris
• Farm & Property Maintenance
• Commercial Contractor Use
