The PJ DT1 7x14 Telescopic Dump Trailer is built for contractors, landscapers, equipment operators, and property owners who need a heavy-duty dump trailer capable of hauling both material and machinery. This upgraded configuration is rated at 17,600 lb GVWR and rides on tandem 8,000 lb oil-bath axles with 14-ply Load Range G tires. PJ lists this 8K axle/14-ply package as an available DT1 configuration.

At the heart of the DT1 is PJ’s 5-stage front-mounted telescopic hydraulic cylinder, paired with a 45° dump angle for efficient unloading. This unit is also equipped with a hydraulic jack, making hookup and unhooking much easier compared with a conventional manual drop-leg jack. PJ specifically lists a single hydraulic jack as an available bumper-pull option on the DT1.

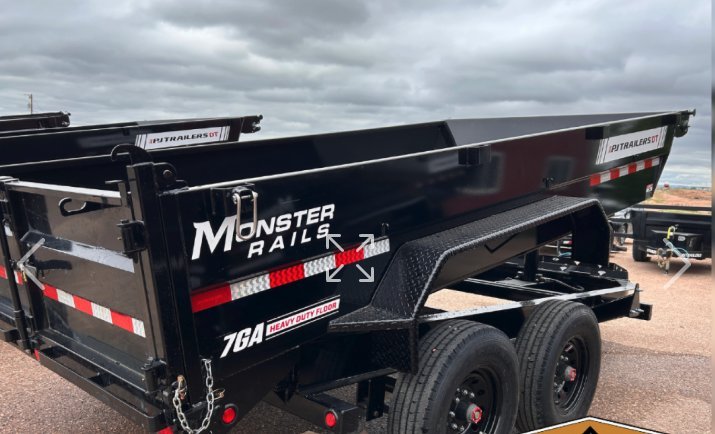

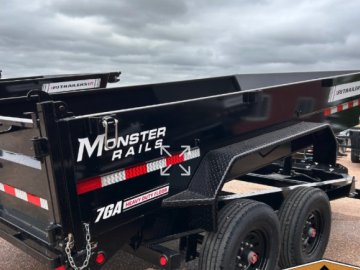

The dump body features 24" steel sides with Monster Rails, a heavy-duty 7-gauge steel floor, a split barn-door/spreader gate, slide-in equipment ramps, rear stabilizer stands, and a large lockable front toolbox.

Features:

• 7' x 14' Dump Trailer
• 17,600 lb GVWR
• 83" Inside Bed Width
• 24" / 2' Steel Sides
• 5-Stage Front-Mounted Telescopic Cylinder
• 45° Dump Angle
• Tandem 8,000 lb Oil-Bath Axles
• 14-Ply Load Range G Tires
• Hydraulic Jack
• Electric Brakes
• 6-Leaf Slipper-Spring Suspension
• 8" x 13 lb I-Beam Main Frame
• 8" x 13 lb I-Beam Tongue
• 3" Channel Crossmembers on 16" Centers
• 7-Gauge Steel Dump Floor
• Monster Rail Top-Rail System
• 1/8" Treadplate Steel Fenders
• 6'5" Slide-In Channel Equipment Ramps
• Rear Stabilizer Stands
• Split Barn-Door / Spreader Gate
• Roll-Up Tarp Kit with Protective Shroud
• Monster-Sized Lockable Toolbox
• Four Interior Welded D-Rings
• Stake Pockets Along Both Sides
• Adjustable 2-5/16" Demco EZ-Latch Coupler
• 12V Deep-Cycle Hydraulic Battery
• All-Weather 7-Way Wiring Harness
• Primer + Powder-Coat Finish

Ideal For:

• Skid Steers & Compact Equipment
• Dirt & Gravel
• Construction Debris
• Landscaping Materials
• Roofing Debris
• Farm & Property Maintenance
• Commercial Contractor Use
