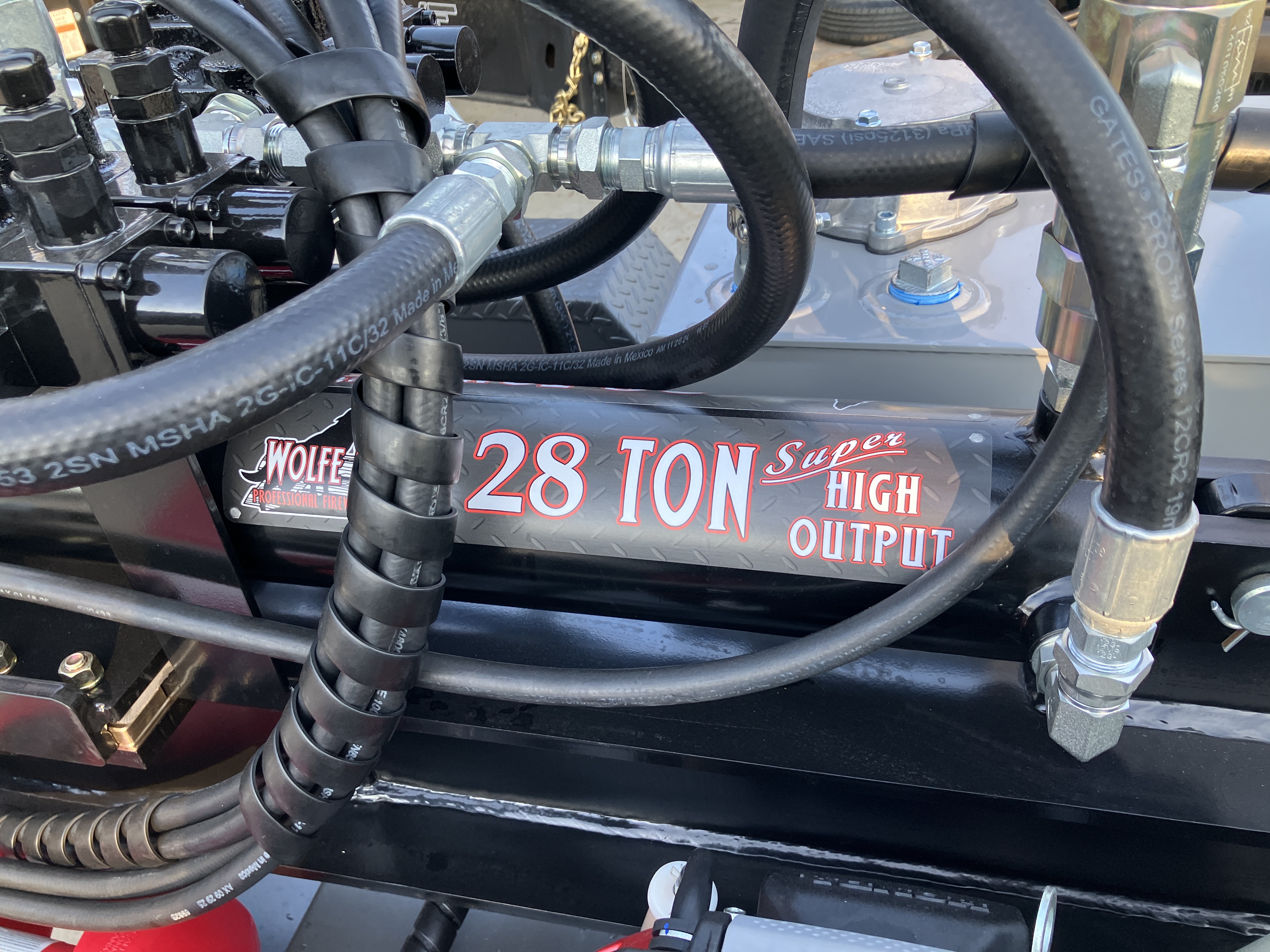

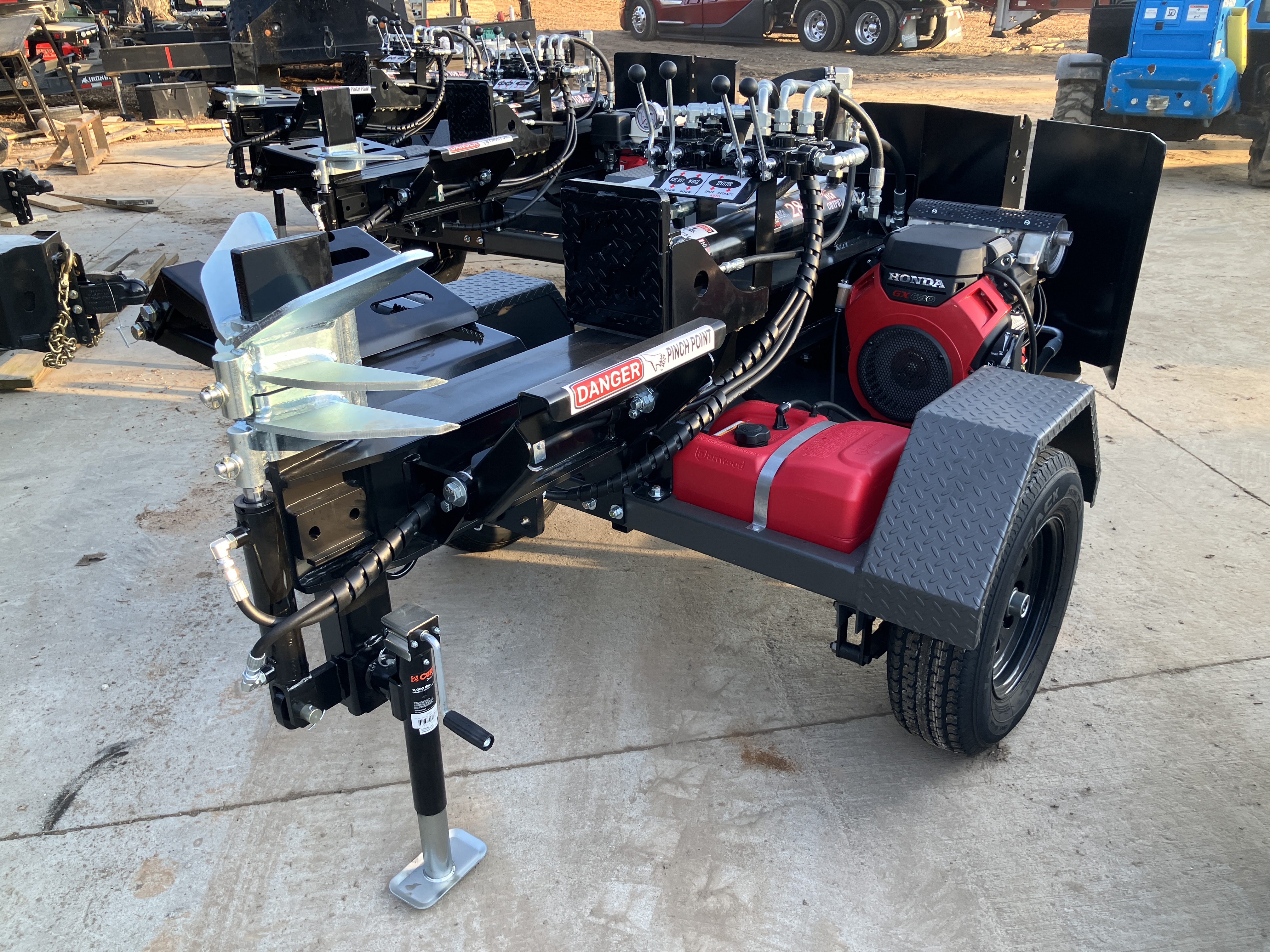

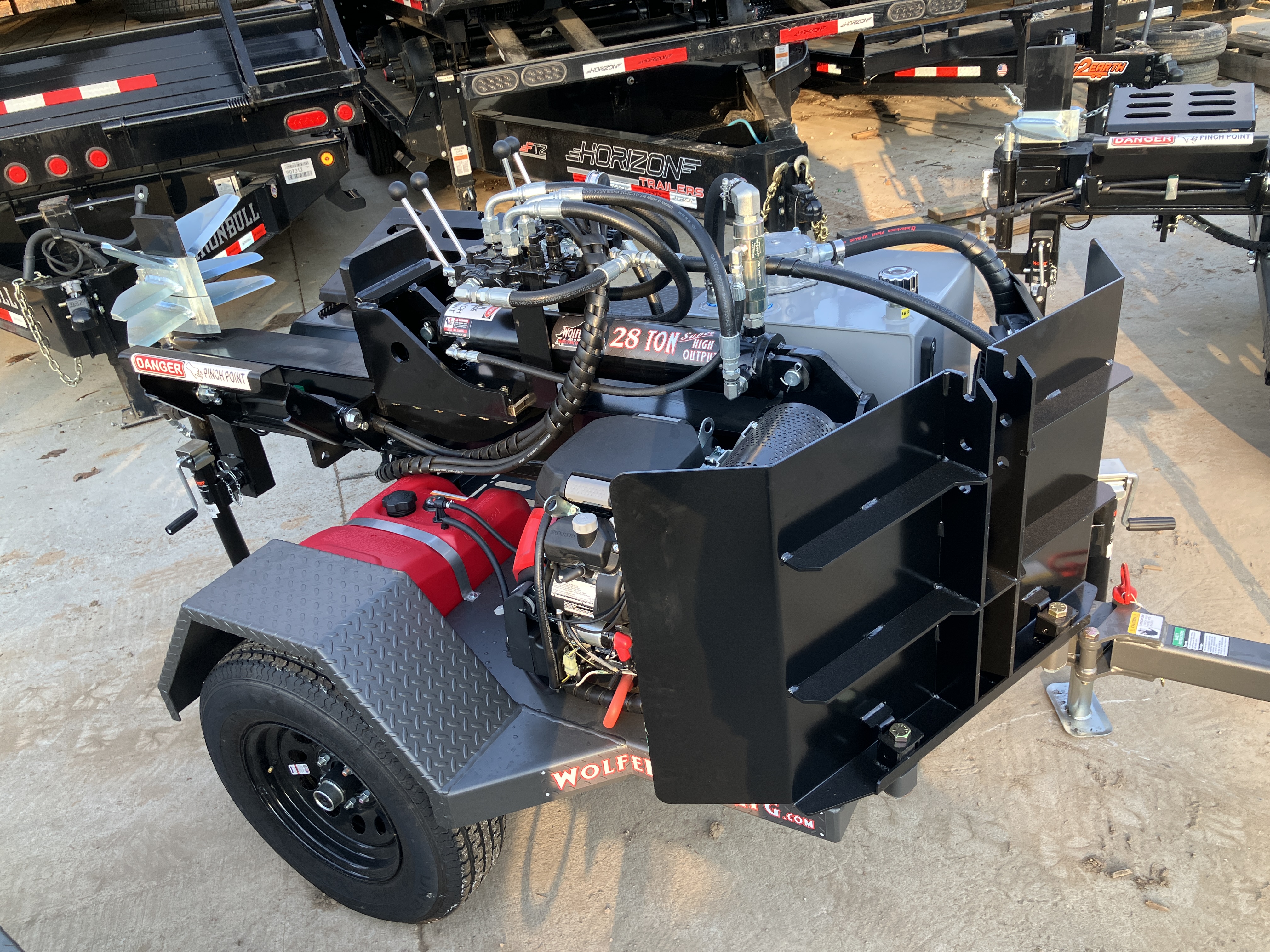

2026  Wolfe Ridge  28SHO Honda GX630 w/ 4 & 6 way wedge  - 28SHO

The Super High Output is built with a Honda GX630 v-twin engine and 28 gallon per minute pump on an upgraded heavy duty highway towable frame.  28-ton splitting force.  Built to last, made in the USA, all Wolfe Ridge machines are produced with top-quality materials to ensure reliable performance, day in and day out.

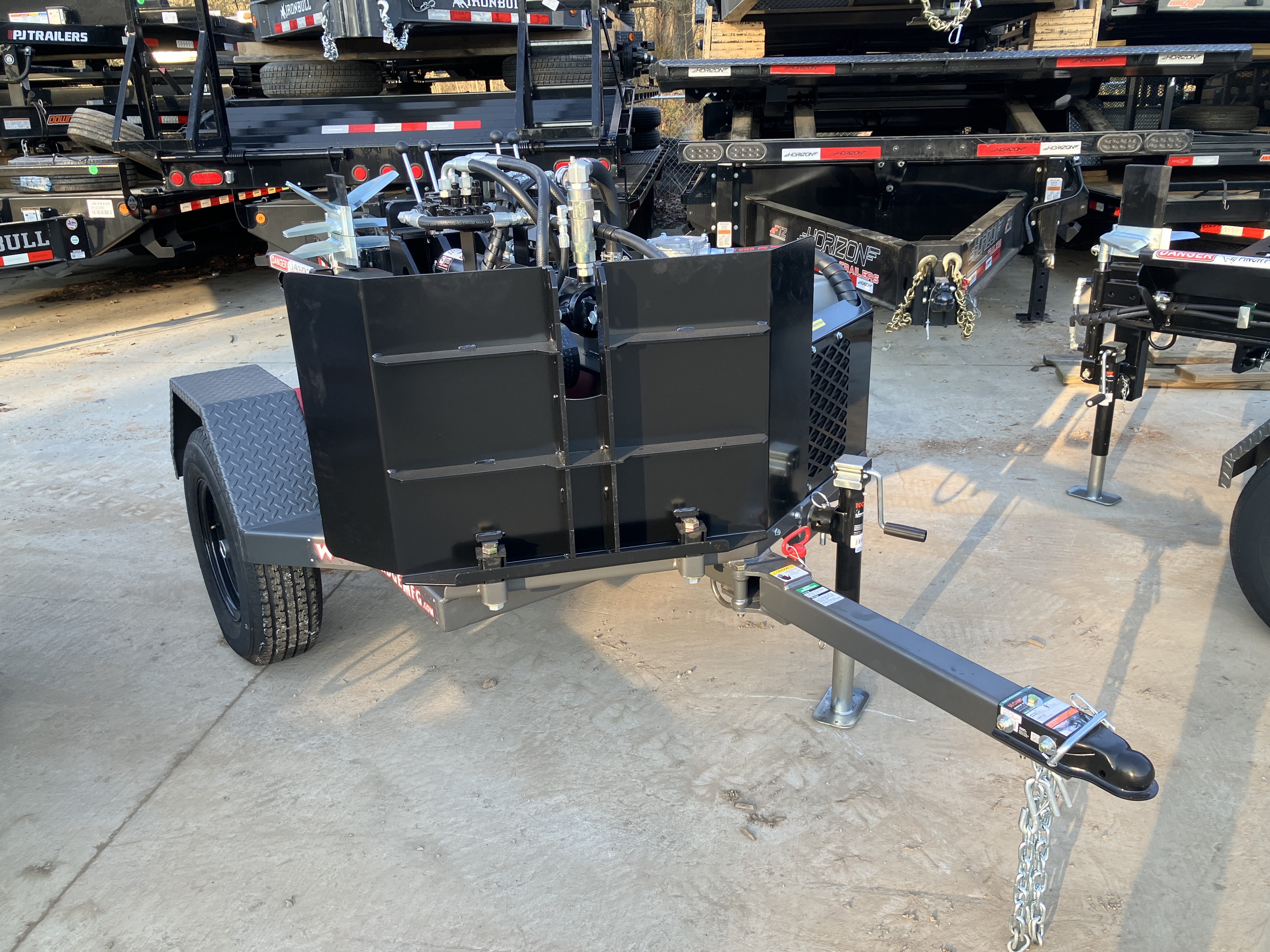

The frame features heavy duty welded fenders, a suspended highway axle / wheels / tires, and a fold away hitch tongue.  This allows the Super High Output log splitter to be towed at speeds of up to 80 MPH.  Optional LED taillight package, and optional aluminum wheel upgrades are available for this model as well.

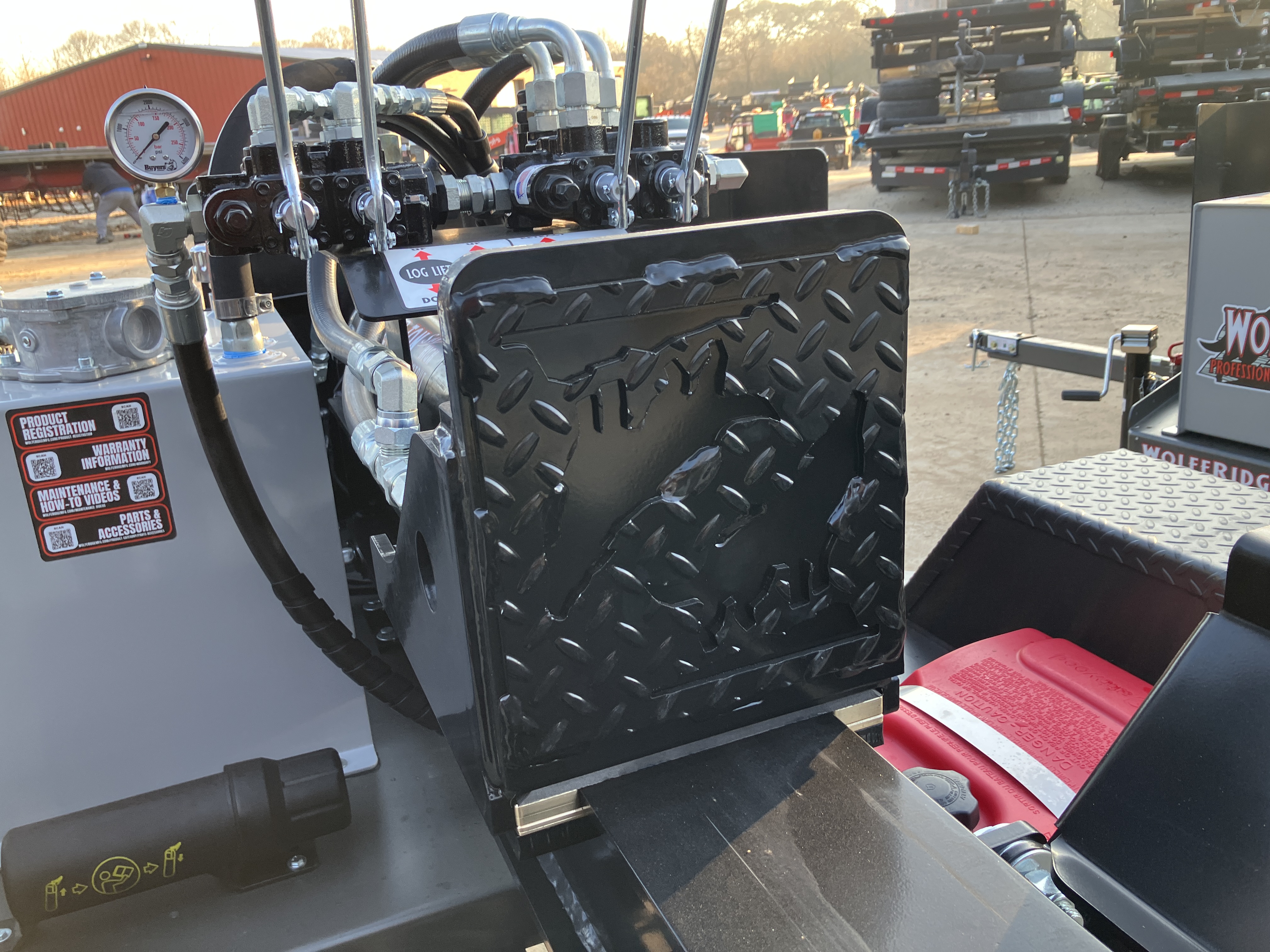

The Wolfe Ridge Super High Output log splitter features the “Magnum Big Bore” package as standard equipment.  This includes the 12 inch tall push block and big bore cylinder for consistent performance and fast cycle times.  That means less time and effort spent on splitting wood, and more time for everything else.  This log splitter from Wolfe Ridge is loaded with features that make it user-friendly and easily transported from job to job.

• 28-ton
• Magnum Big Bore package with super fast cycle time
  • 28 SHO = 5.5 seconds
• Heavy duty welded frame with suspended highway axle / wheels / tires
• Powerful Honda or Kubota engine for consistent performance
• Prince auto cycle valve on 20HP model
• Galtech/HC D16 auto cycle valve on 25HP models
• Hydraulic log lift as standard equipment
• Hydraulic wedge height adjustment as standard equipment
• Hydraulic oil cooler with fan as standard equipment
• Electric start as standard equipment
• Sandblasted and powder coated for a tough, long lasting appearance
  • Gun Metal Grey
• 1 year warranty on machine – 3 year on engine

The Super High Output log splitter from Wolfe Ridge is built for the most demanding firewood producers.  Split any hardwood with ease while enjoying fast cycle times!  Invest in a high-quality, made in USA log splitter that delivers exceptional results every time.

Tech Specs

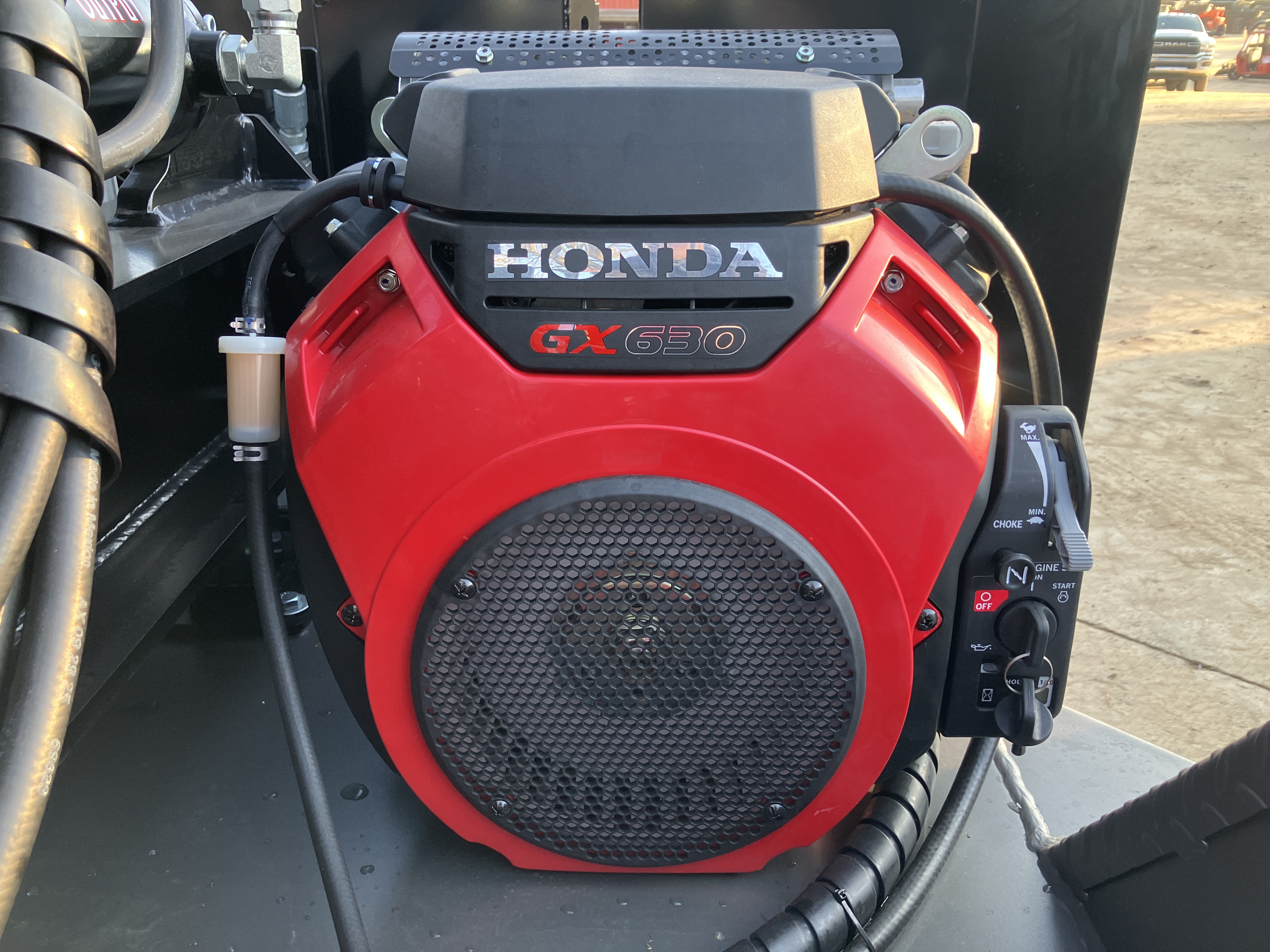

• Honda GX630 20HP v-twin engine
• 12 volt electric start with Interstate battery
• 28 GPM hydraulic pump
• NEW high capacity 30 gallon steel hydraulic oil tank with cartridge return filter

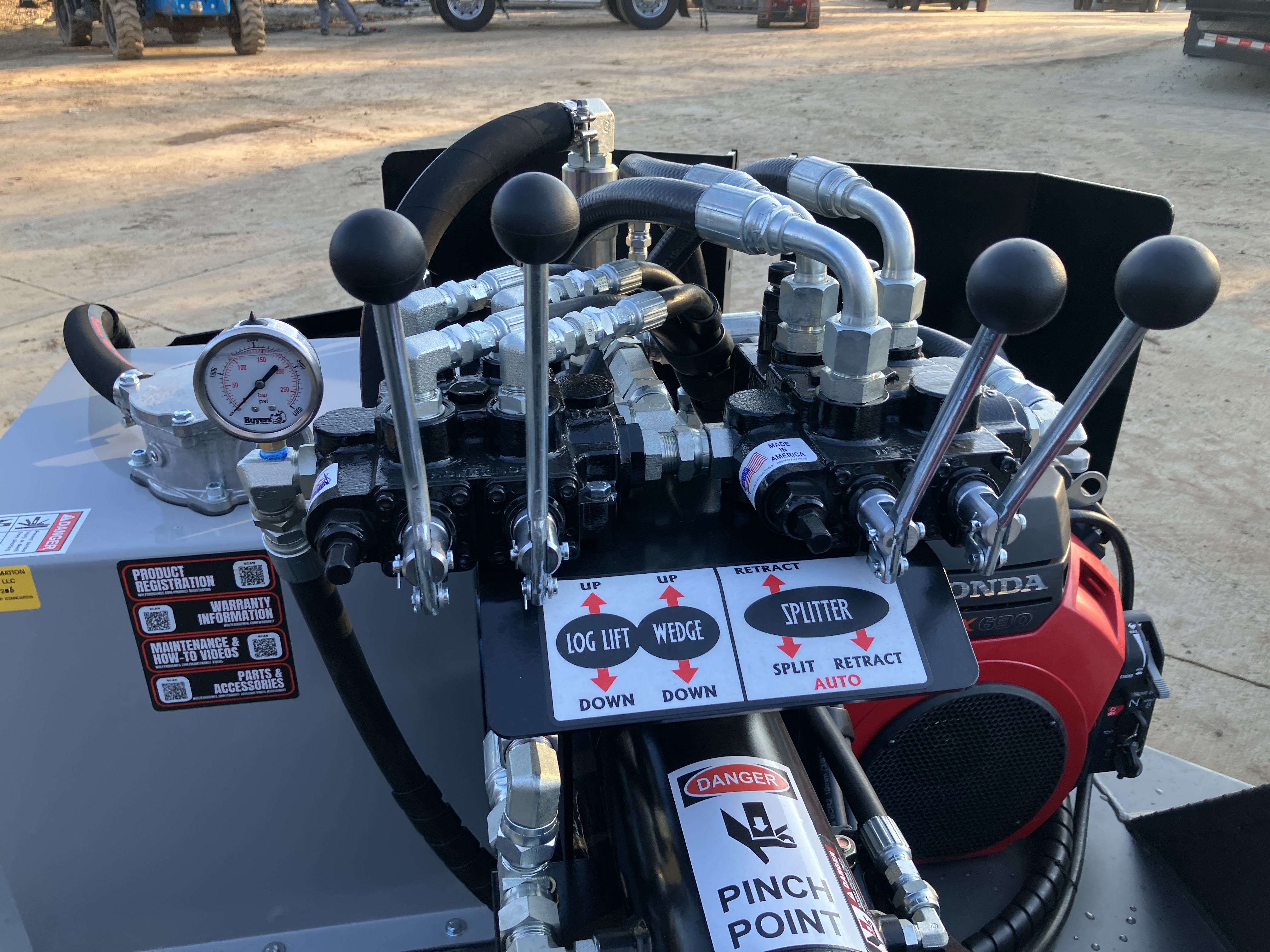

• Prince auto cycle valve
• Magnum big bore package with 12 inch tall push block
• Bronze self lube slides on push block
• In-house welded & fabricated splitter beam
• 32 inch beam height
• 24 inch stroke length

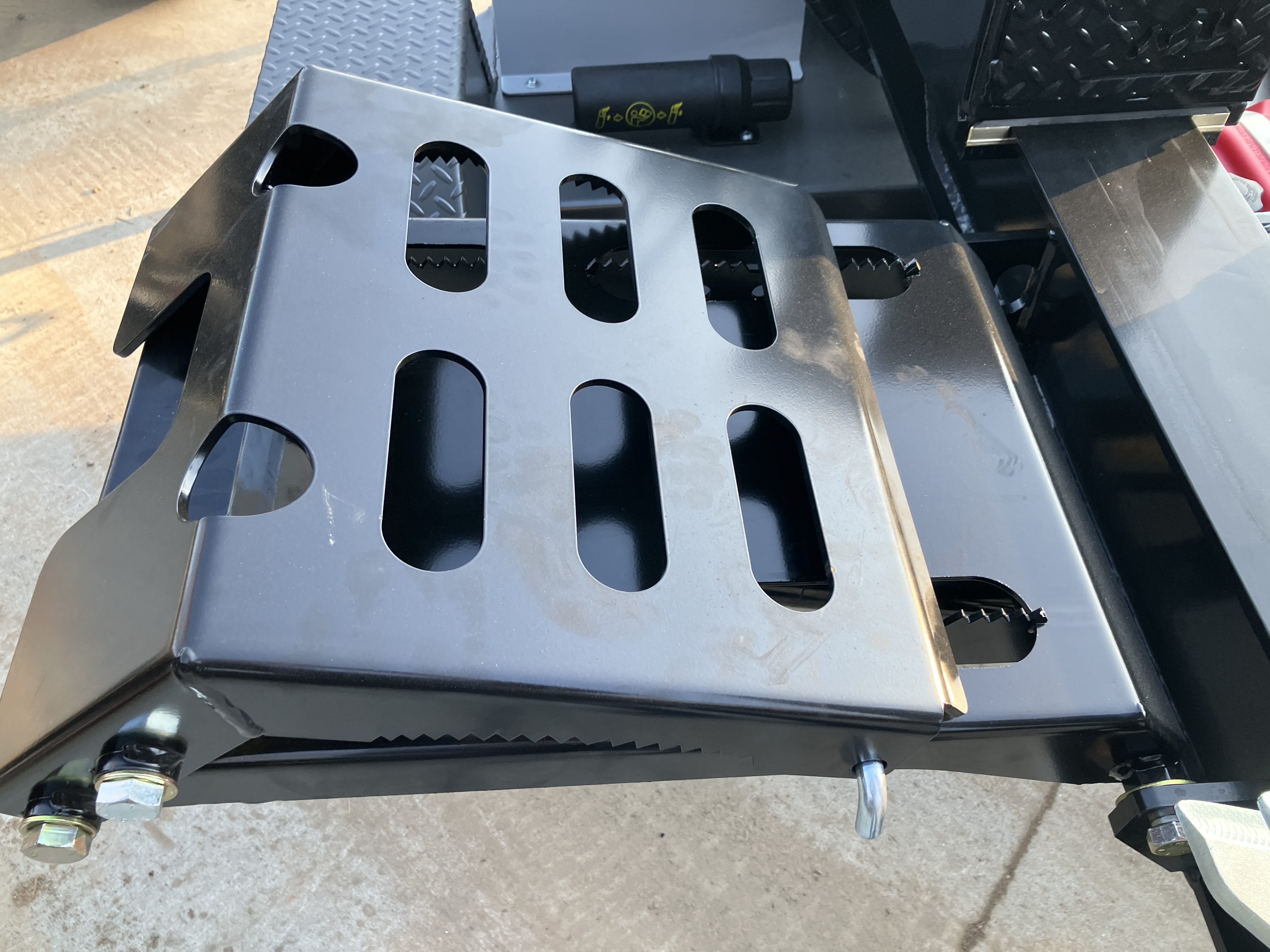

• Extra long hydraulic log lift included – 600lb lift capacity
• Hydraulic wedge height adjustment

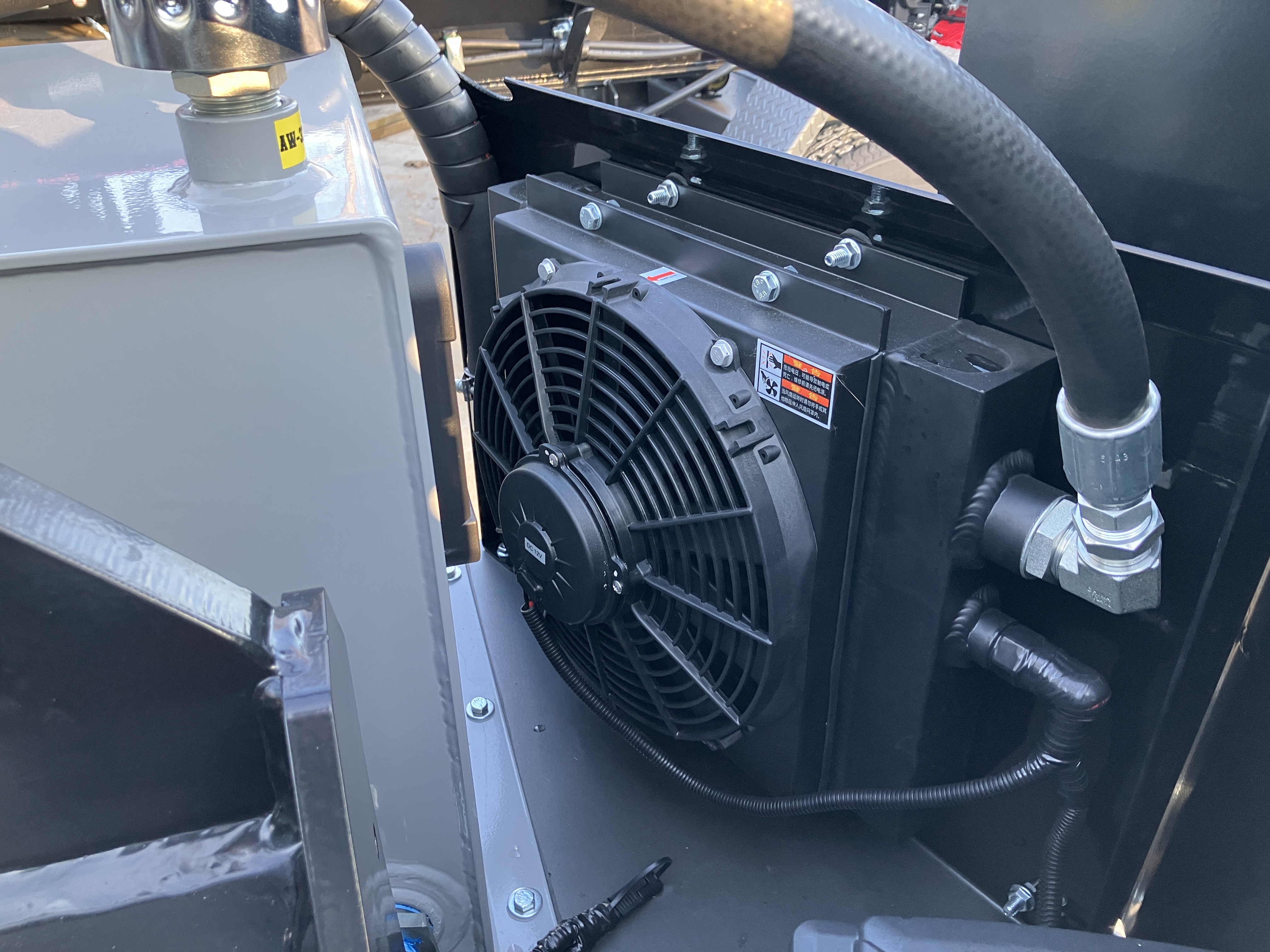

• Hydraulic oil cooler with 12 volt fan and thermostat

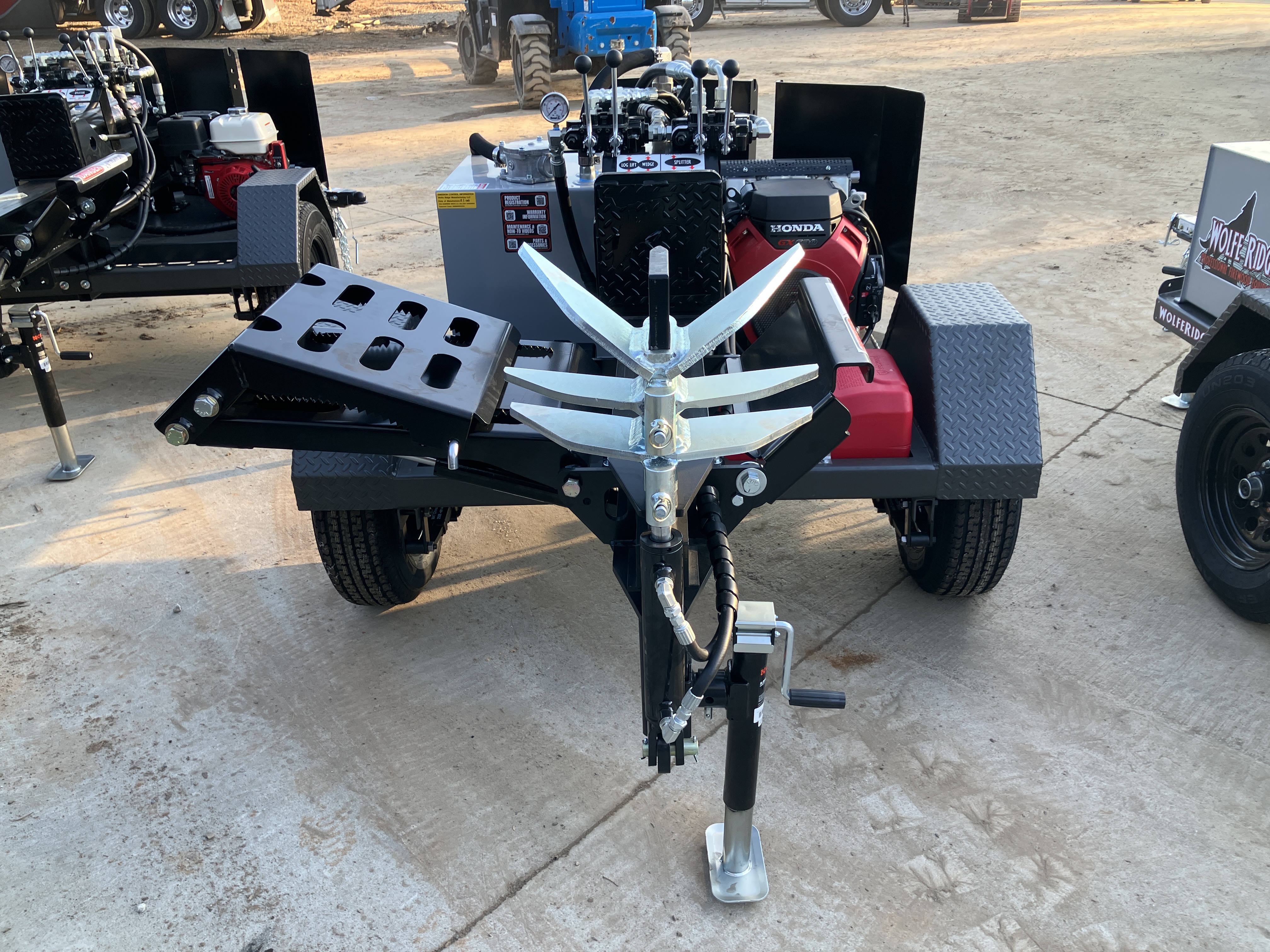

• Removable 4 way AND 6 way wedges included (12 way optional)
• Folding swing-away drawbar with 2 inch hitch ball coupler
• 6″ x 14″ rims, 26″ radials, Dexter axle and spring suspension
• Heavy duty welded steel fenders
• 80 MPH max towing speed
• 69″ x 148″ overall size
• Weight: 1900 l
