2025  Iron Rhino  IR1200 Mini Skid Steer Bundle with Power Rake  - IR1200+PowerRake

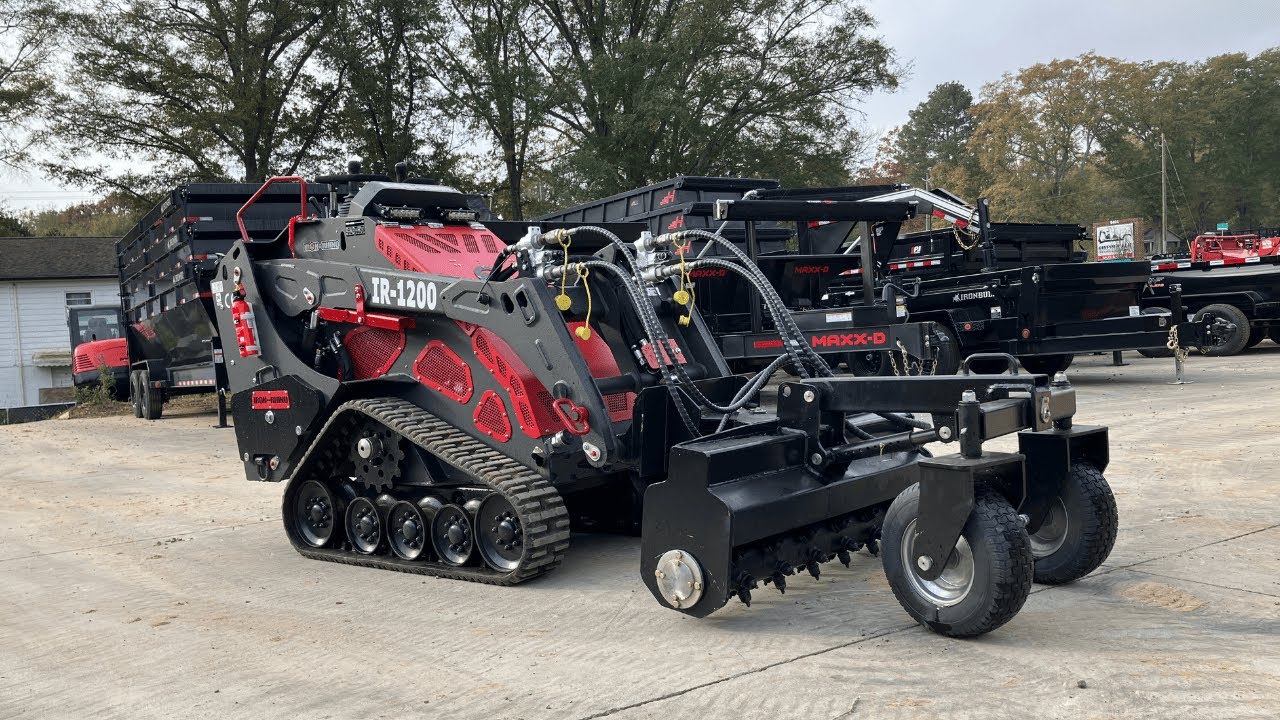

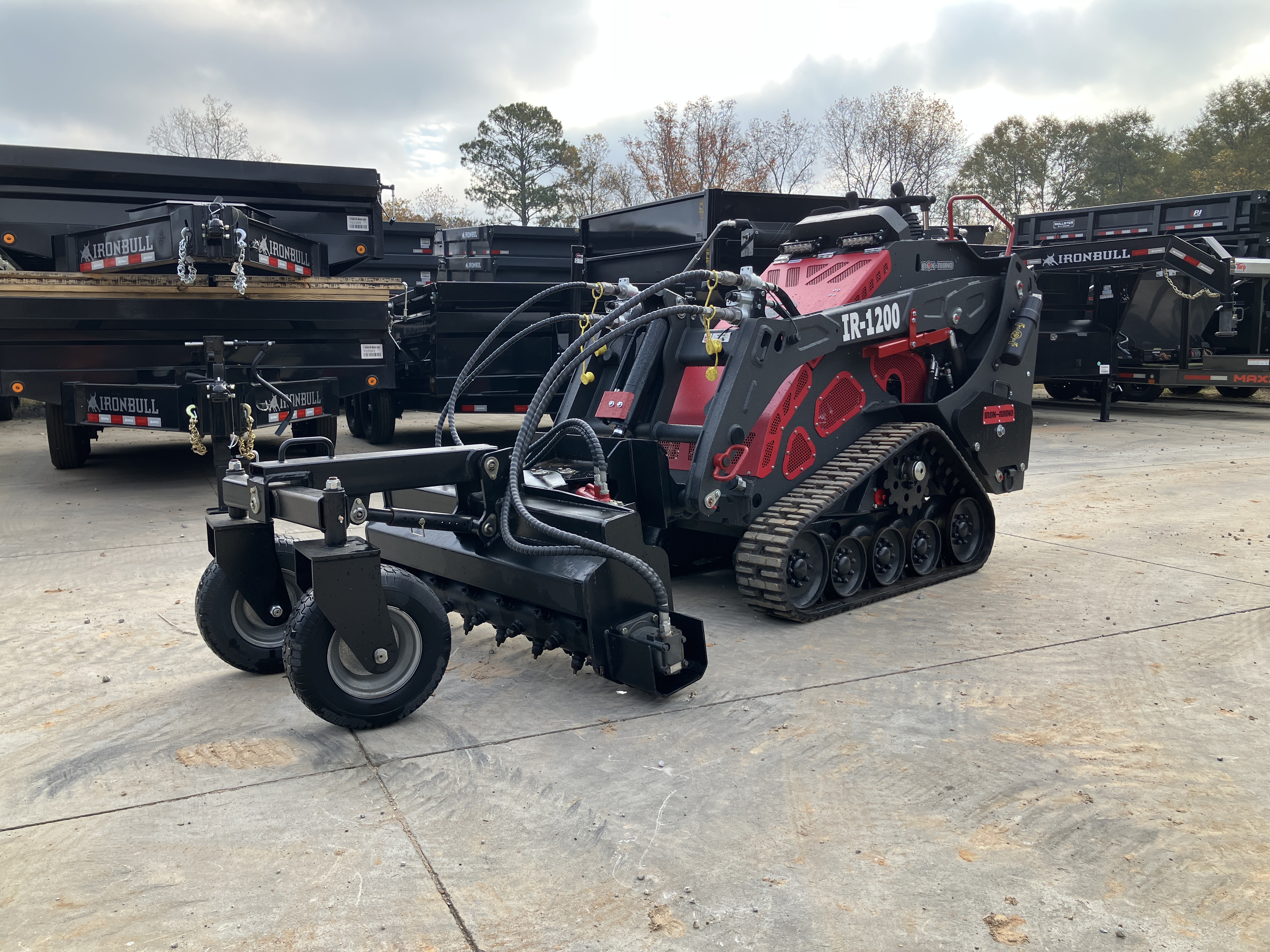

## Iron Rhino IR1200 Narrow Track Mini Skid Steer with 4 Hose Bidirectional Power Rake Bundle
This Specific Version of the IR1200 has upgraded Poclain Drive Motors and the upgraded higher capacity bucket

## 25 HP Kubota D1703 Diesel Engine

## 3874# machine weight with bucket

## 1300# Operating Capacity @35% Tip

## 3715# tip capacity

## 85.5" Hinge Pin Height

## 39.5" Wide with 8 Tracks

## 108.3" Overall Length with Bucket, 83.5" without Bucket

## 63" Height

## 12GPM AUX Flow, 2610 PSI Hydraulic Pressure

## 4.2 PSI Ground Pressure

## 11" Ground Clearance

(Bucket-42" Wide, 6" Cutting Edge 1/2" thick, 20" Height, 25" Depth, 1/4" steel wrap, 1/4" thick wear plate on bottom, 3/4" bucket edge, 1/4" angle supports behind plate and along the top edge of the bucket, Bolt on Teeth)

## 8.46 Gallon Fuel Tank Capacity

## 8.46 Hydraulic Tank Capacity

## Keyless Start with Password Protection

## Parking Brake

## Float

## Dual Hydraulics

## Work Lights Standard

## Fold Up Ride-On Platform

## Joystick Controls

## 1 Year/1200 Hour Warranty

## * Free Shipping to States East of the Rockies *

44" Power Rake Soil Cultivator Harley Rake Dingo Mini Universal Mount

44" working width 55.5 total width carbide teeth. Used to pulverize hard packed soil and remove rocks and roots. Pull all debris to edge leaving a perfectly level pulverized soil layer ready for seed or sod. Max flow 15GPM. Only needs minimum 5gpm to turn fast enough to function. Direct drive so simple operation.
Has Hydraulic Angle Adjustment with 4 Hose Hookup
Note: When using wheels to level must use float on dingo. Wheels are intended to carry weight of harley rake but not weight of dingo. 650 lbs
