2024 Wolfe Ridge 35SHOBW Kubota 25HP D902 Diesel w/ box wedge, 2way & 4way - 35SHOBWD902
Get in Touch
Dealer Notes
(Shown with 6way wedge that is available for an additional $500)
The Box Wedge Machine from Wolfe Ridge is the best way to get consistent and uniform split sizes with every cycle of the splitter. Built with a 25 HP Kubota D902 Diesel engine and 38 gallon per minute pump and 35 ton cylinder. The Box Wedge Machine can be built on a skid mount (see Heavy Duty Industrial) or on a highway towable frame (see Super High Output). Built to last, made in the USA, all Wolfe Ridge machines are produced with top-quality materials to ensure reliable performance, day in and day out.
The SHO frame features heavy duty welded fenders, a suspended highway axle / wheels / tires, and a fold away hitch tongue. The HDI frame features a full “roll cage” to protect the engine and pump package from damage.
The box wedge machine includes a standard 3.5” x 3.5” box wedge with returner arm. As well, a 2 way wedge with BOLT-ON height adjustable 4 way wedge is included. NOTE: the traditional wedge included with the Box Wedge Machine is NOT hydraulically height adjustable. The Box Wedge Machine is loaded with features that make it one of our most versatile product offerings.
- 35-ton splitting force
- Box wedge, returner arm, and traditional 2 / 4 way wedges included
- Magnum Big Bore package with 7 second cycle time
- Powerful Kubota engine for consistent performance
- Easy-to-use controls
- Galtech hydraulic valves on 25HP / 38GPM machine
- Hydraulic log lift as standard equipment
- Hydraulic oil cooler with fan as standard equipment
- Electric start as standard equipment
- Sandblasted and powder coated for a tough, long lasting appearance
- Red
- 1 year warranty on machine – 3 year on engine
The Box Wedge Machine from Wolfe Ridge is built for the firewood producers who demand uniform and consistent firewood every time! Invest in a high-quality, made in USA log splitter that delivers exceptional results every time.
Tech Specs
- Kubota D902 diesel engine with 38GPM pump
- 12 volt electric start with Interstate battery
- 38 GPM hydraulic pump
- 28 gallon aluminum welded hydraulic tank with cartridge return filter

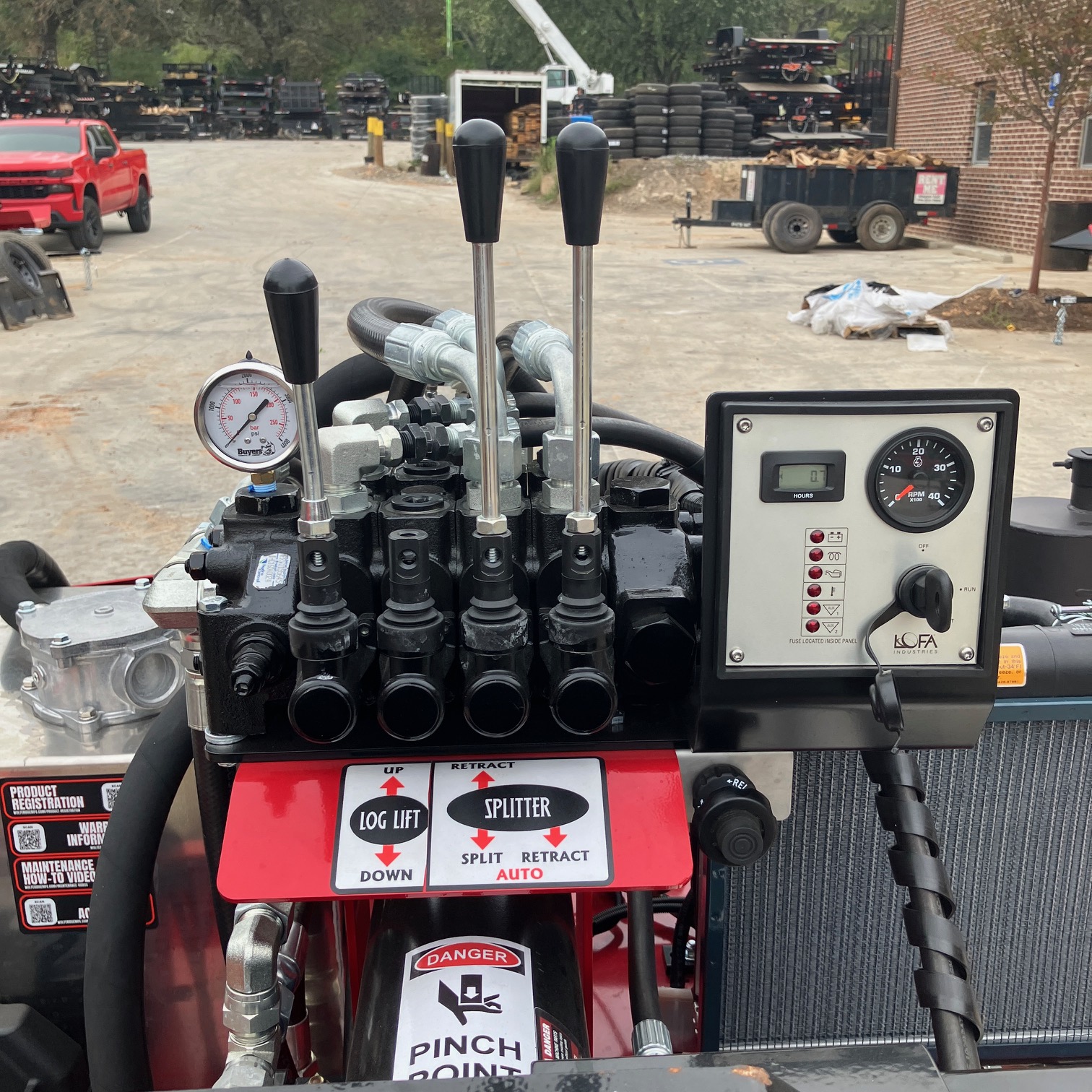

- Galtech/HC D16 auto cycle valve on 25HP model
- Magnum big bore package with extra wide and 12 inch tall push block
- Bronze self lube slides on push block
- In-house welded & fabricated splitter beam
- 32 inch beam height
- 24 inch stroke length (30 inch optional)
- Pullback arm included for easy re-splitting (longer arm included with 30 inch stroke machine)

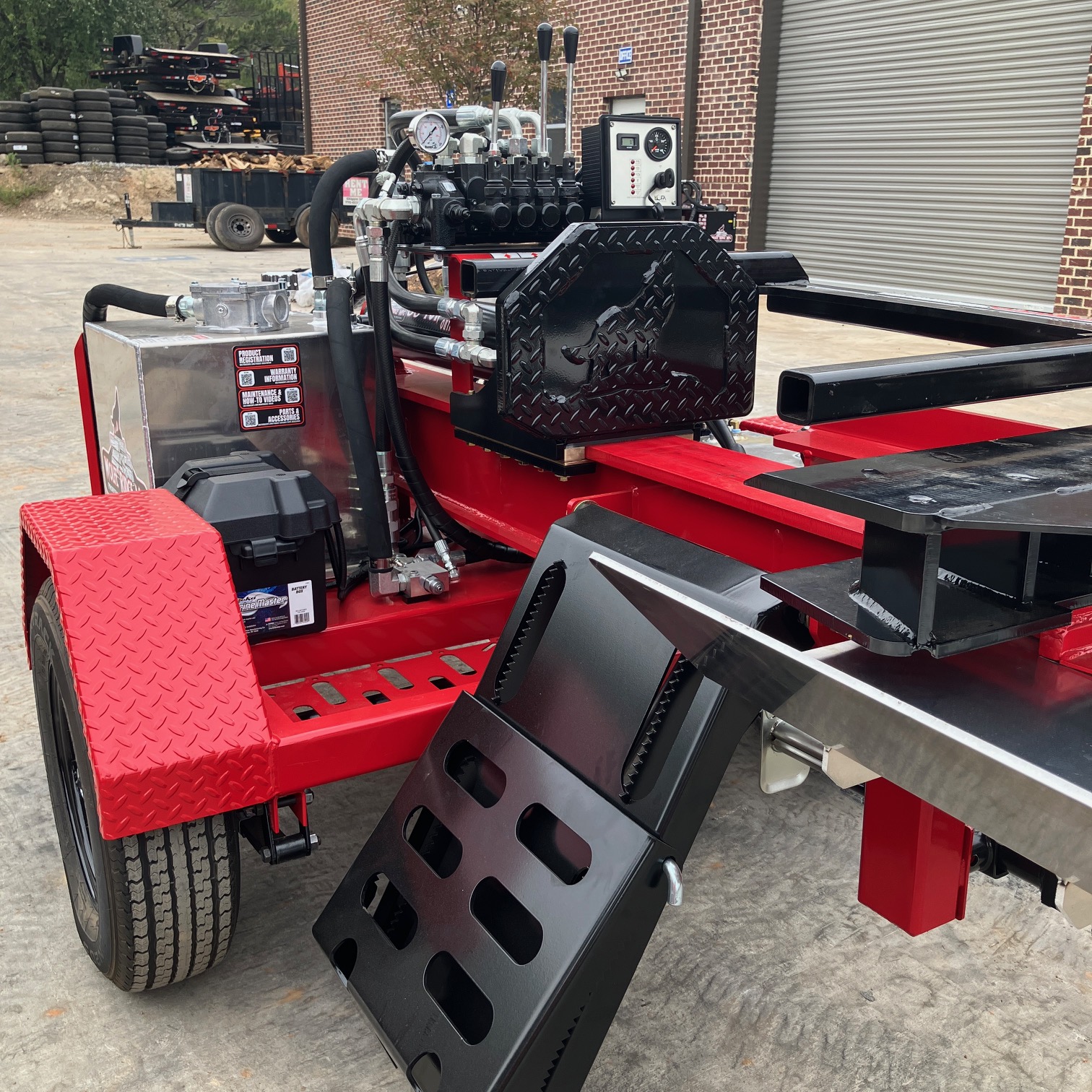

- Hydraulic log lift included

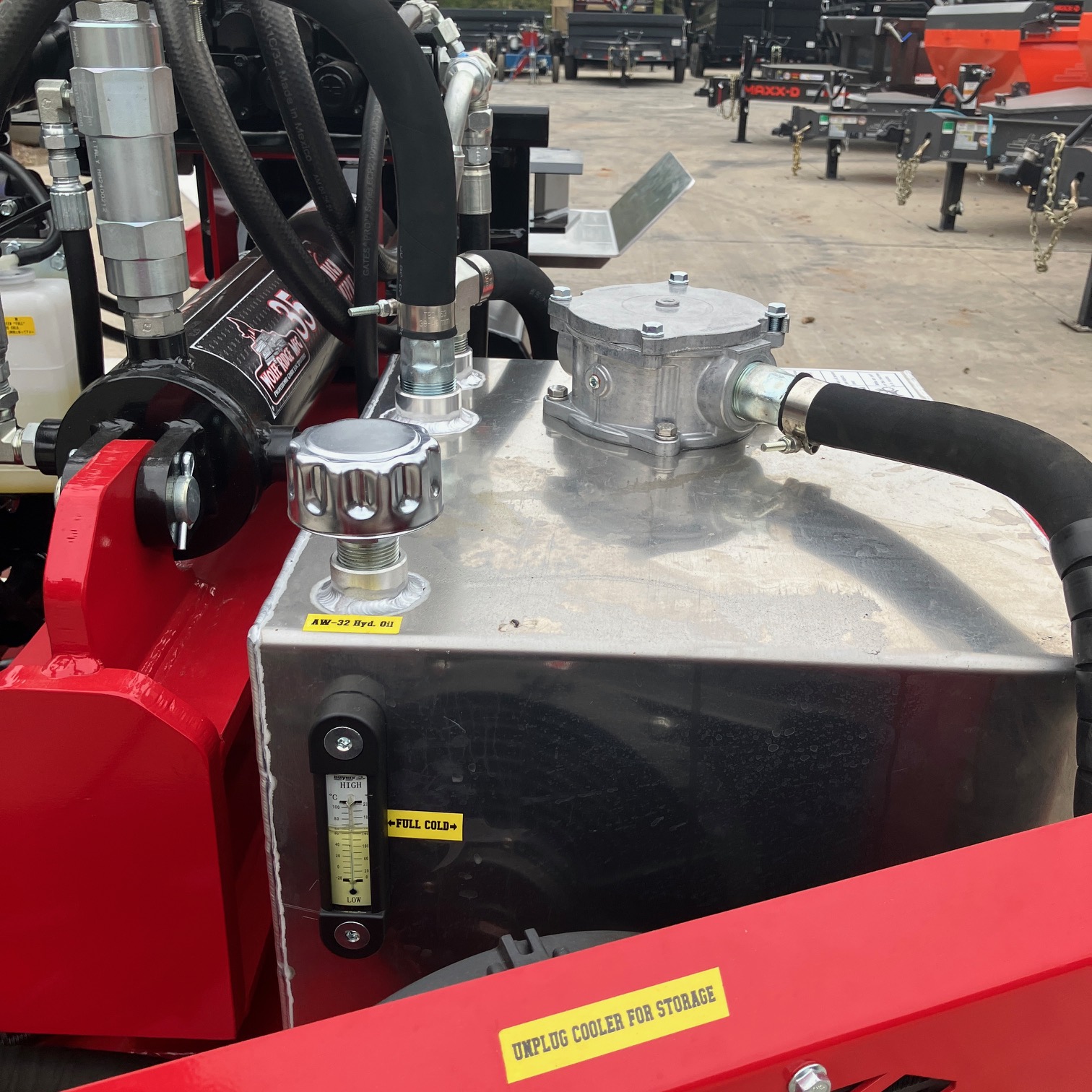

- Hydraulic oil cooler with 12 volt fan and thermostat

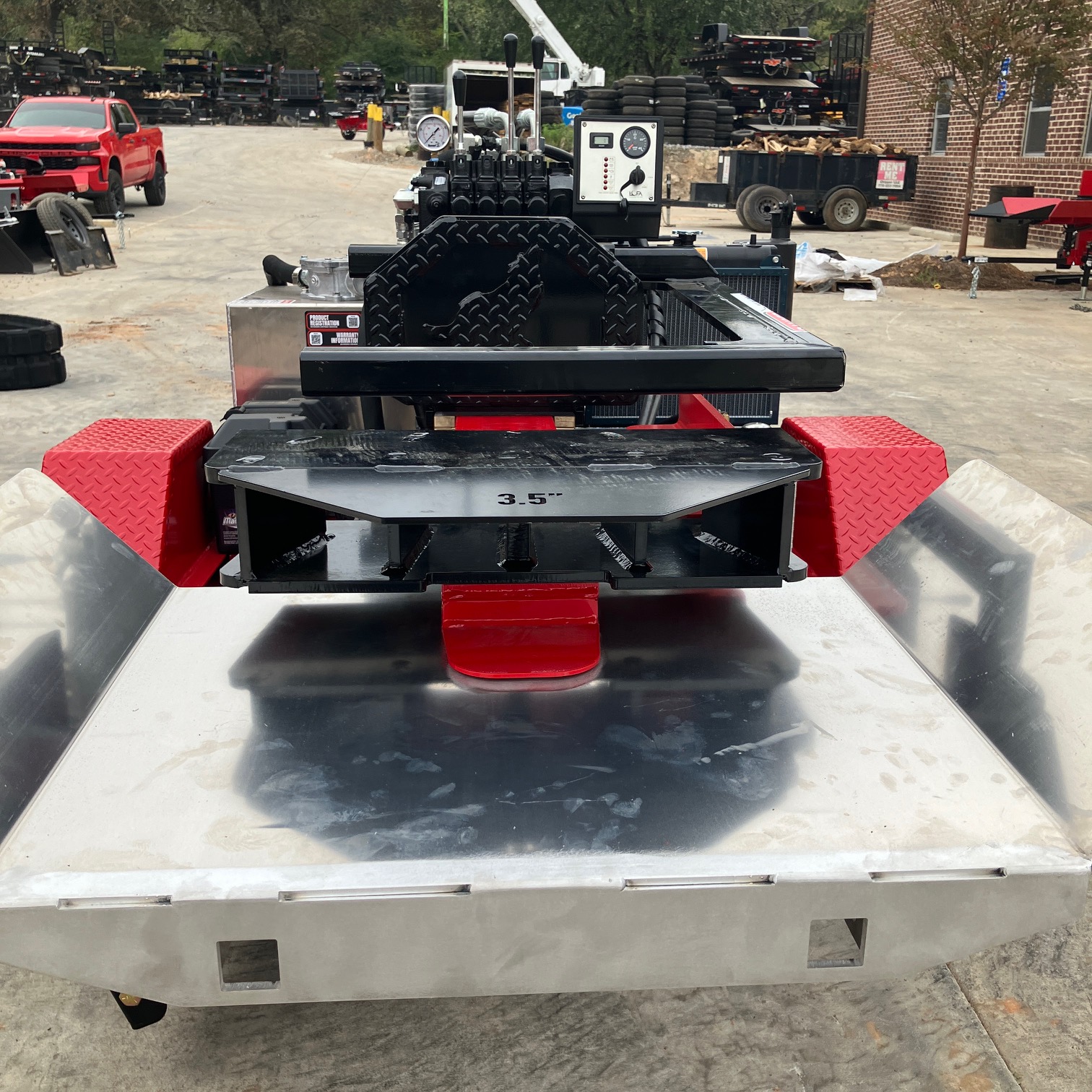

- Removable 7 way 3.5” x 3.5” Box Wedge included as standard – FIXED POSITION
- Other wedge sizes available as options (3×3, 4×4, 4.5×4.5)
- Removable 2 and 4 way traditional wedges included
- Height is mechanically adjustable – BOLT-ON 4 way
- Optional 6 way and 12 way traditional wedges – BOLT-ON
- SHO Box Wedge Machine

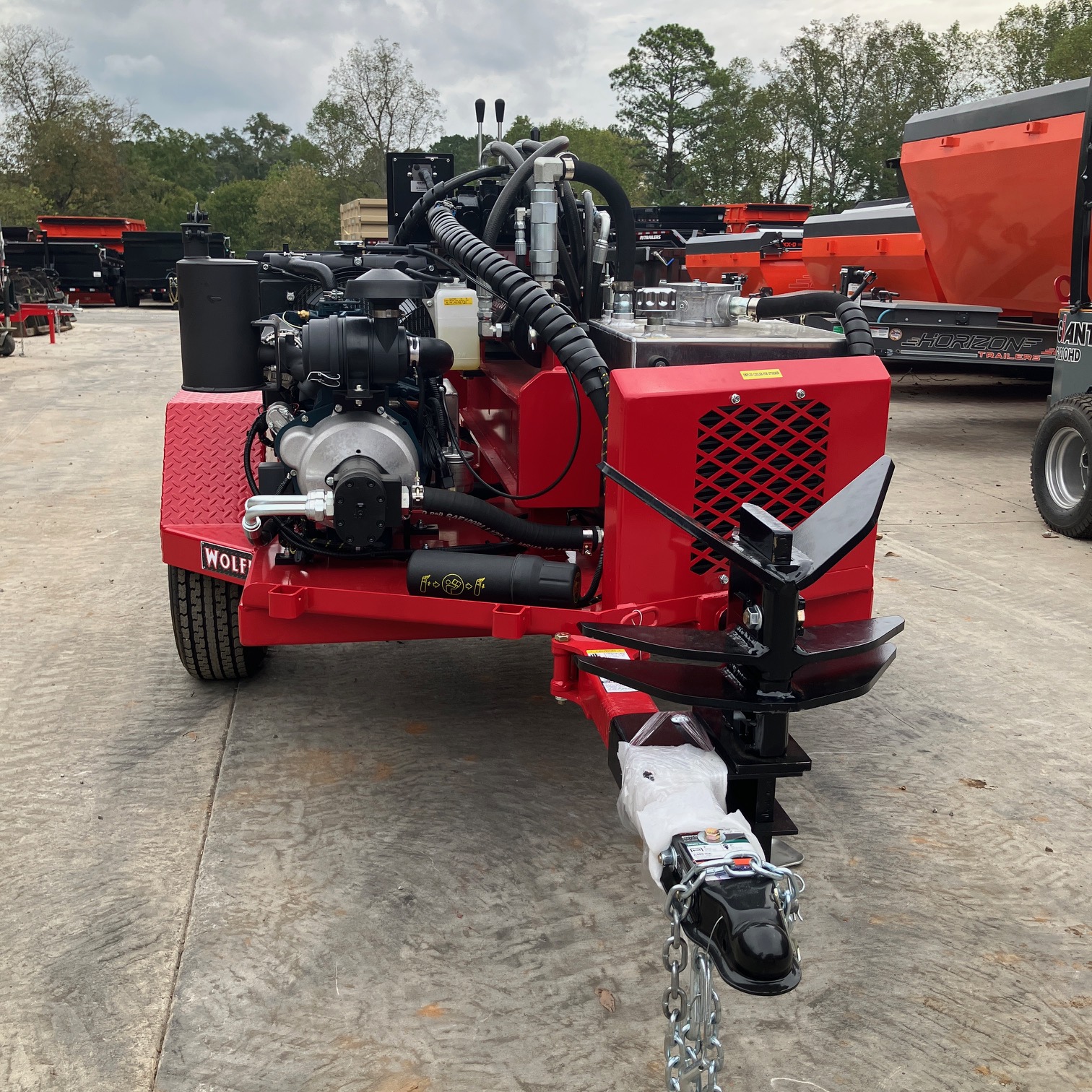

- Folding swing-away drawbar with 2 inch hitch ball coupler
- Storage for traditional wedges on draw bar (see photos)

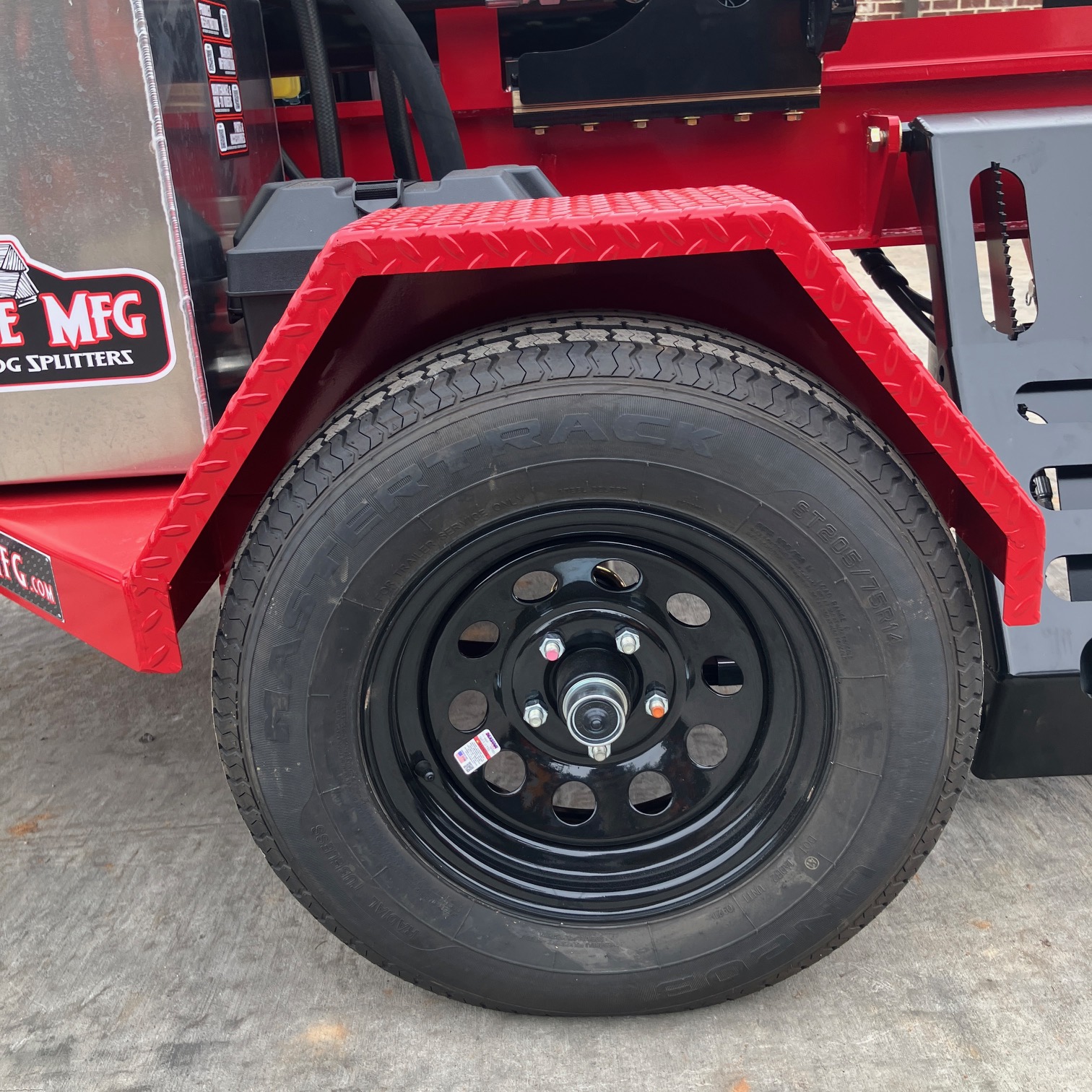

- 6″ x 14″ rims, 26″ radials, Dexter axle and spring suspension
- Heavy duty welded steel fenders
- 80 MPH max towing speed
- 69″ x 148″ overall size
- Weight: 2000 lb
Add Ons:
$500- 6 Way Wedge
$800- 12 Way Wedge
$300- Sorting Table Extension
