2019 Haulotte 45' Towable Lift - 4527A
Get in Touch
Dealer Notes

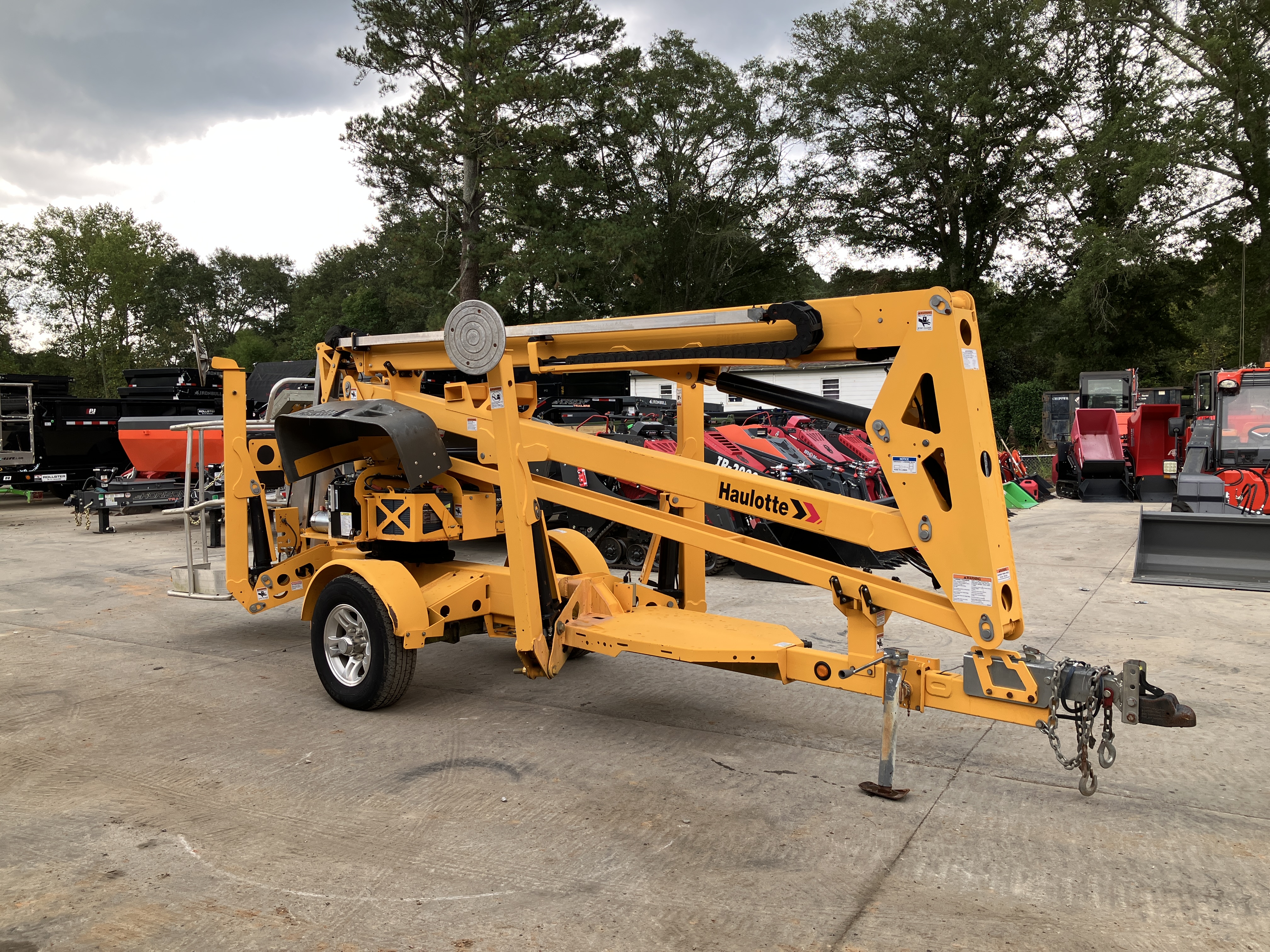

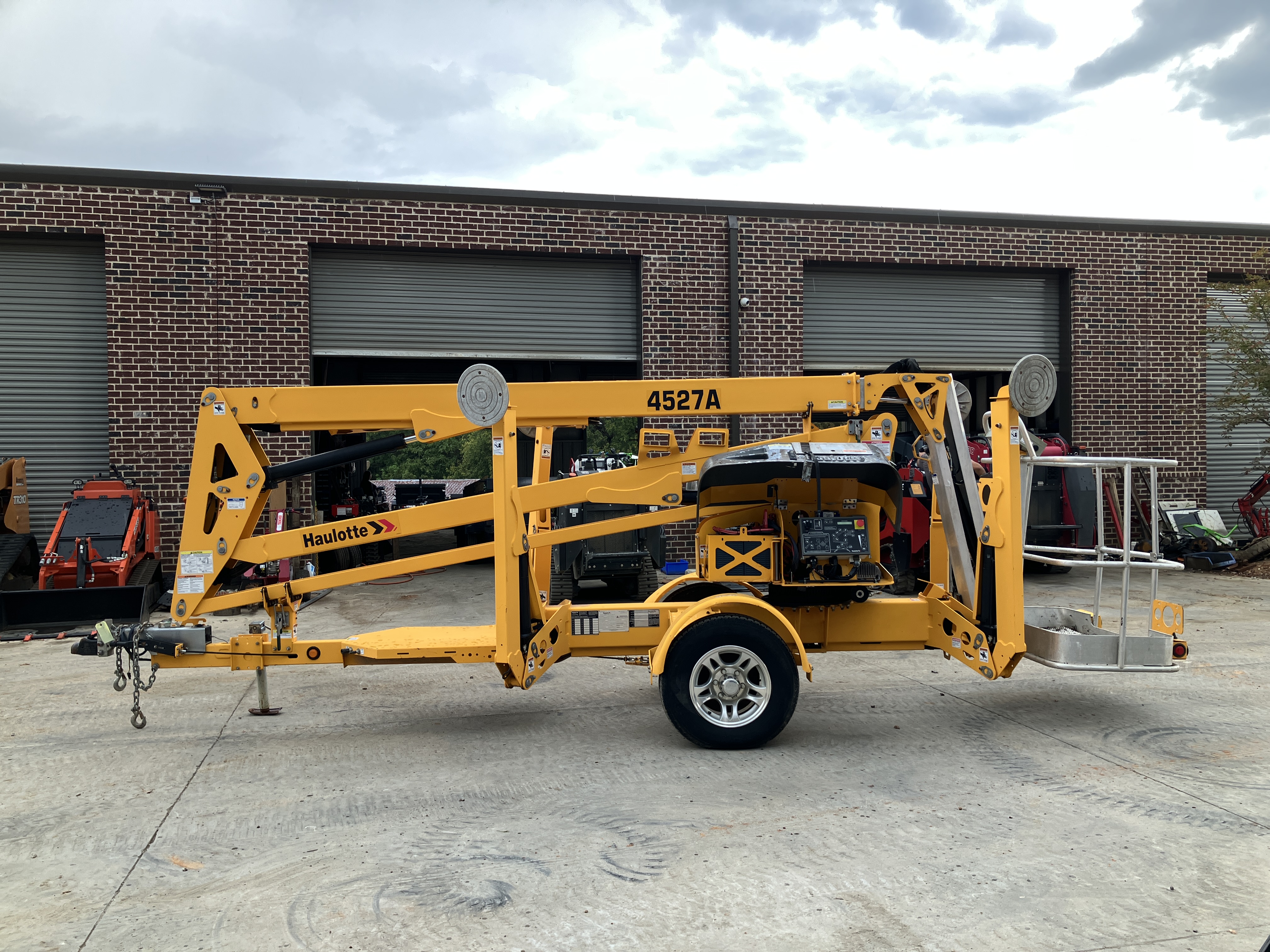

Used 2019 Haulotte Towable Electric Lift 4527A
103.7 Run Hours when listed. This unit is on our rental fleet so hours may go up.
New Batteries Installed September 2025.
Sold As-Is, no warranty
With a working height of 51 feet and useable both in and outdoors, the 4527 A is the most popular type of platform with skilled tradesmen and local communities. The compact and lightweight design makes them towable to any site, no CDL required. Hydraulic outriggers set-up in less than 30 sec for safe work on uneven ground.
| Working height | 51 ft |
| Platform height | 45 ft |
| Horizontal outreach (from centerline) | 27 ft |
| Horizontal outreach (from edge of footpad) | 21 ft |
| Up and over height | 20 ft 9 in |
| Lift capacity | 500 lb |
| Length - stowed | 20 ft 8 in |
| Width stowed | 5 ft 6 in |
| Height stowed | 6 ft 8 in |

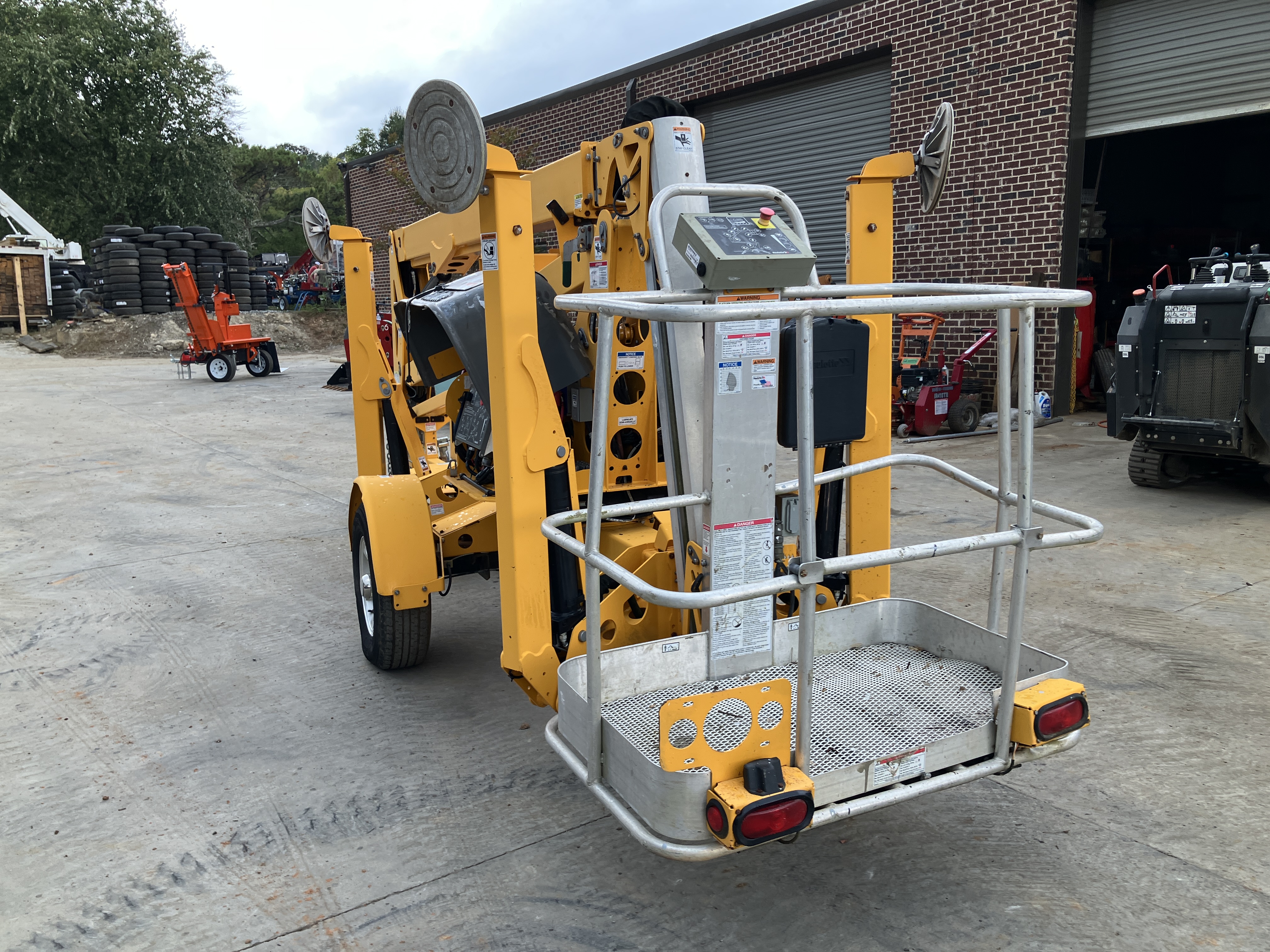

| Platform size | 4 ft 1 in x 2 ft 9 in |
| Widest Point | 13 ft 9 in |
| Turntable rotation | 350° non-continuous |
| Jib - length | 4 ft 3 in |
| Jib - Vertical Motion | 150° (+ 70 / - 80) |
| Tow speed rating | 65 mph |
| Leveling capability | 12.5 ° |

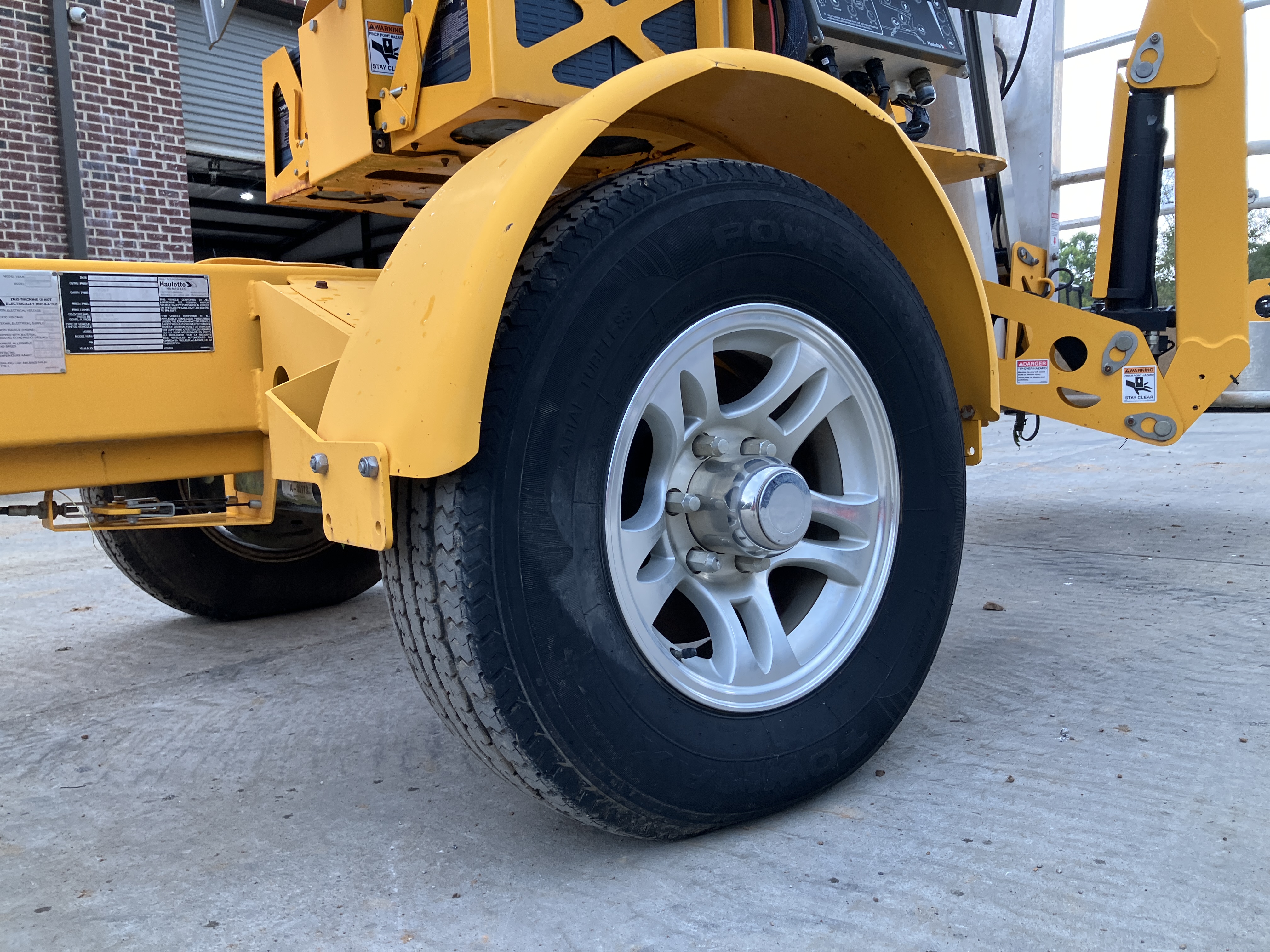

| Tire size | ST 225 / 75 R15 |
| Power source | 4 x 6 V 245 amp-hr |
| Tongue weight (no options) | 290 lb |
| Weight (no options) | 4,200 lb |
Info
Industry
Heavy Equipment
Make
Haulotte
Model
45' Towable Lift
Trim
Base
Year
2019
Price
24995
Stock Number
4527A
Category
Equip Lifts
Subcategory
Other
Condition
Rental
