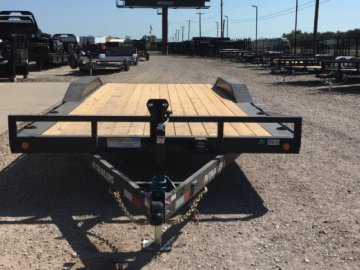

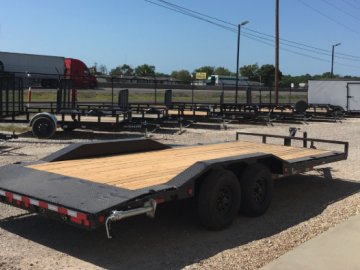

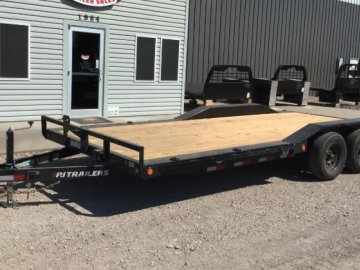

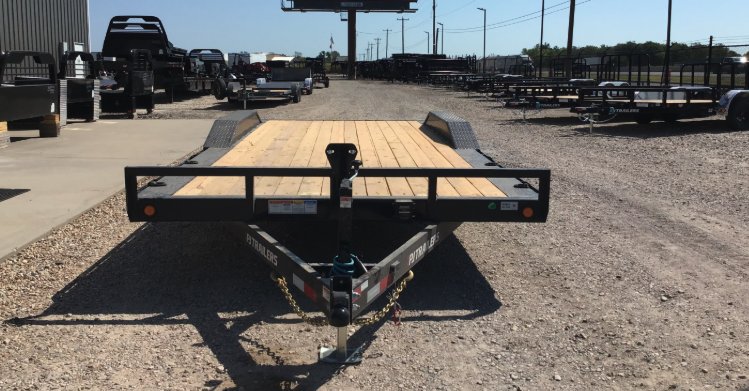

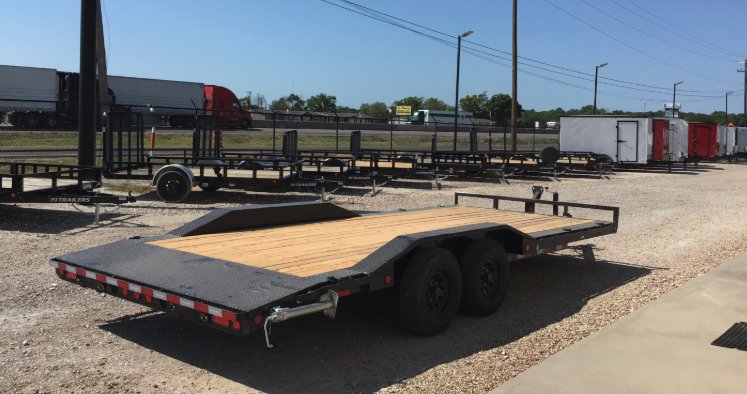

The PJ B5 8.5x20 Buggy Hauler is built for hauling cars, UTVs, side-by-sides, compact equipment, and other wide vehicles. Its full 102" wide deck and heavy-duty drive-over fenders give you substantially more usable width than a traditional car hauler, making it especially useful for wider machines and vehicles.

This unit is configured with a 2' dovetail and 5' rear slide-in ramps, providing a smoother loading angle while keeping the deck clear once the ramps are stored. PJ builds the B5 around a 5" channel frame and tongue, tandem 5,200 lb electric-brake axles, and 3" channel crossmembers spaced 16" on center.

Features:

• 8.5' x 20' / 102" Wide Deck
• 10,000 lb GVWR
• Approximately 2,500 lb Base Empty Weight
• Approximately 7,500 lb Base Payload Capacity
• Tandem 5,200 lb Electric-Brake Axles
• Forward Self-Adjusting Brakes
• 4-Leaf Double-Eye Spring Suspension
• 2' Dovetail

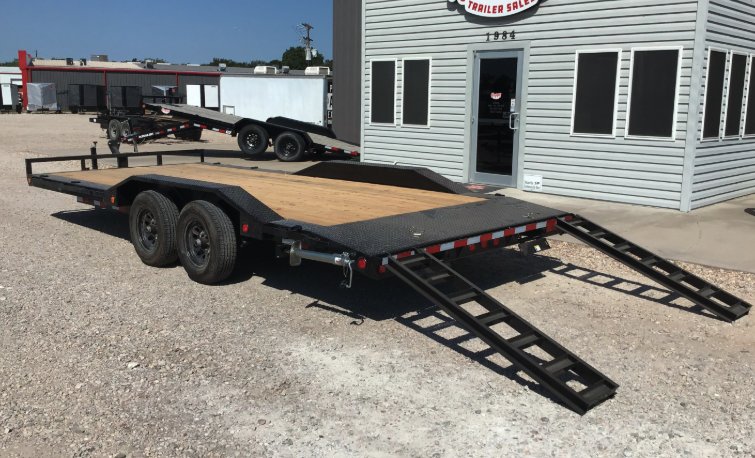

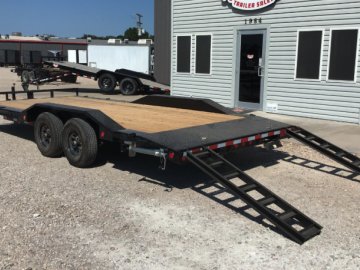

• 5' Rear Slide-In Channel Ramps

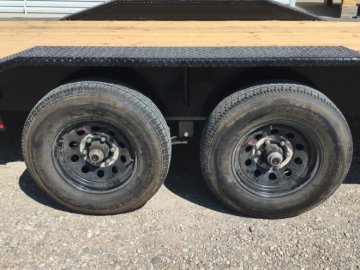

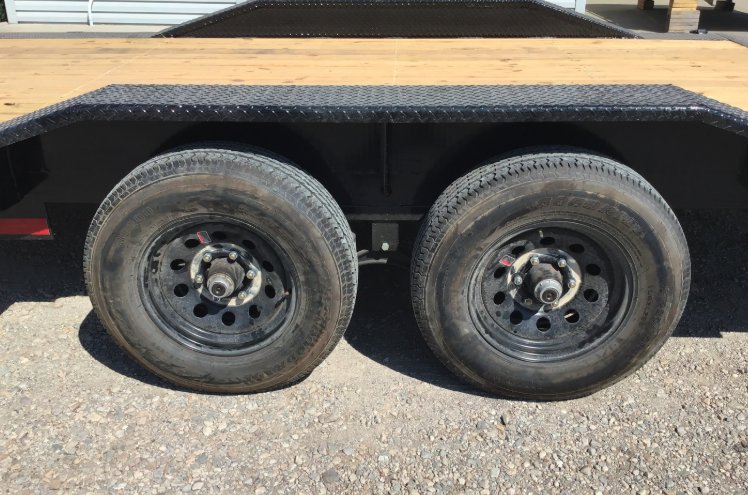

• 9" Drive-Over 1/4" Diamond-Plate Steel Fenders
• 5" Channel Main Frame
• 5" Channel Tongue
• 3" Channel Crossmembers on 16" Centers
• 2" Treated Pine Lumber Deck
• Adjustable 2-5/16" Demco EZ-Latch Coupler
• 8,000 lb Top-Wind Drop-Leg Jack
• Six Flush-Mount D-Rings
• Rub Rail
• Stake Pockets on 24" Centers
• Pipe Spools
• Front Bump Rail
• Rear Stabilizer Stands
• Spare-Tire Mount
• ST205/75R15 Radial Tires
• All-Weather 7-Way Wiring Harness
• Electric Breakaway System with Charger
• Primer + Powder-Coat Finish

Ideal For:

• UTVs & Side-by-Sides
• Cars & Trucks
• Jeeps & Off-Road Vehicles
• Compact Tractors
• Small Equipment
• Wide-Tire Vehicles
• Motorsports & Recreational Vehicles

The B5’s combination of a full 102" deck, drive-over fenders, 2' dovetail, and slide-in ramps makes it an especially versatile setup when you need to haul equipment or vehicles that won't comfortably fit between conventional trailer fenders.
