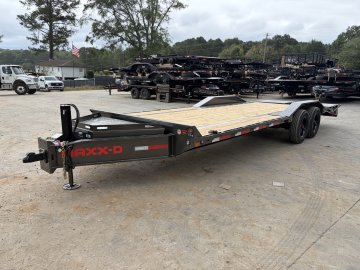

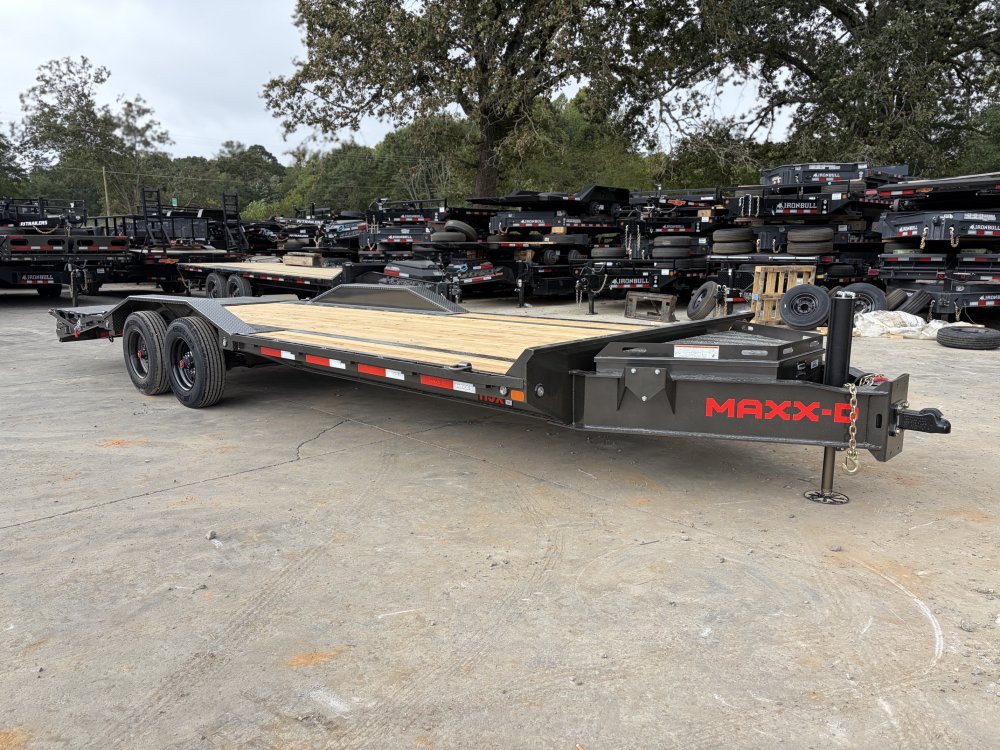

The MAXX-D H9X 8.5x24 Heavy-Duty Equipment Hauler is built for contractors, equipment operators, farmers, and commercial haulers who need serious capacity with a full 102" wide deck. Rated at 22,000 lb GVWR, this trailer is equipped with tandem 10,000 lb electric-brake axles, straight torsion suspension, and heavy-duty 17.5" tires for demanding equipment-hauling applications.

The H9X uses an engineered I-beam frame with torque tube, 3" I-beam crossmembers on 12" centers, and a 5" channel outer frame for a strong, rigid platform. MAXX-D’s H9X spec sheet confirms the 24' x 102" configuration, 22K GVWR, 10K axle package, engineered frame, drive-over fenders, and 5' dovetail options.

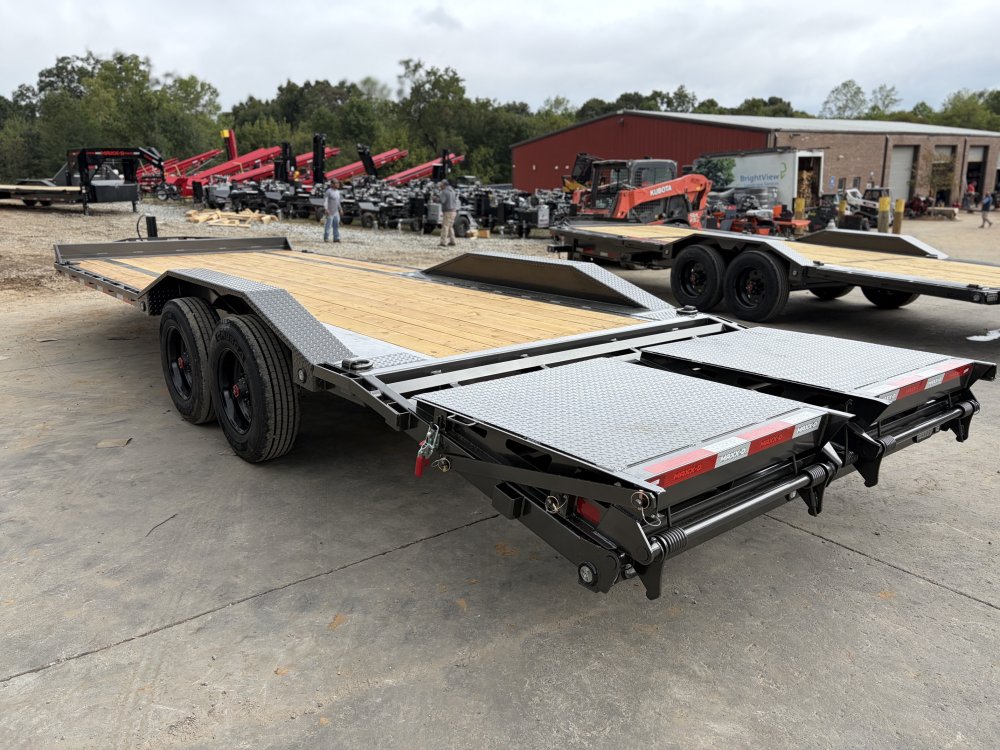

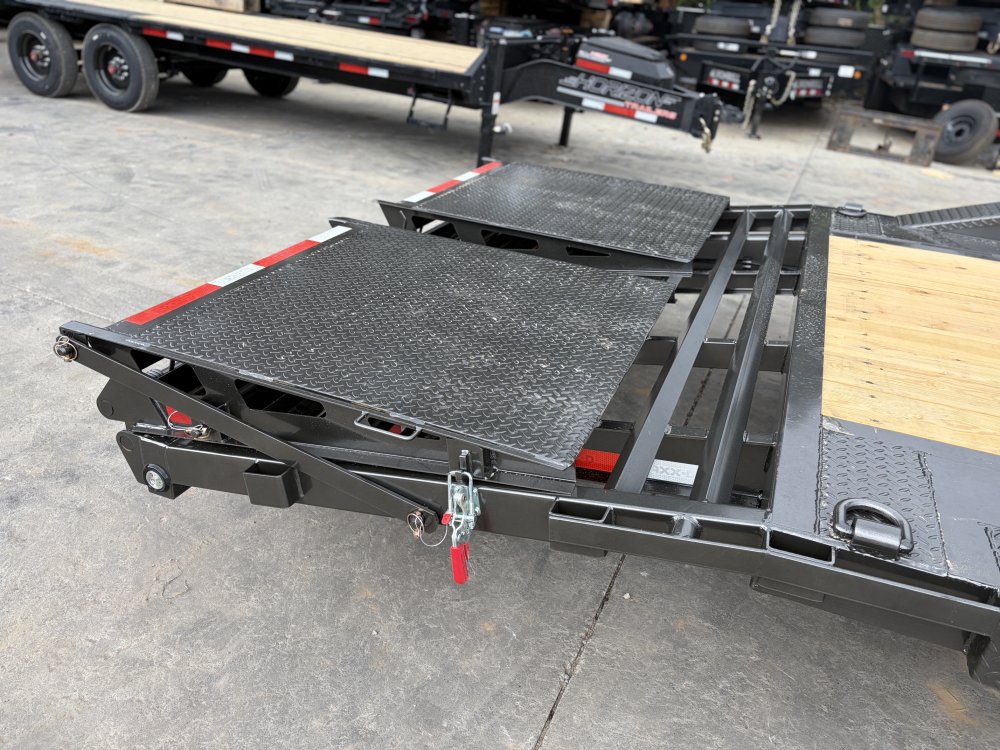

This unit features a 5' dovetail with Mini MAXX-D ramps, making it easier to load skid steers, mini excavators, tractors, trucks, and other heavy equipment. The tandem drive-over fenders allow wider machines to use the full deck width, while the upgraded hydraulic jack makes hooking and unhooking significantly easier.

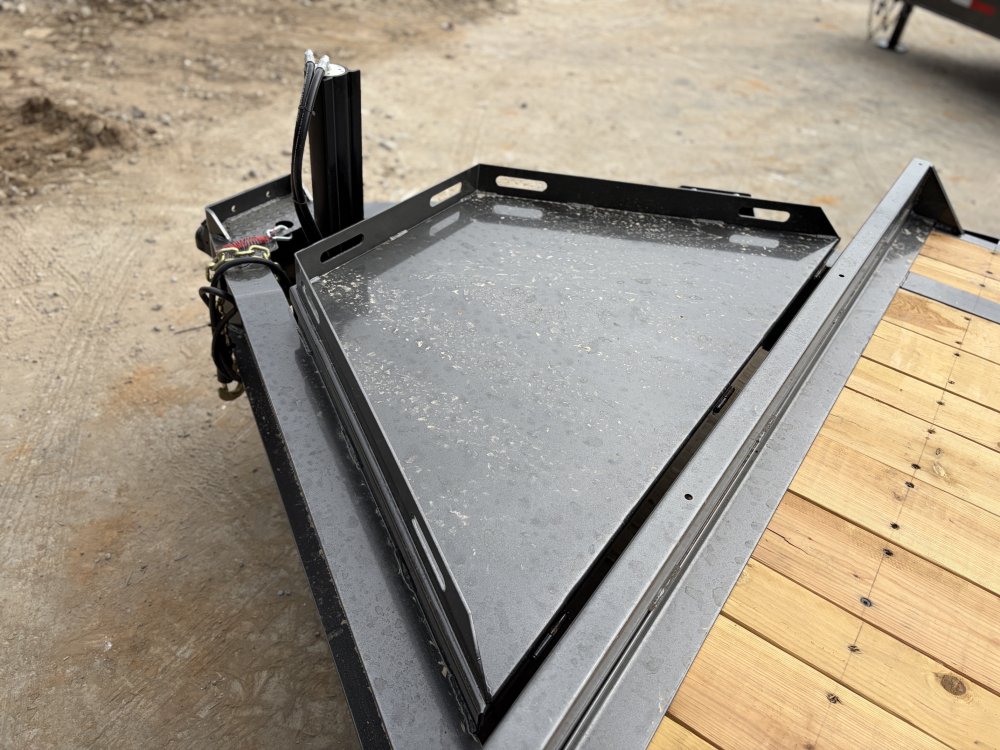

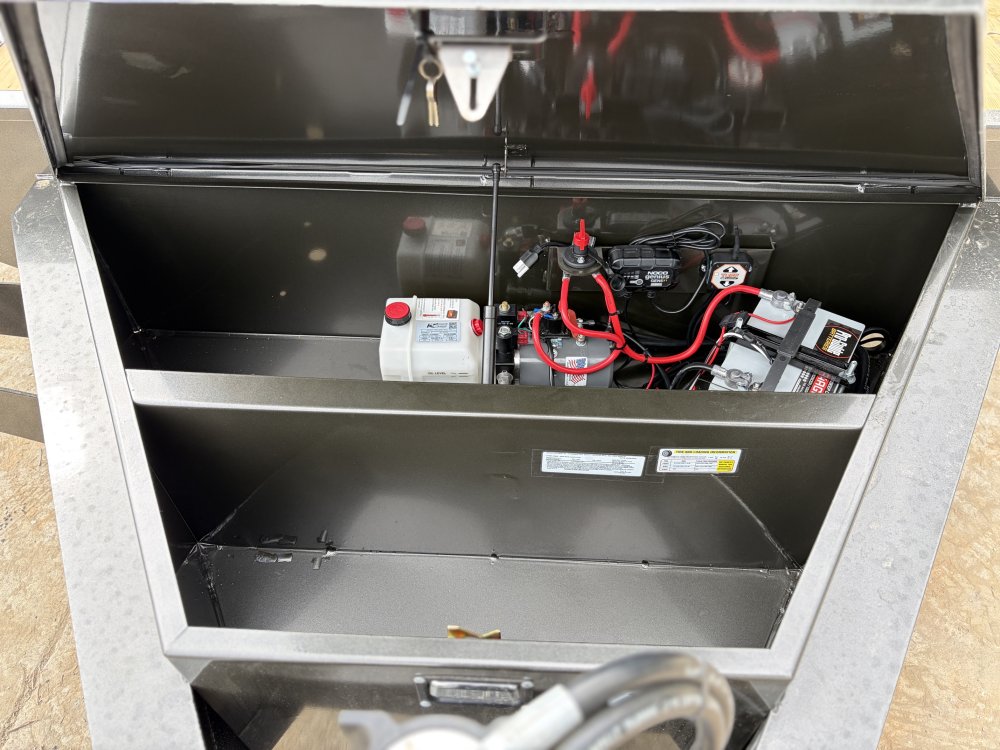

Up front, the engineered tongue includes a large integrated toolbox for secure storage. The TUFF wireless remote controls the hydraulic and power functions, and the NOCO charging system helps keep the battery maintained and ready for use.

Features:

• 8.5' x 24' / 102" Wide Equipment Hauler
• 22,000 lb GVWR
• Tandem 10,000 lb Electric-Brake Axles
• Straight Torsion-Spring Suspension
• ST235/75R17.5 Heavy-Duty Tires
• 17.5" Wheels

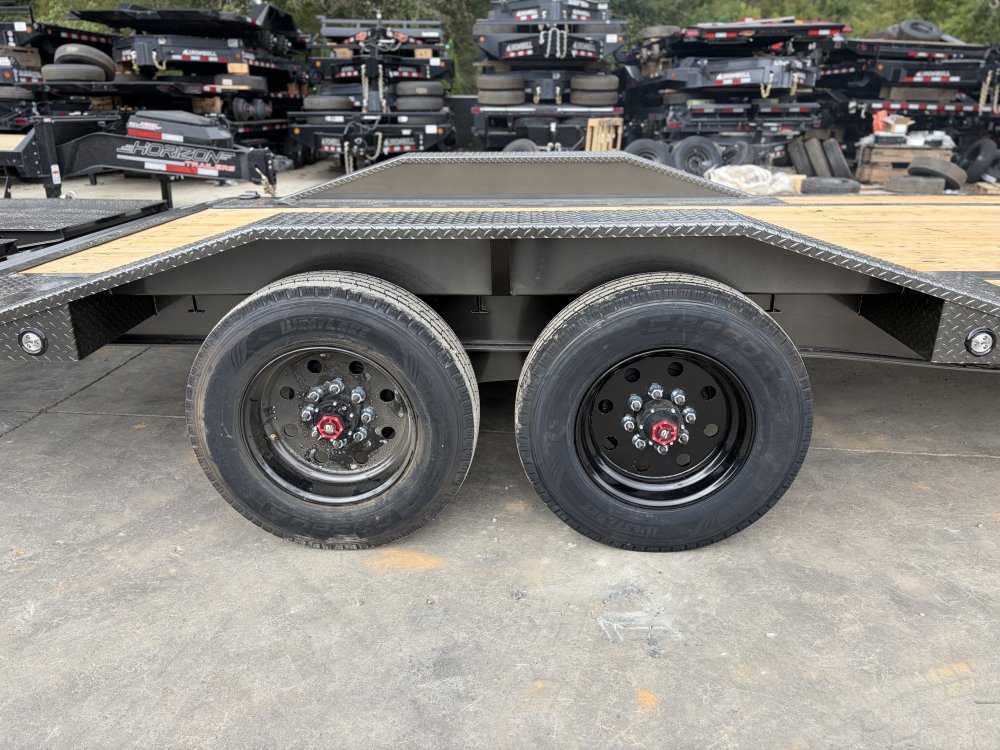

• Tandem Drive-Over Fenders
• Engineered I-Beam Main Frame with Torque Tube
• 3" I-Beam Crossmembers on 12" Centers
• 5" Channel Outer Frame
• Engineered Tongue with Integrated Toolbox

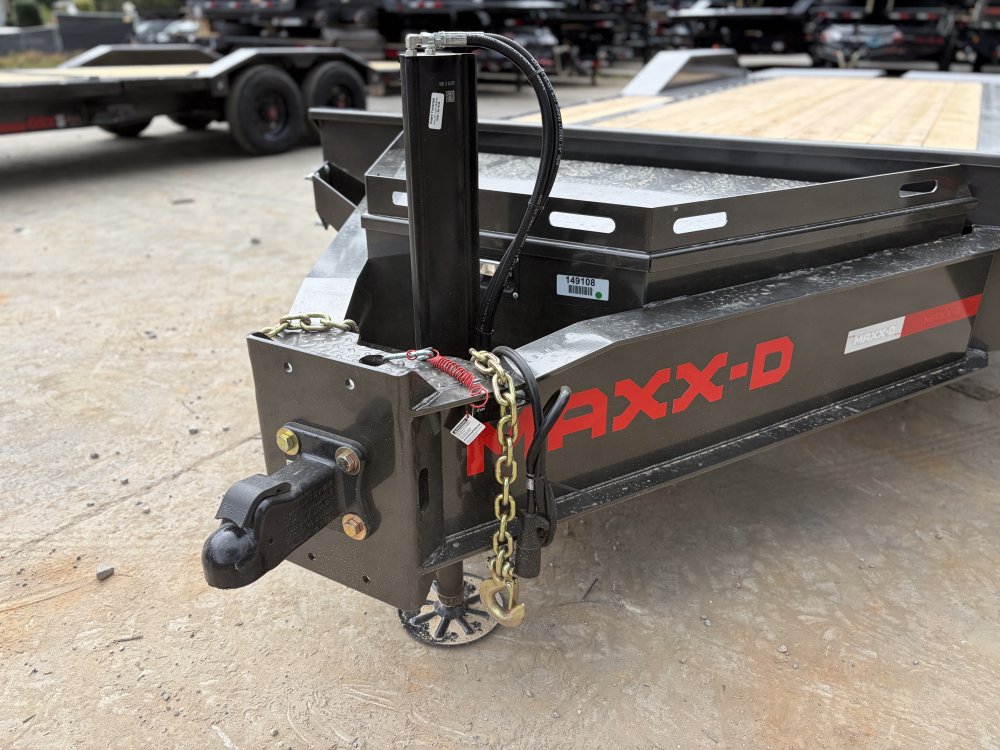

• 2-5/16" Plate-Mount Adjustable Coupler
• Hydraulic Jack

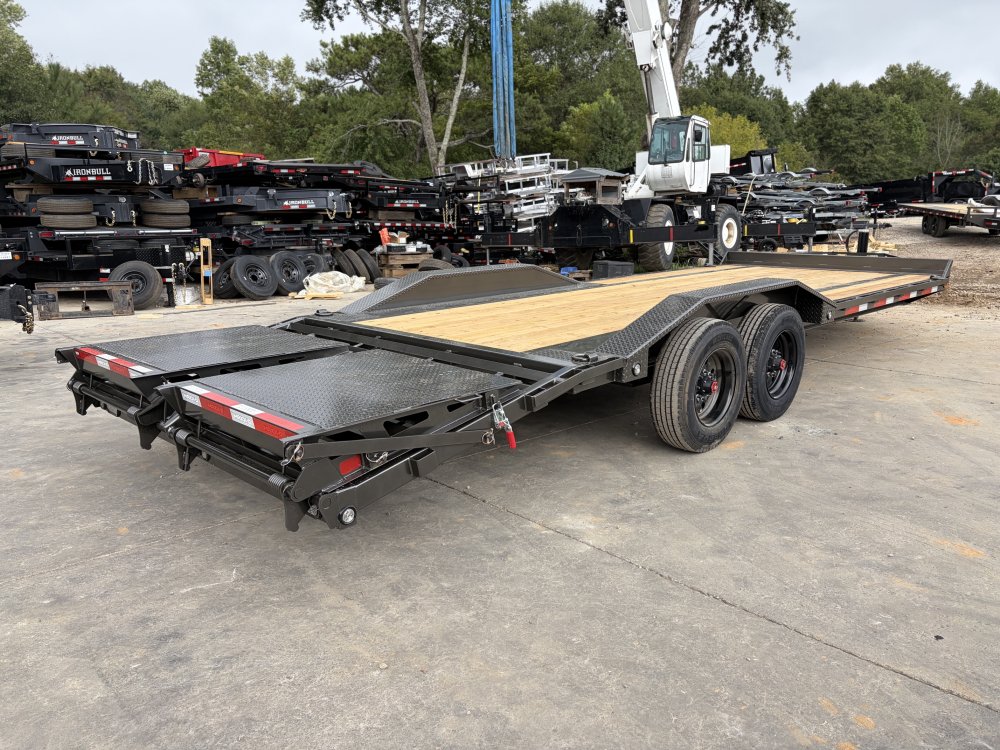

• 5' Dovetail

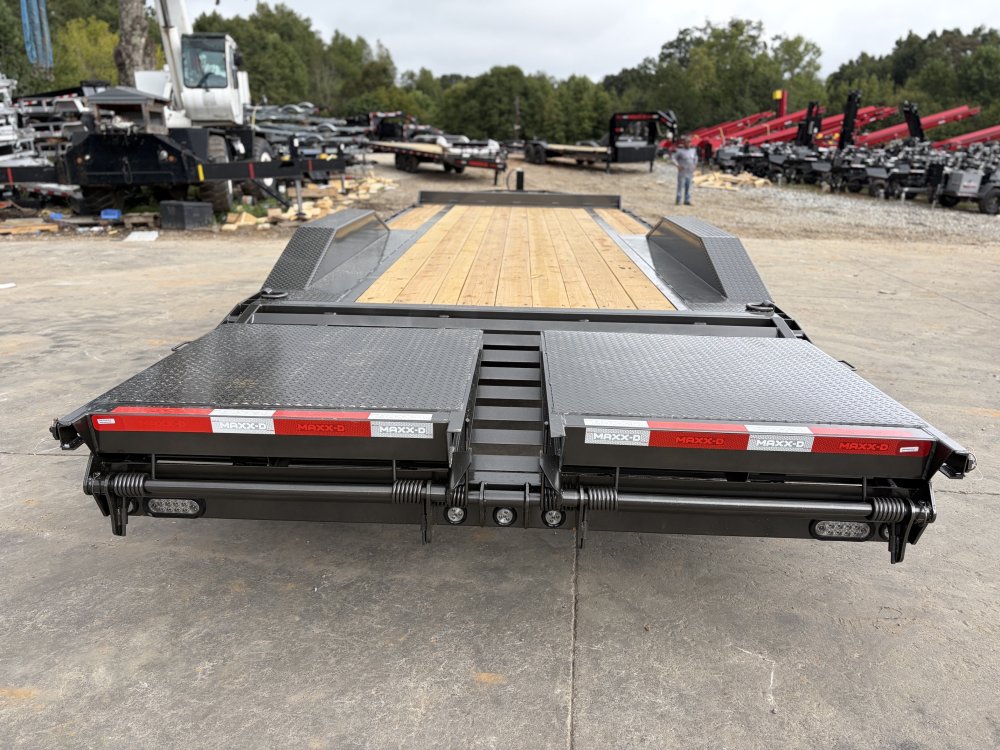

• Mini MAXX-D Loading Ramps
• 2" x 8" Treated Wood Floor
• Flush-Mount LED Lighting
• Standard Sealed Wiring Harness
• TUFF Wireless Hydraulic & Power Remote
• NOCO Battery Charging System
• Spare-Tire Mount
• MAXX-D Gray Metallic over Primer

Ideal For:

• Skid Steers
• Compact Track Loaders
• Mini Excavators
• Tractors
• Trucks & Wide Vehicles
• Construction Equipment
• Agricultural Equipment
• Commercial Equipment Hauling

The H9X combines 22K capacity, dual 10K axles, a reinforced engineered frame, hydraulic jack, drive-over fenders, Mini MAXX-D ramps, and an integrated toolbox into a premium heavy-equipment hauling package.
