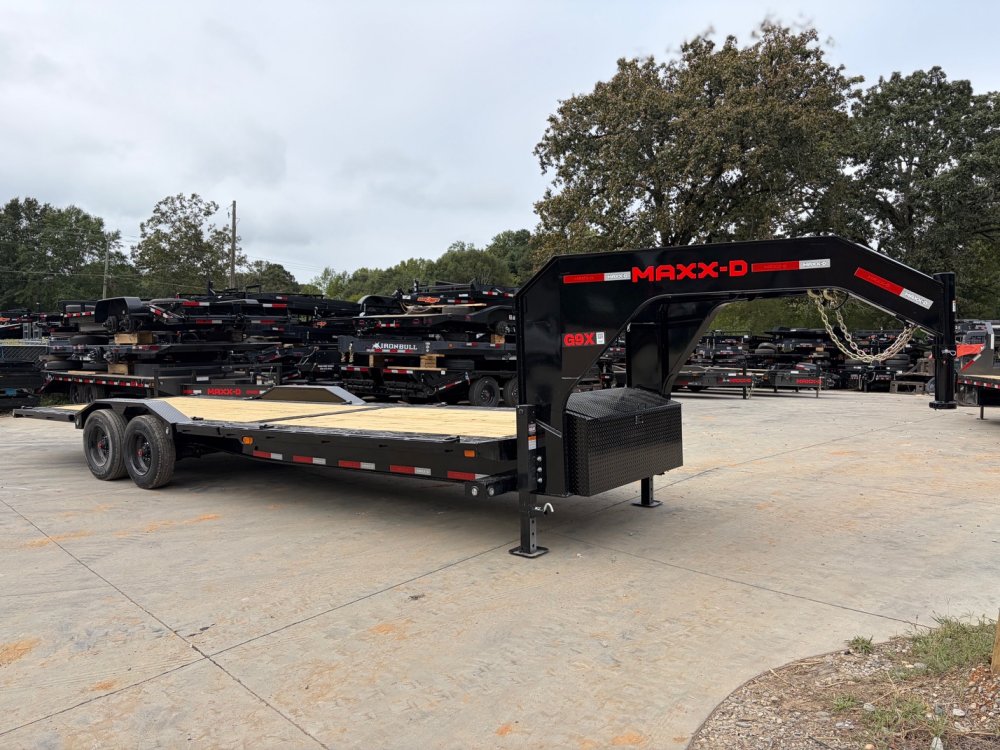

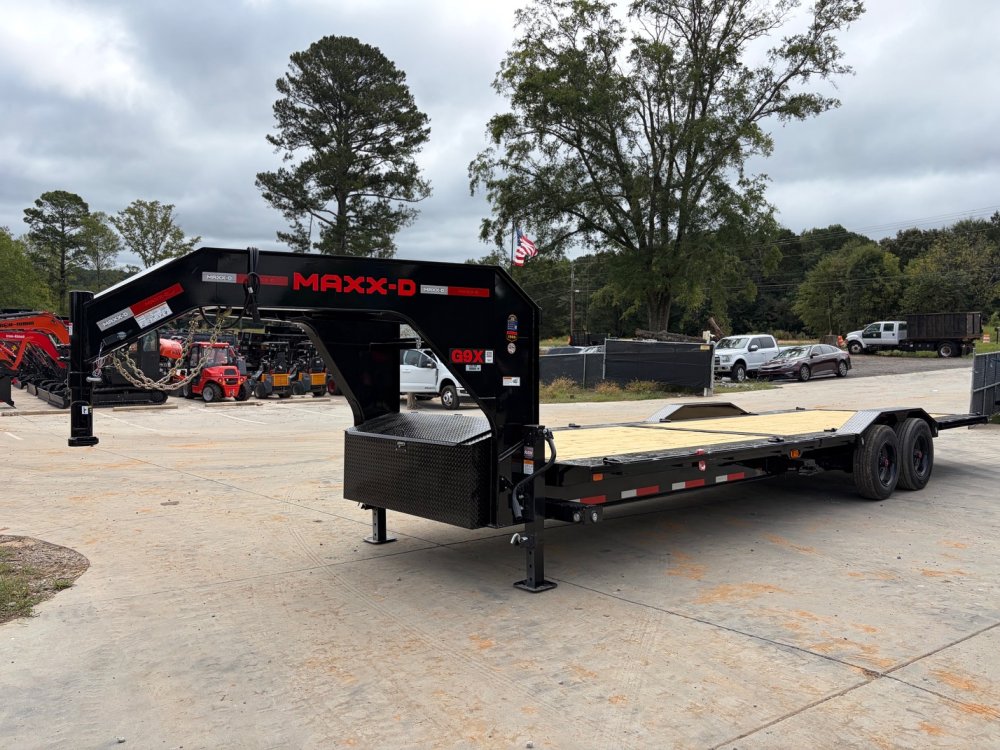

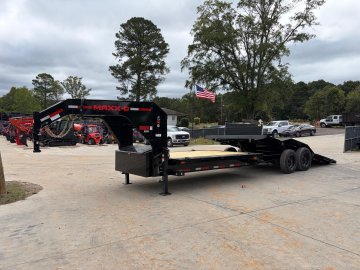

The MAXX-D G9X 8.5x26 Gooseneck Gravity Tilt Equipment Trailer is built for serious commercial equipment hauling. With a 21,000 lb GVWR, tandem 10,000 lb electric-brake axles, heavy-duty torsion suspension, and a full 102" wide deck, this trailer is designed for skid steers, compact track loaders, mini excavators, tractors, trucks, and other heavy equipment.

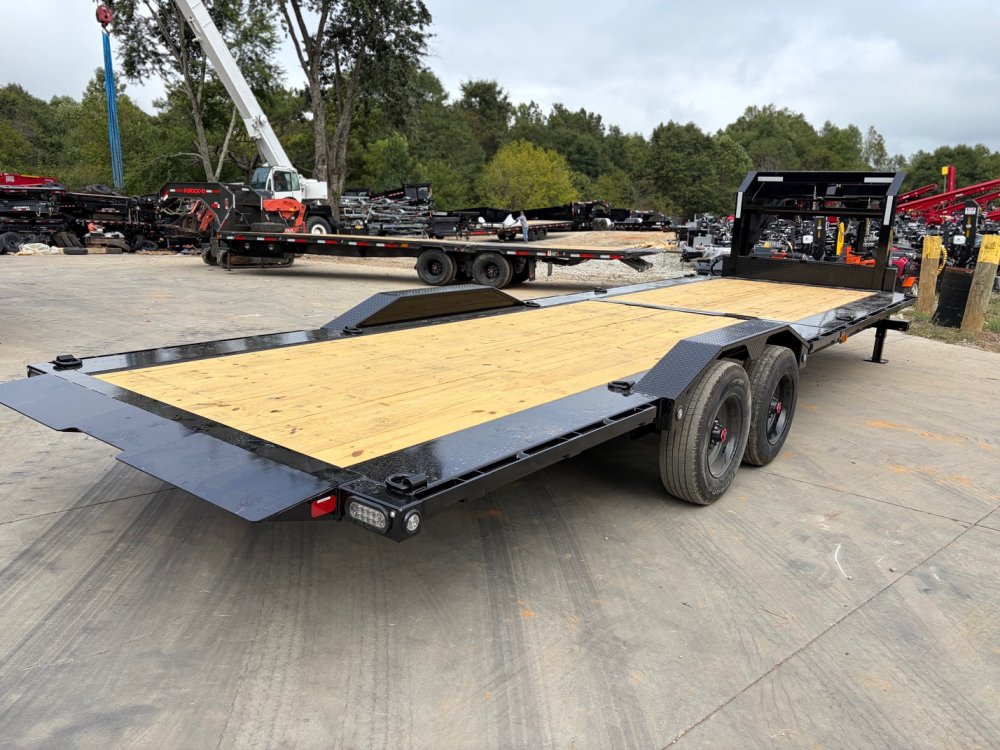

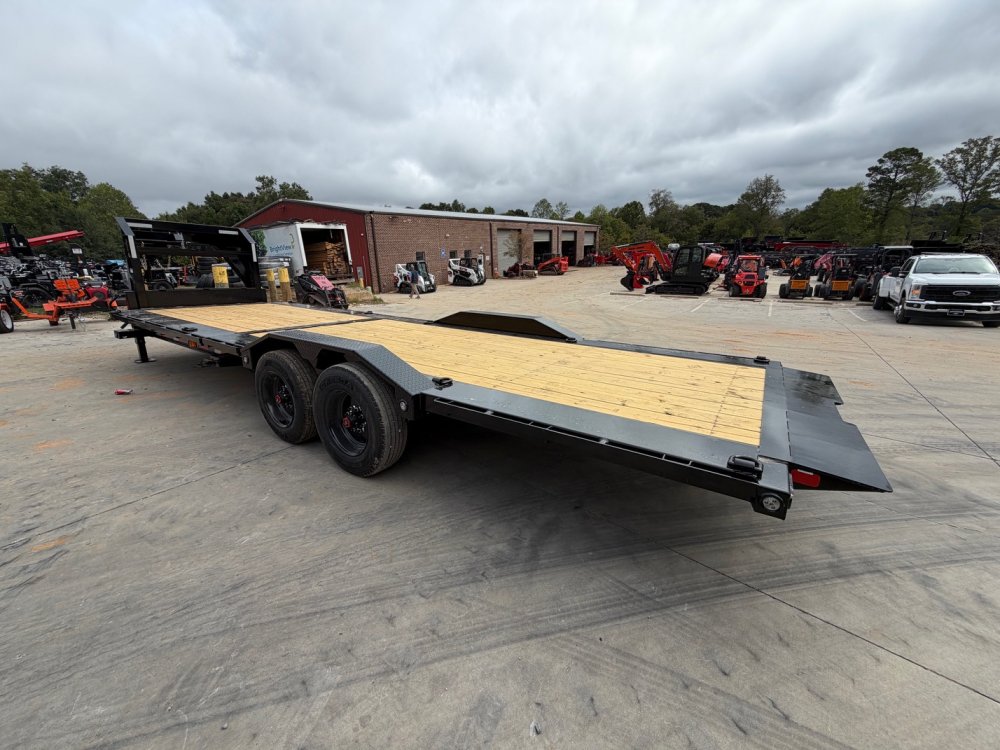

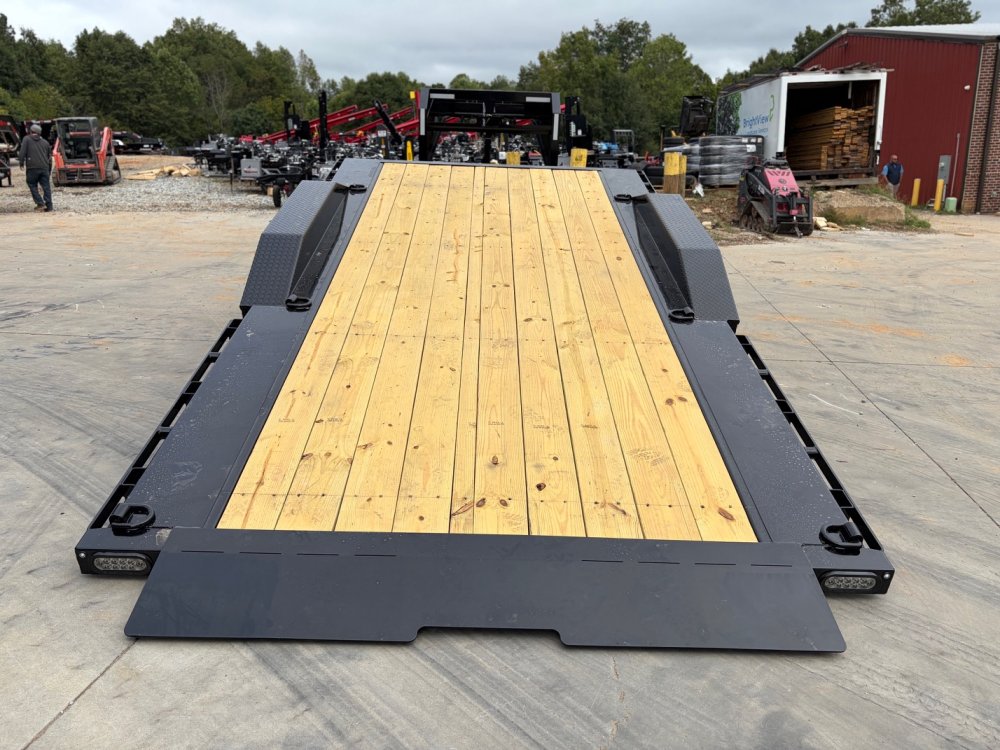

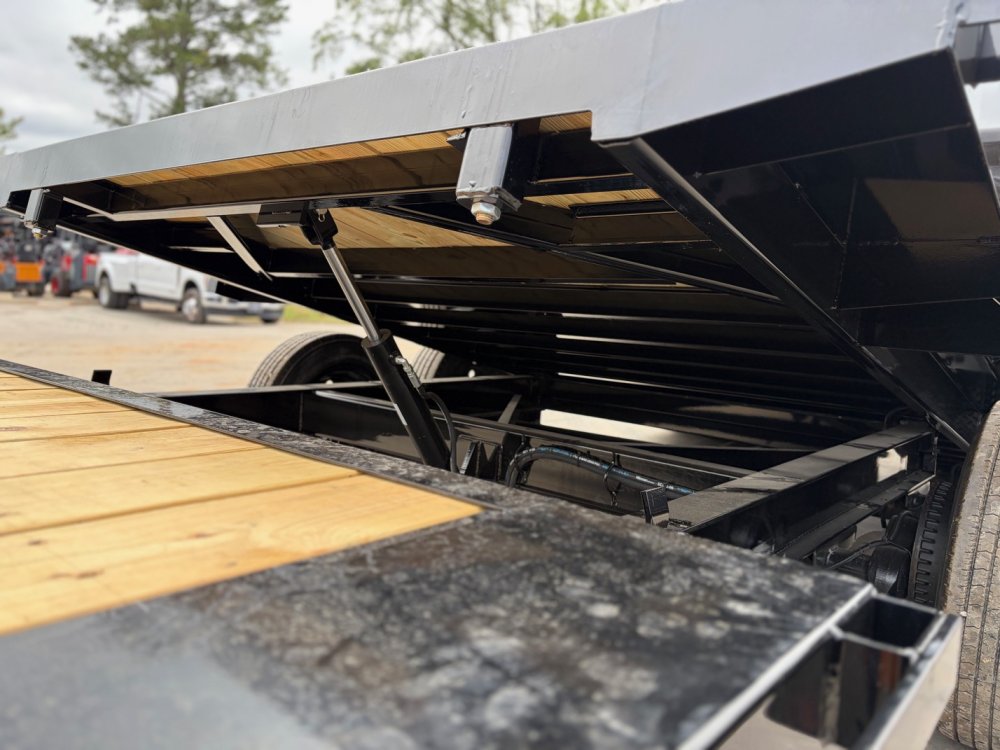

This 26' configuration features a 10' stationary front deck and 16' gravity tilt section with a knife-edge rear, giving you room for attachments and additional cargo up front while eliminating the need for separate loading ramps. Current G9X configurations use MAXX-D's engineered I-beam construction, closely spaced I-beam crossmembers, torsion suspension, and drive-over fenders for wide equipment.

The gooseneck is equipped with a 30K 2-5/16" round coupler, dual 10K drop-leg jacks, a large front toolbox, integrated winch plate, and spare-tire mount. The engineered frame uses 3" I-beam crossmembers on 12" centers, providing a stout foundation for demanding commercial use.

Heavy-duty ST235/75R17.5 radial tires provide the running gear needed for high-capacity hauling. Current 21K G9X builds list these tires as Load Range J / 18-ply, paired with tandem 10K axles and 22.5°-up torsion suspension.

Features:

• 8.5' x 26' / 102" Wide Equipment Tilt Trailer
• 21,000 lb GVWR
• Gooseneck Configuration
• 10' Stationary Front Deck

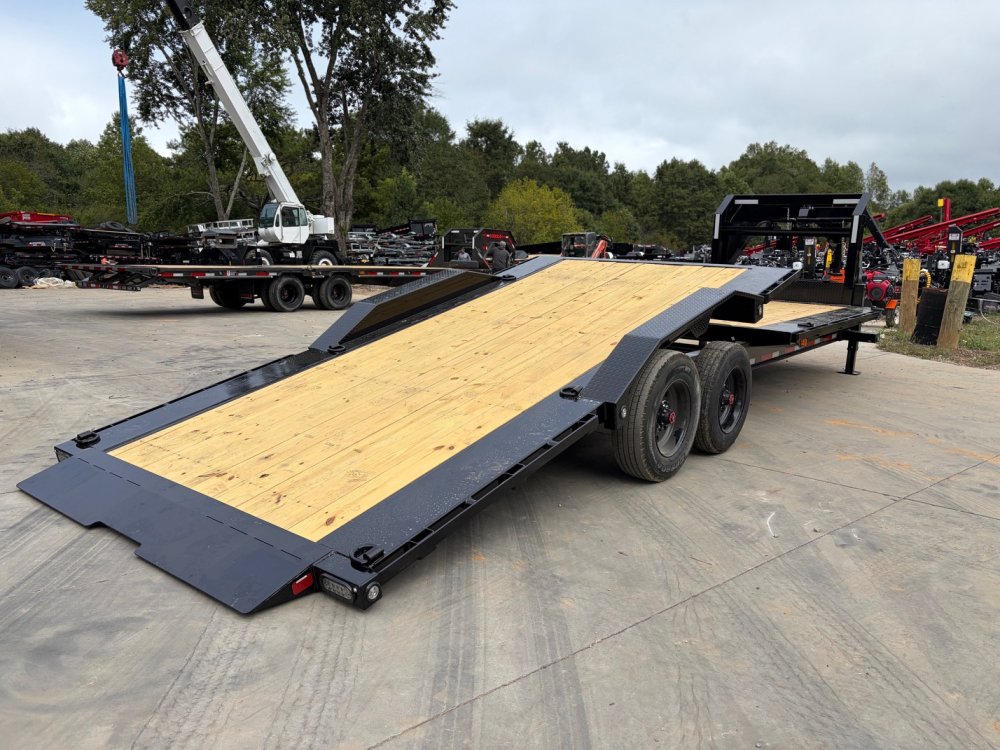

• 16' Gravity Tilt Deck

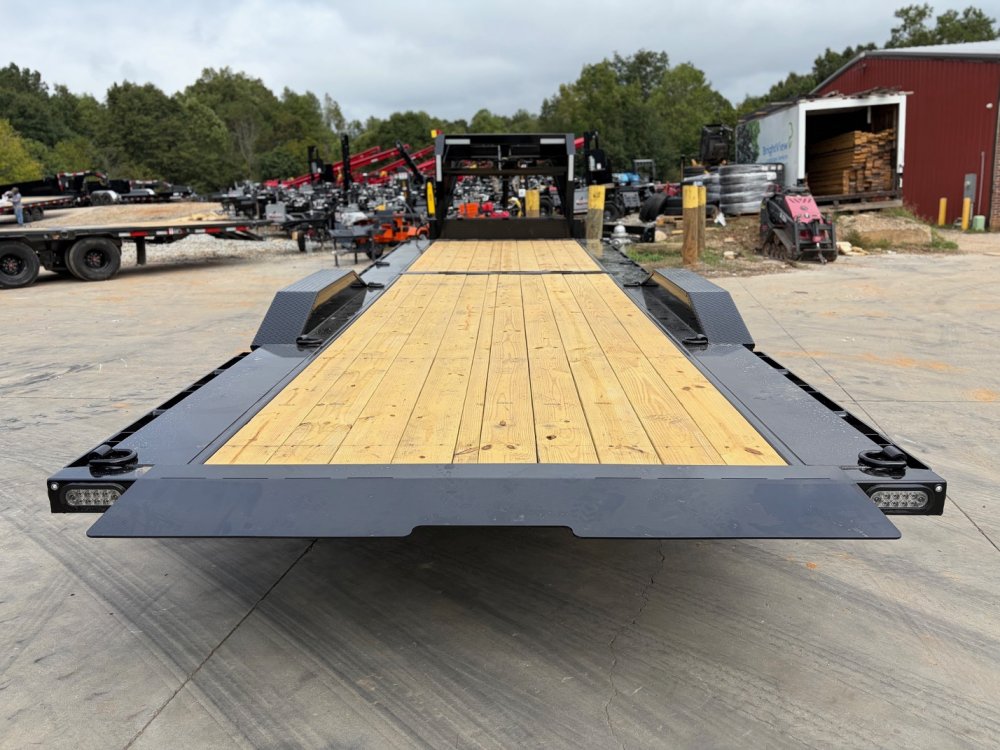

• Knife-Edge Rear
• Tandem 10,000 lb Electric-Brake Axles
• Torsion Suspension – 22.5° Up
• ST235/75R17.5 Load Range J / 18-Ply Tires
• Four Running Tires + Full-Size Spare

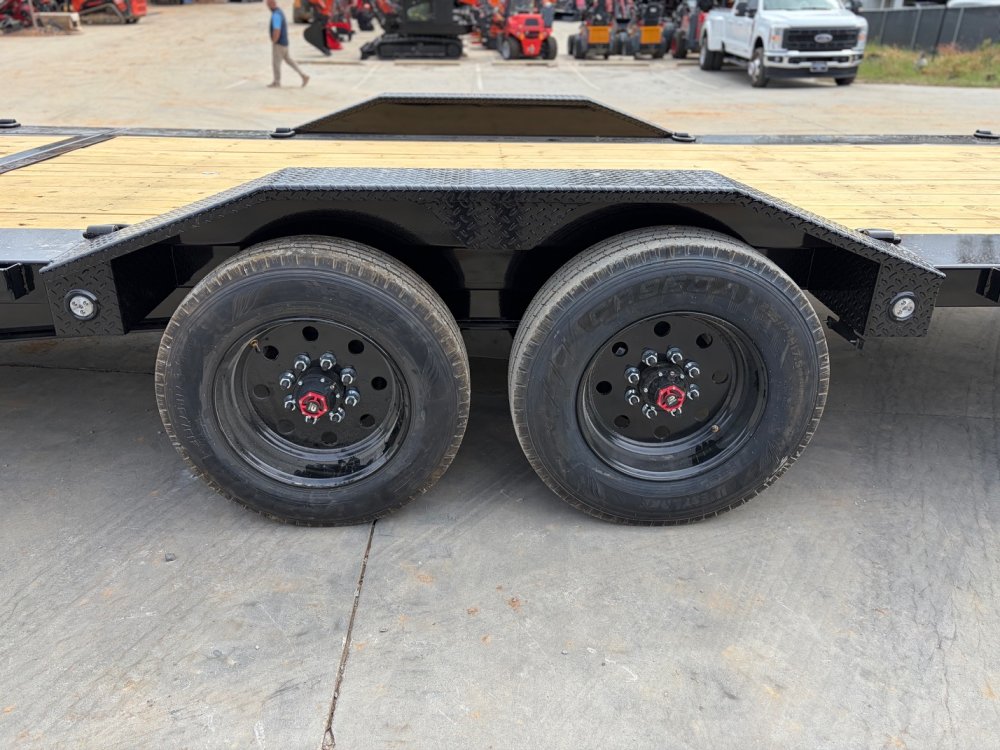

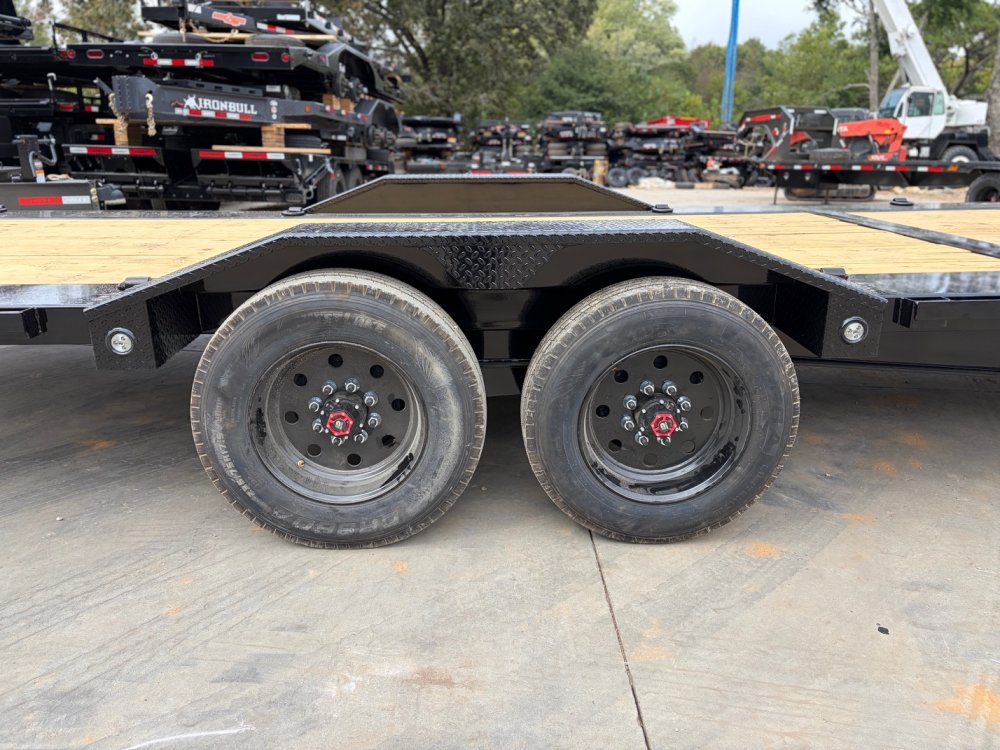

• Drive-Over Fenders
• Engineered I-Beam Main Frame
• 3" I-Beam Crossmembers on 12" Centers
• Stake Pockets
• Rub Rail
• Pipe Spools
• Four Extra 3/4" Bull-Nose D-Rings

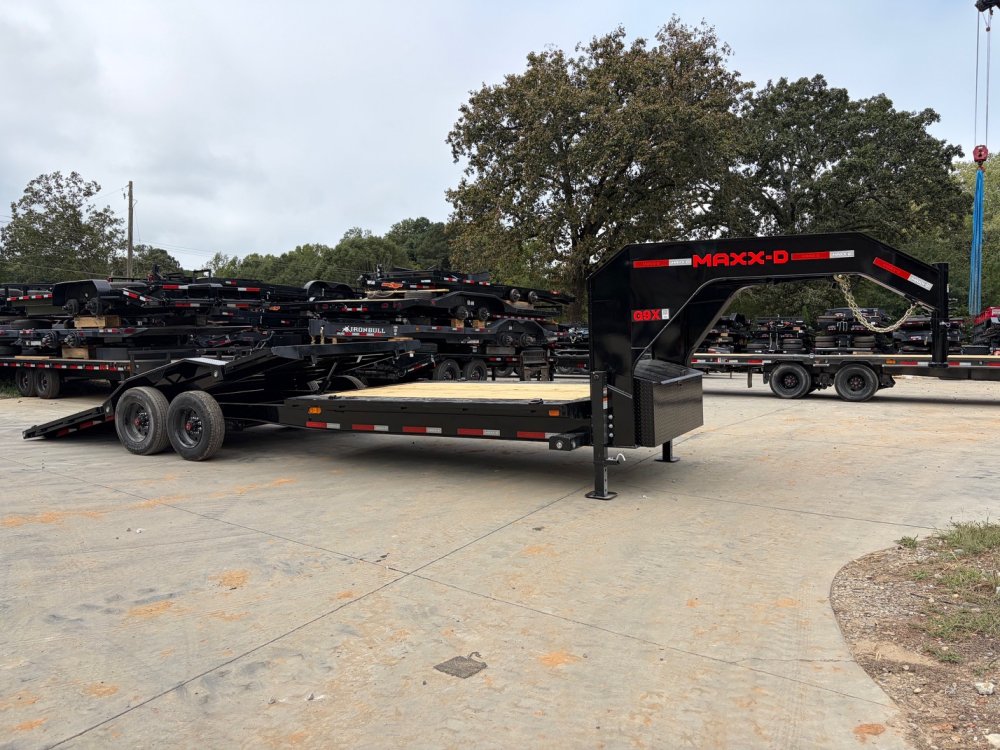

• Standard-Height Engineered Gooseneck

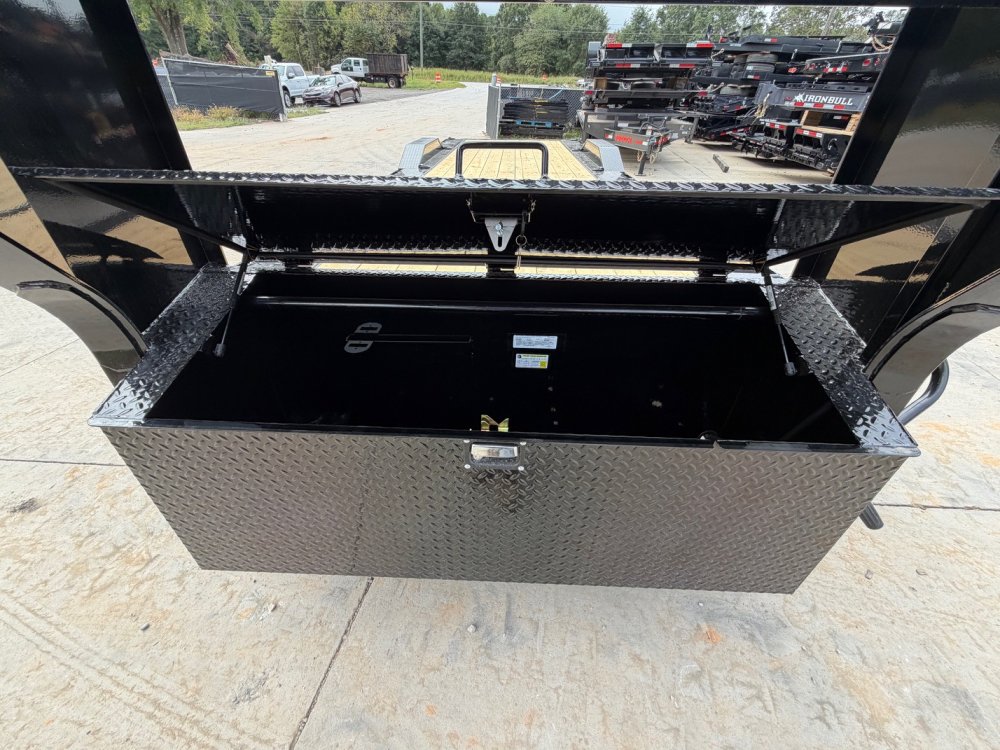

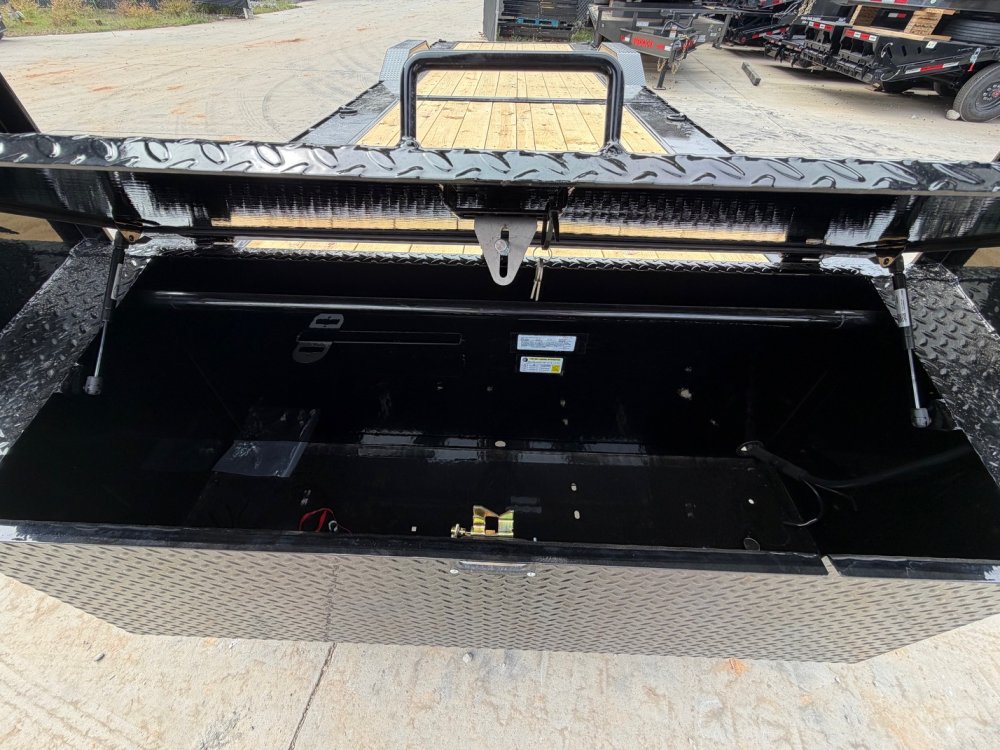

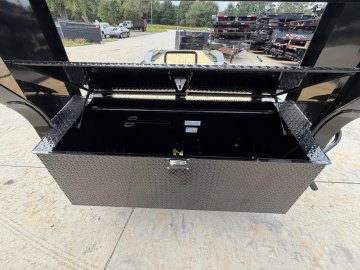

• Large Front Toolbox

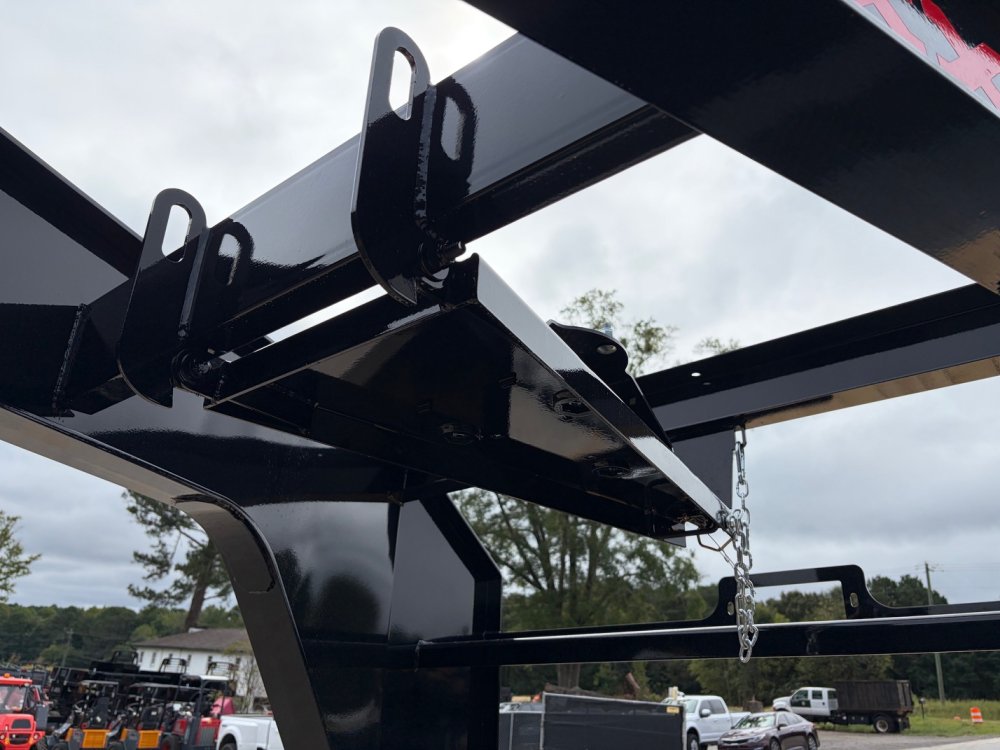

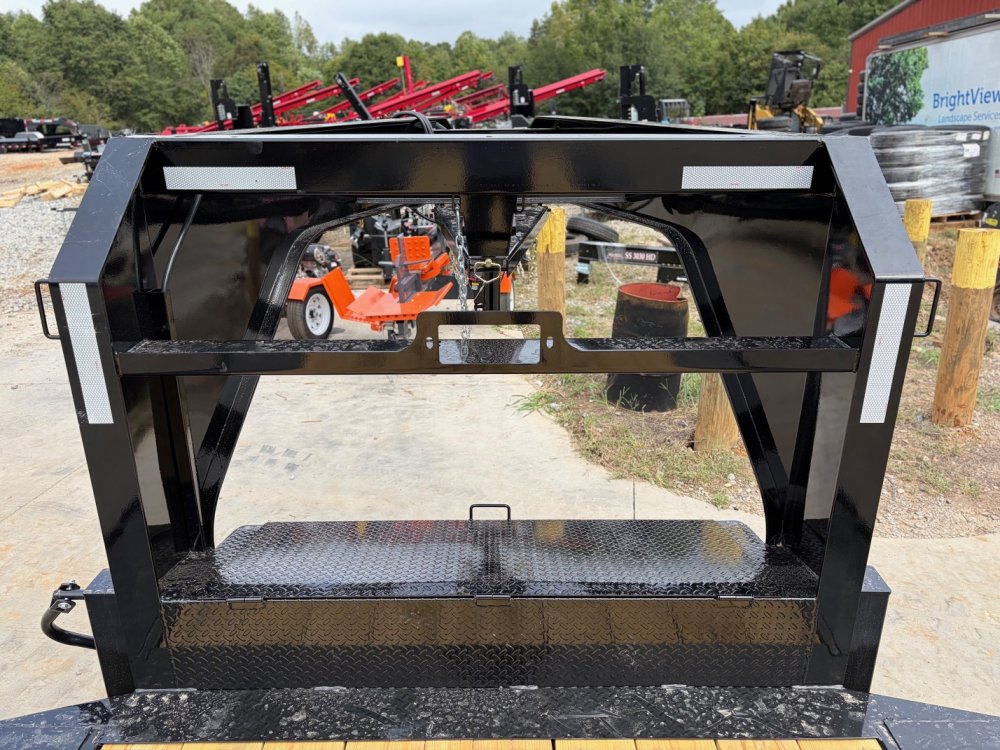

• Integrated Heavy-Duty Winch Plate
• 30K 2-5/16" Round Gooseneck Coupler
• Dual 10,000 lb Drop-Leg Jacks

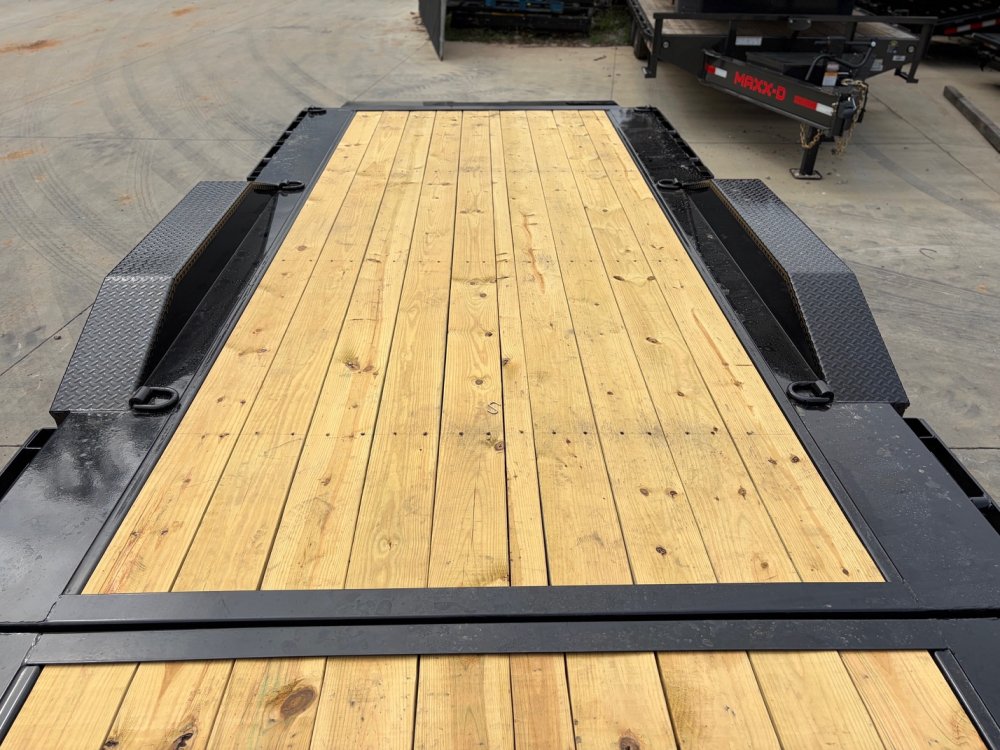

• 2" x 8" Treated Wood Floor
• Flush-Mount LED Lighting
• Standard Sealed Wiring Harness
• Spare Tire & Mount
• Wet Black Finish over Primer

Ideal For:

• Skid Steers
• Compact Track Loaders
• Mini Excavators
• Tractors
• Trucks & Wide Vehicles
• Construction Equipment
• Agricultural Equipment
• Commercial & Rental-Fleet Hauling

The G9X combines a 21K rating, dual 10K axles, 17.5" 18-ply tires, drive-over fenders, engineered I-beam construction, and a 16' gravity tilt deck into a heavy-duty package designed to make loading large equipment fast and simple.
