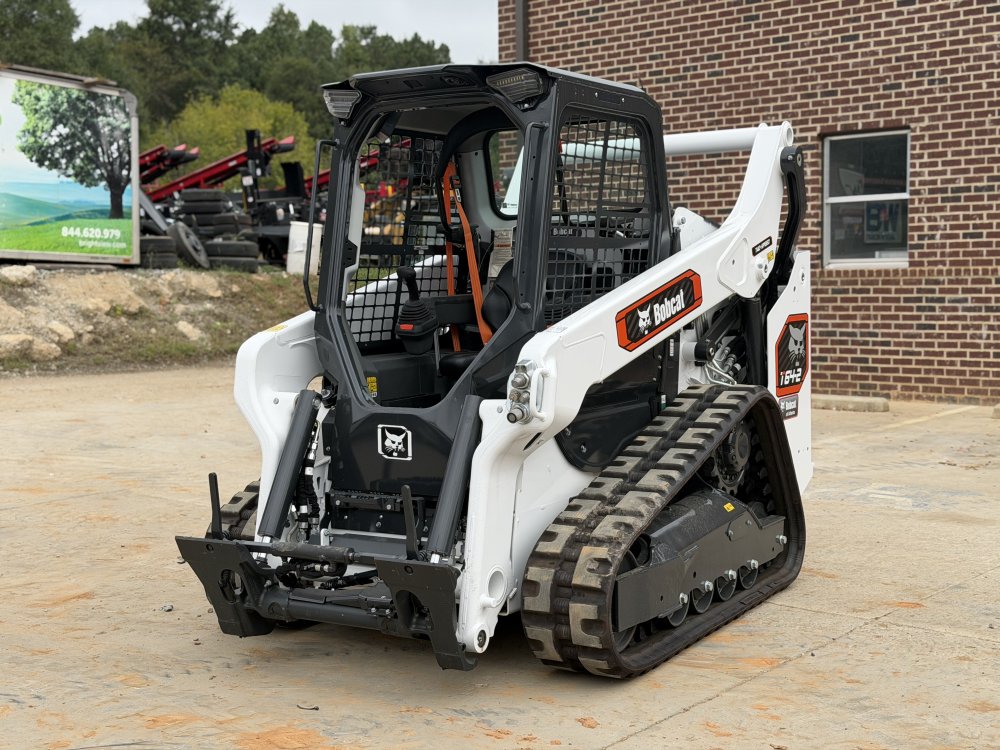

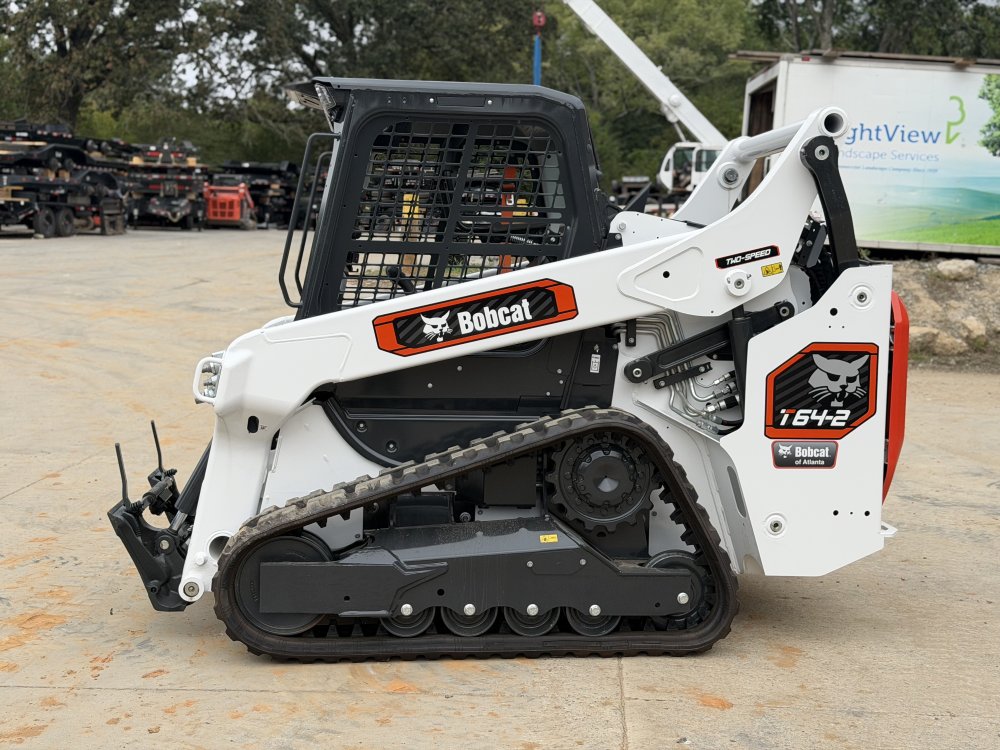

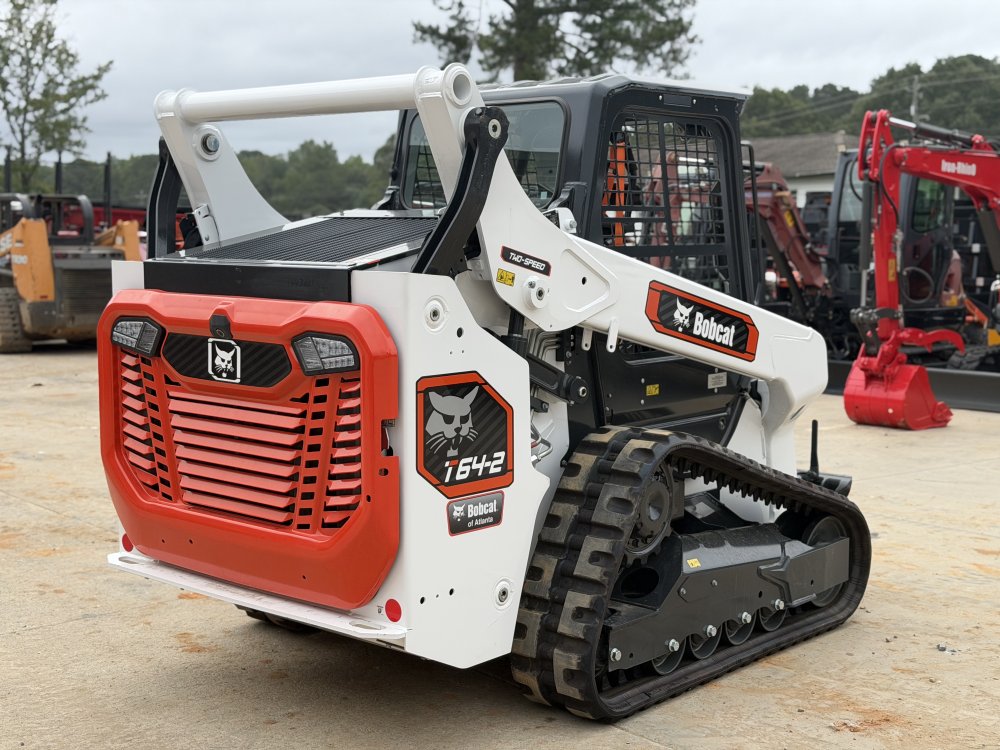

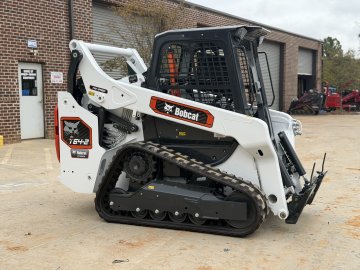

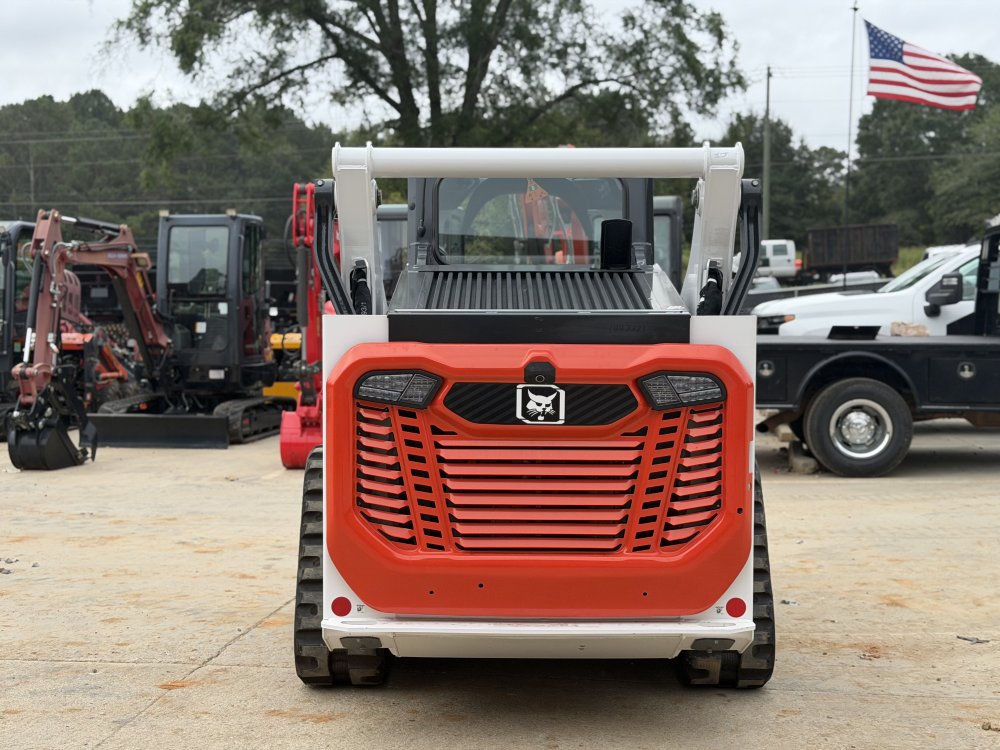

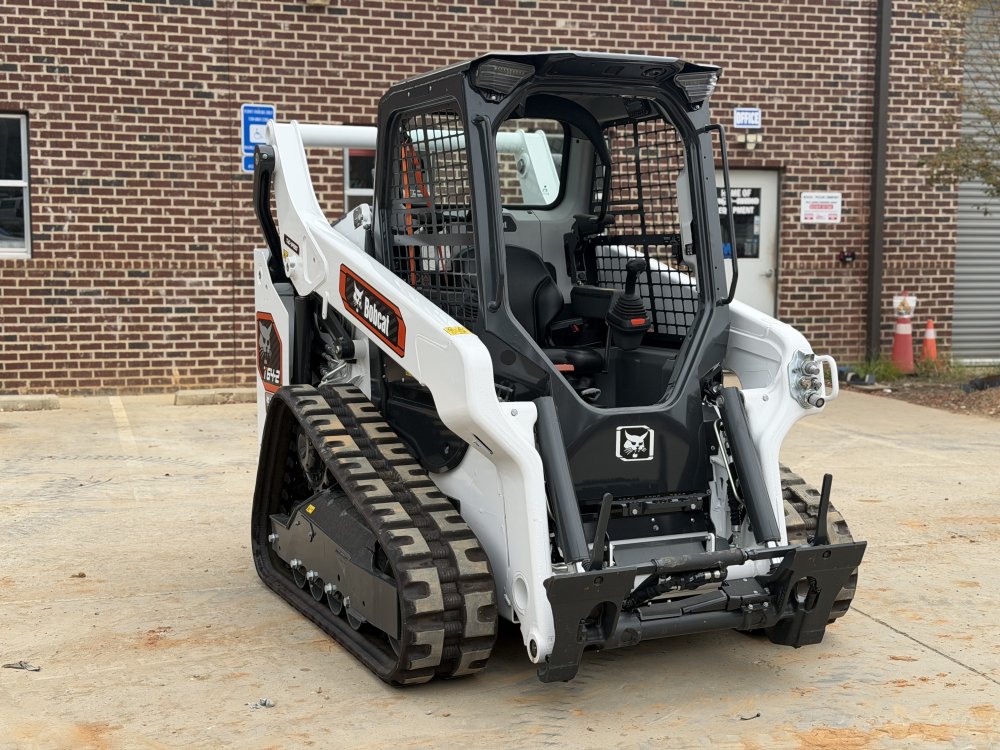

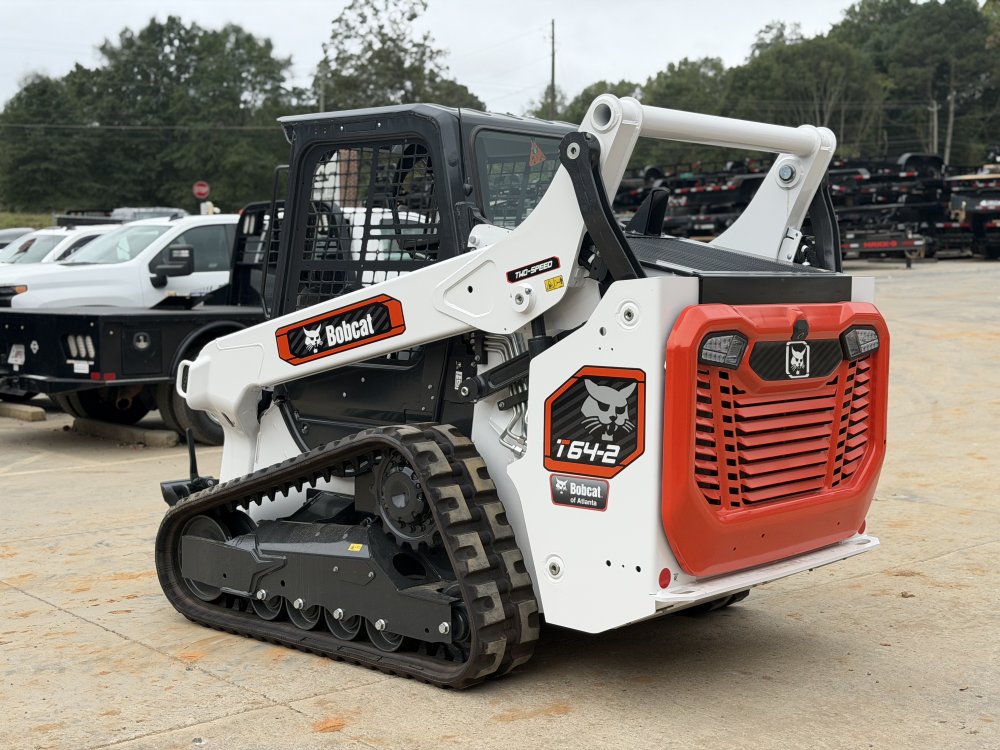

BOBCAT T64-2 — KEY SPECIFICATIONS

NO DPF

ENGINE
• Engine Power: 68 hp
• Turbocharged Engine: Standard
• Hydraulic Horsepower — Standard Flow: 35.9 hp
• Engine High Idle: 2,600 RPM
• Engine Low Idle: 1,050 RPM
• Pre-Heat: Yes
• Battery: 1,000A CCA
• Engine Shutdown: Standard
• Spark Arrestor Muffler: DOC

PERFORMANCE & CAPACITY
• Operating Weight: 8,440 lbs
• Tipping Load: 6,571 lbs
• Rated Operating Capacity with Torsion: 2,200 lbs
• Rated Operating Capacity with 200 lb. Counterweight: 2,450 lbs (Not Included)
• ROC Solid Undercarriage: 2,300 lbs
• Travel Speed — Low: 6.4 mph
• Travel Speed — High: 9.3 mph
• Ground Pressure — Rubber Tracks: 5.7 psi
• Ground Pressure — Standard Tracks: 5.5 psi

HYDRAULIC SYSTEM
• Auxiliary Standard Flow: 17.6 GPM
• Auxiliary System Pressure: 3,500 PSI
• System Relief Pressure at Quick Couplers: 3,500 PSI
• Auxiliary Hydraulics: Standard

DIMENSIONS
• Overall Length with Standard Bucket: 134.9 in
• Length Without Attachment: 107 in
• Overall Width: 67.8 in
• Overall Height: 80.5 in
• Height to Hinge Pin: 120 in
• Reach at Maximum Height: 36.7 in
• Turning Radius: 81.5 in
• Track Length on Ground: 54.2 in
• Standard Track Width: 12.6 in
• Optional Track Width: 15.8 in

FUEL CAPACITY
• Fuel Tank Capacity: 28.3 gallons

STANDARD FEATURES
• Backup Alarm
• BICS System (Interlock)
• Operating Lights

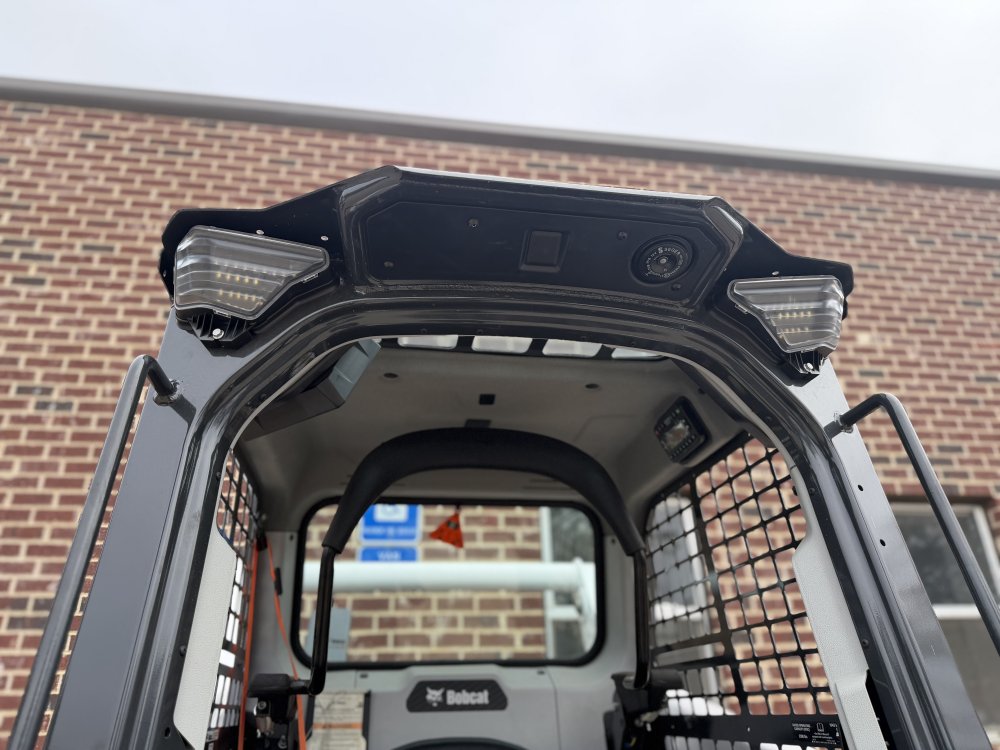

• Work Lights
• Turbocharged Engine
• Rear Window

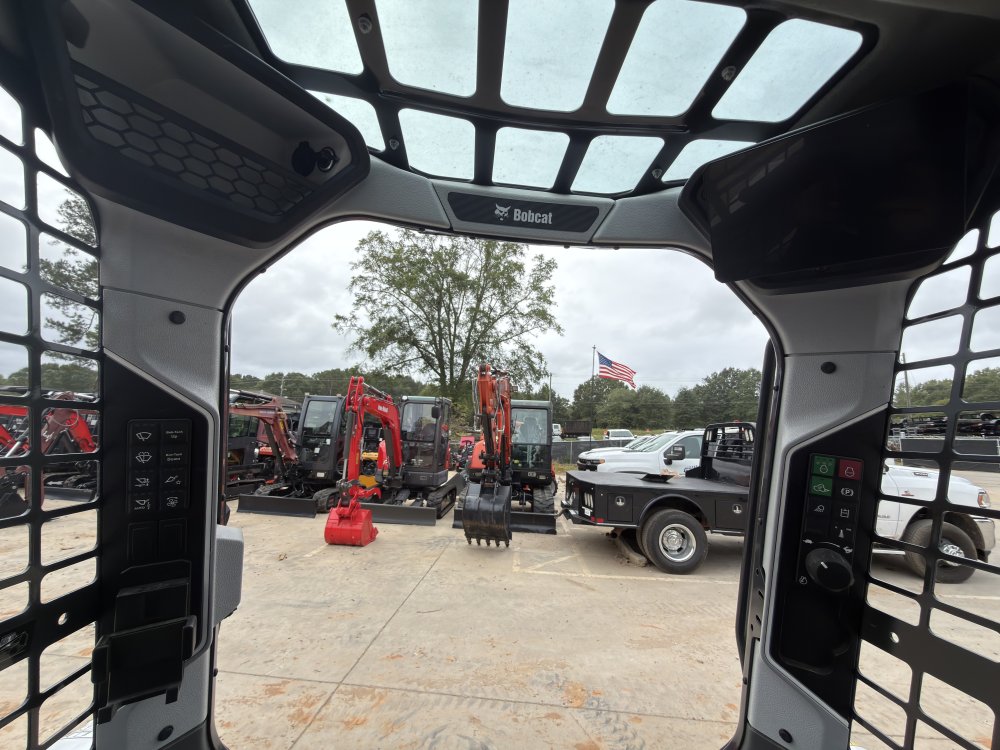

• Top Window
• Lift-Arm Support
• Suspension Seat
• Auxiliary Hydraulics

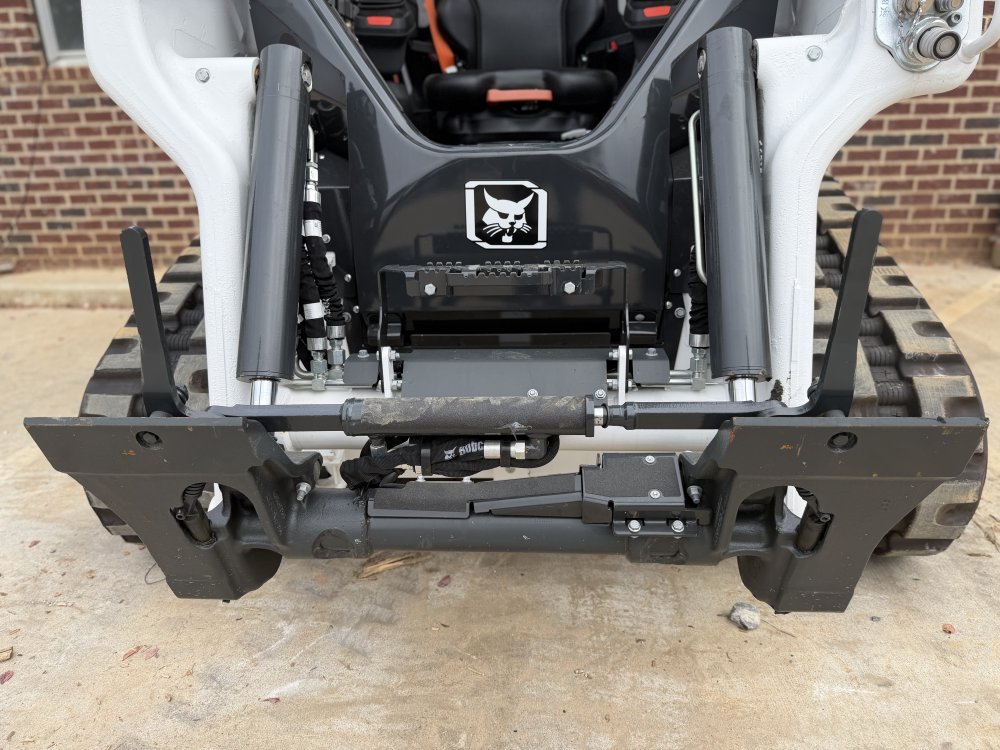

• Bob-Tach Attachment System
• Engine Shutdown
• Horn
• 2-Point Lap Belt
• DOC Spark Arrestor Muffler

OPTIONAL FEATURES

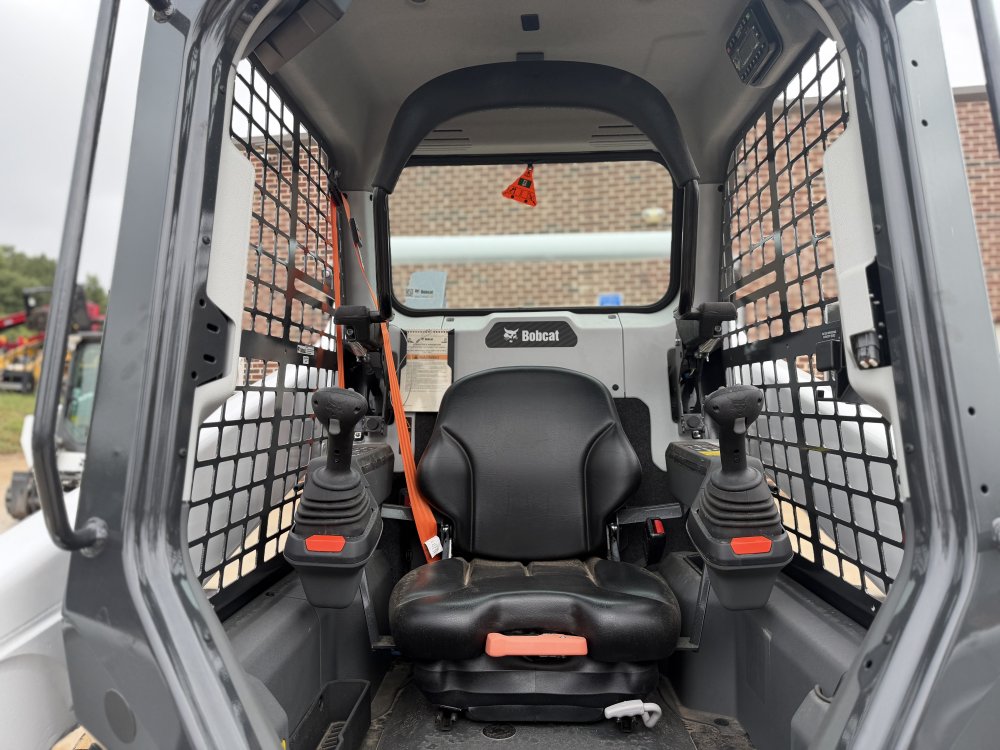

• Joystick Controls
• Sound Option
• Radio
• Two-Speed Travel
• Deluxe Instrumentation
• Power Bob-Tach
• Ride Control
• 3-Point Shoulder Belt
