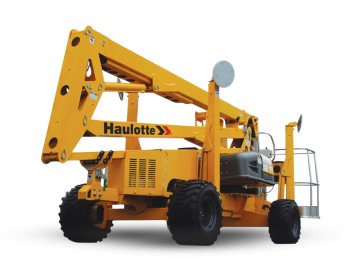

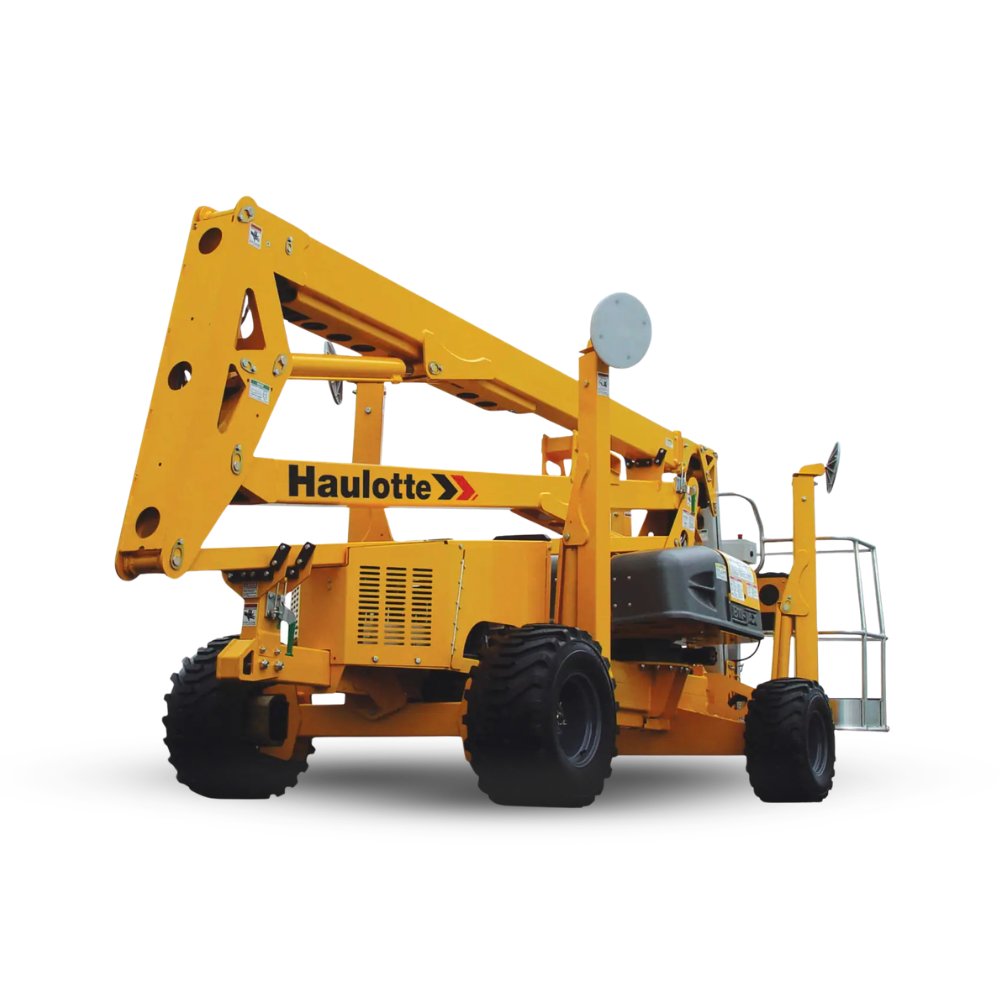

The Haulotte 45XA is a lightweight self-propelled aerial lift built for exceptional versatility on both indoor and outdoor jobsites. With low ground pressure, fast hydraulic outrigger setup, and impressive outreach capabilities, the 45XA is ideal for landscaping, facility maintenance, construction, and elevated access work on sensitive surfaces such as turf, concrete, and finished flooring.

Performance & Reach

• Maximum Working Height: 51 ft
• Maximum Platform Height: 45 ft
• Horizontal Outreach (Centerline): 27 ft
• Horizontal Outreach (Edge of Footpad): 21 ft
• Up & Over Height: 20 ft 9 in
• Lift Capacity: 500 lbs
• Jib Length: 4 ft 3 in
• Jib Vertical Motion: 150° (+70° / -80°)
• Turntable Rotation: 350° Non-Continuous

Drive & Mobility

• Self-Propelled Drive System
• Drive Speed: 4 MPH Maximum
• Gradeability: 45%
• Turning Radius (2-Wheel Steer): 10 ft
• Turning Radius (4-Wheel Steer): 5 ft 4 in
• Tire Size: 26 × 12 Bar Lug Tires
• Low Ground Pressure Design for sensitive surfaces

Outriggers & Stability

• Hydraulic Outriggers
• Outrigger Setup Time: Less Than 30 Seconds
• Outrigger Footprint: 12 ft 4 in × 11 ft 4 in
• Designed for uneven terrain and stable operation

Platform & Basket

• Platform Size: 5 ft × 2 ft 6 in

Power System

• Engine: 26.5 HP Gasoline Engine
• Battery System:
  • 4 × 6V 260 Amp-Hour Batteries

Dimensions & Weight

• Stowed Length: 18 ft 2 in
• Stowed Width: 5 ft 6 in
• Stowed Height: 6 ft 7 in
• Wheelbase: 8 ft 9 in
• Ground Clearance: 6 in
• Operating Weight: 5,200 lbs

Ideal Applications

• Landscaping & tree work
• Building maintenance
• Indoor facility maintenance
• Construction access
• Concrete and turf surface operation
• Elevated access in tight or sensitive areas
