Description:

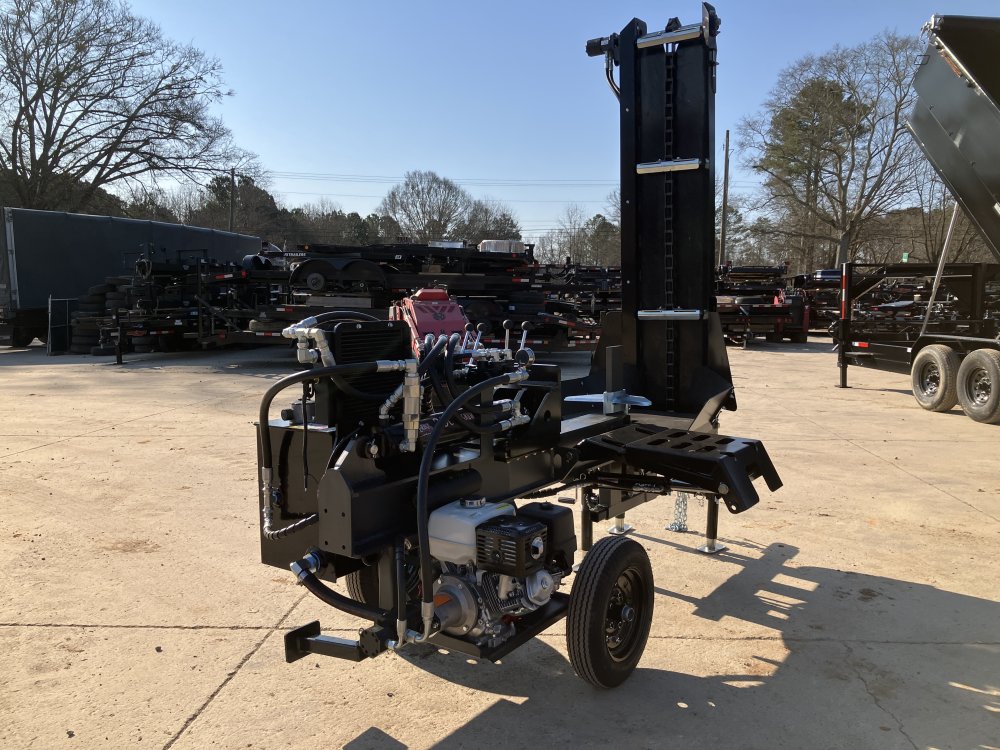

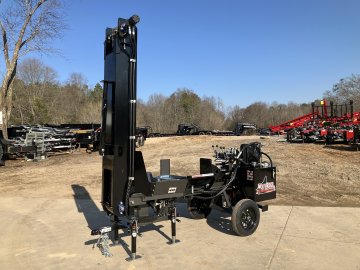

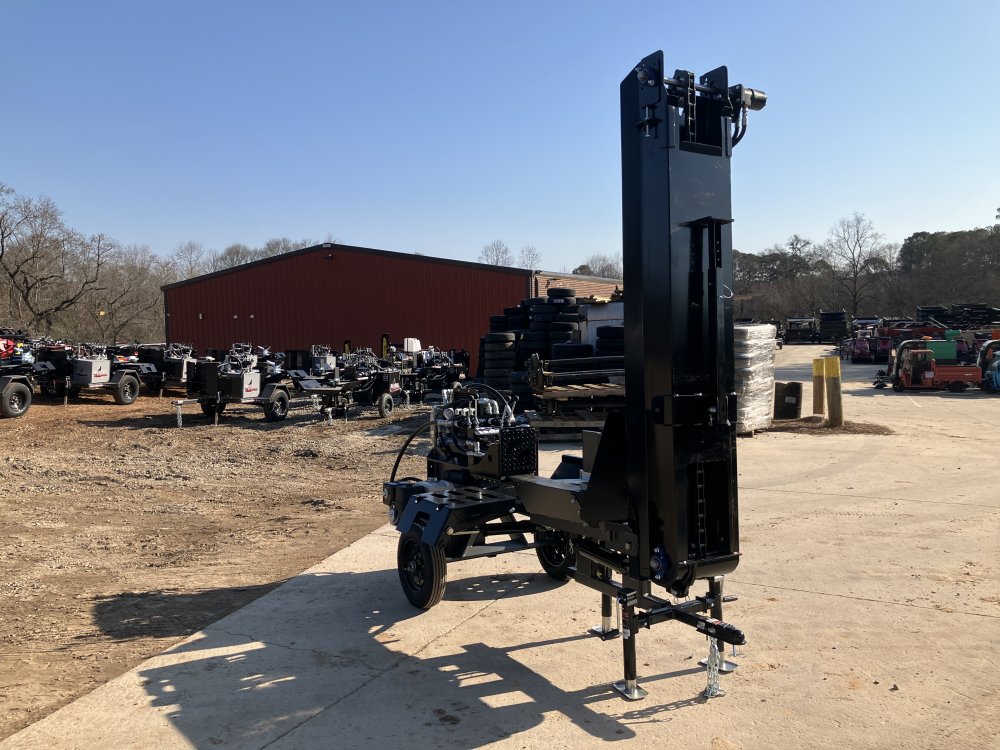

The Wolfe Ridge 28C-C takes our proven Compact Commercial log splitter and takes it to the next level with an attached hydraulic conveyor package! 28-ton splitting force. Built to last, made in the USA, all Wolfe Ridge machines are produced with top-quality materials to ensure reliable performance, day in and day out. The attached conveyor on this splitter is designed to fill an IBC tote with ease.  Height of the conveyor is adjustable hydraulically, and it has forward and reverse with a pressure relief to protect components in the event of a jam.  Along with the attached conveyor, the 28C-C includes a hydraulic oil cooler with thermostatically controlled 12 volt fan. The 28C-C log splitter features the “Magnum Big Bore” package as standard equipment.  This includes the tall push block and big bore cylinder for consistent performance and fast cycle times.  This means less time and effort spent on splitting wood, and more time for everything else. 28C-C splitter is the perfect choice for filling single IBC totes or similar containers quickly and easily without taking up much space in your woodyard.

$900 - 12WAY WEDGE
$500 - 6WAY WEDGE
$300 - Overhead LED Flood Light Kit

Specifications:
YEAR: 2026 | MODEL: 28C-C | COLOR: GRAY

• 28-ton splitting force
• Magnum Big Bore package with fast cycle time
  • 28C-C = 6.5 seconds
• Powerful Honda engine for consistent performance

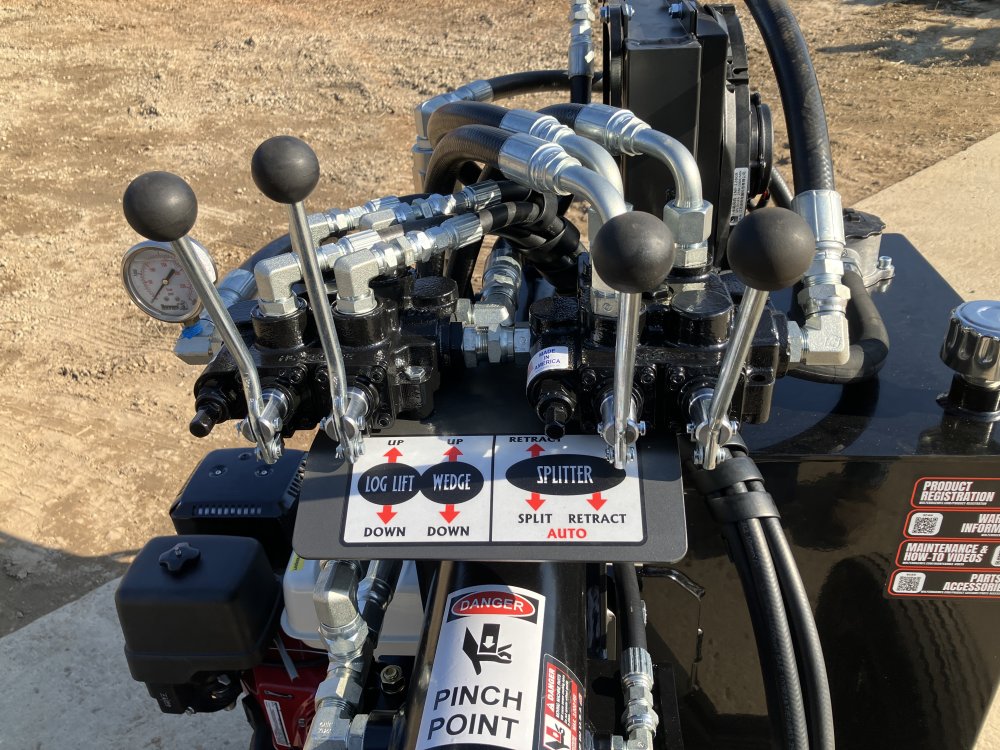

• Easy-to-use controls – Made in USA Prince hydraulic valves
• Hydraulic log lift as standard equipment
• Hydraulic wedge height adjustment as standard equipment
• Double stack hydraulic pump (small section to run conveyor)
• Valves under the sorting table for conveyor control

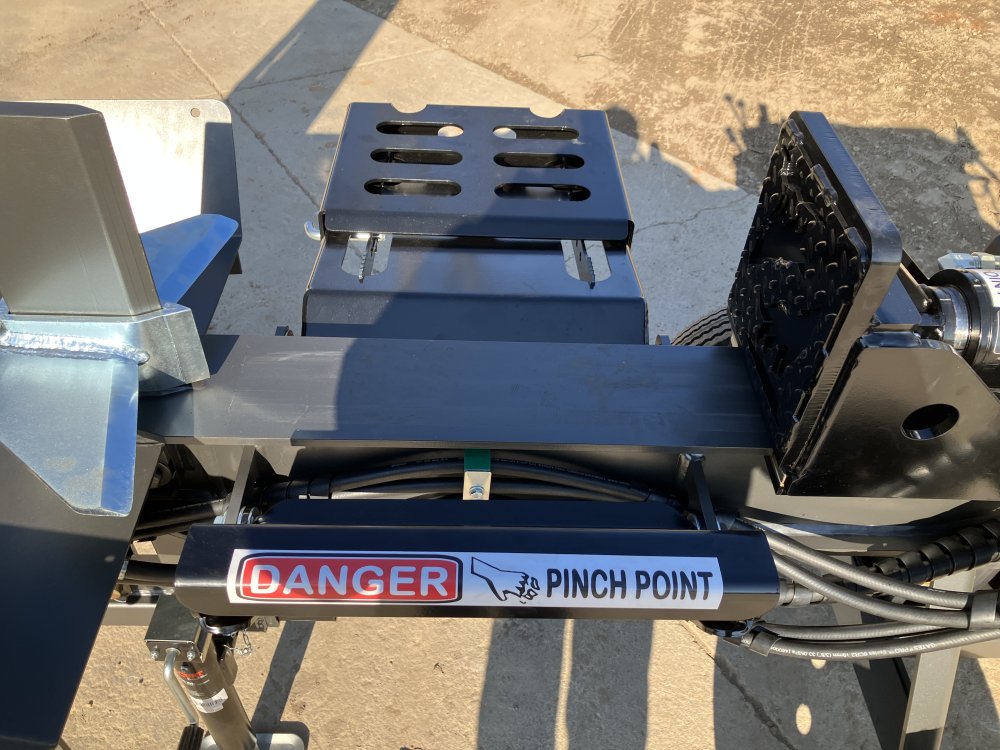

• Redesigned sorting table for conveyor funnel action

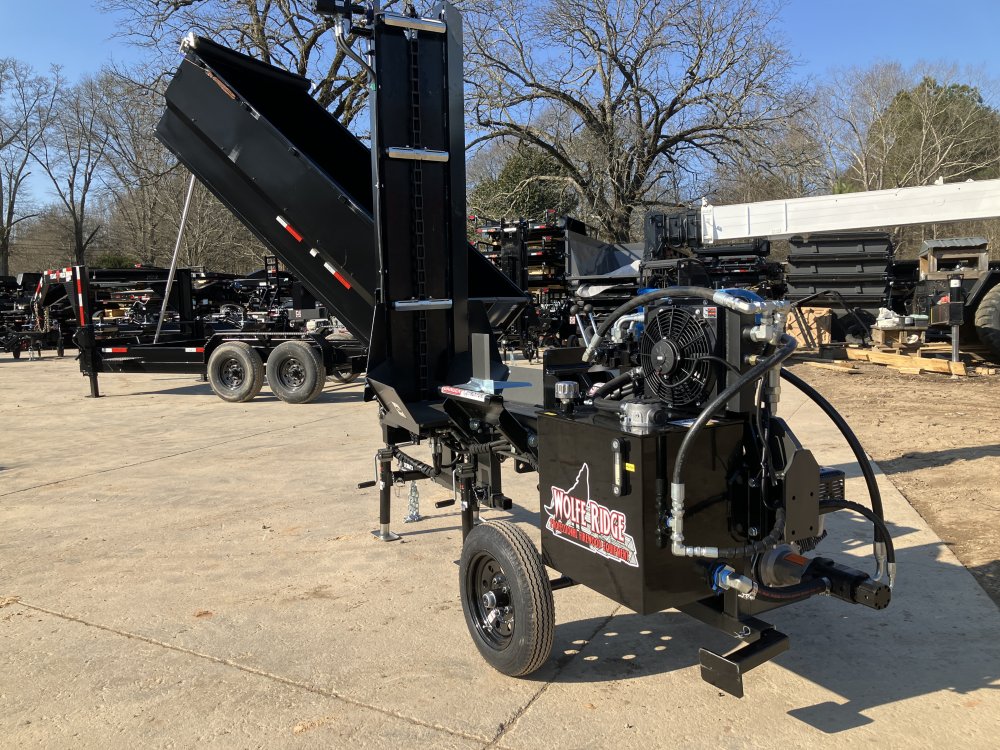

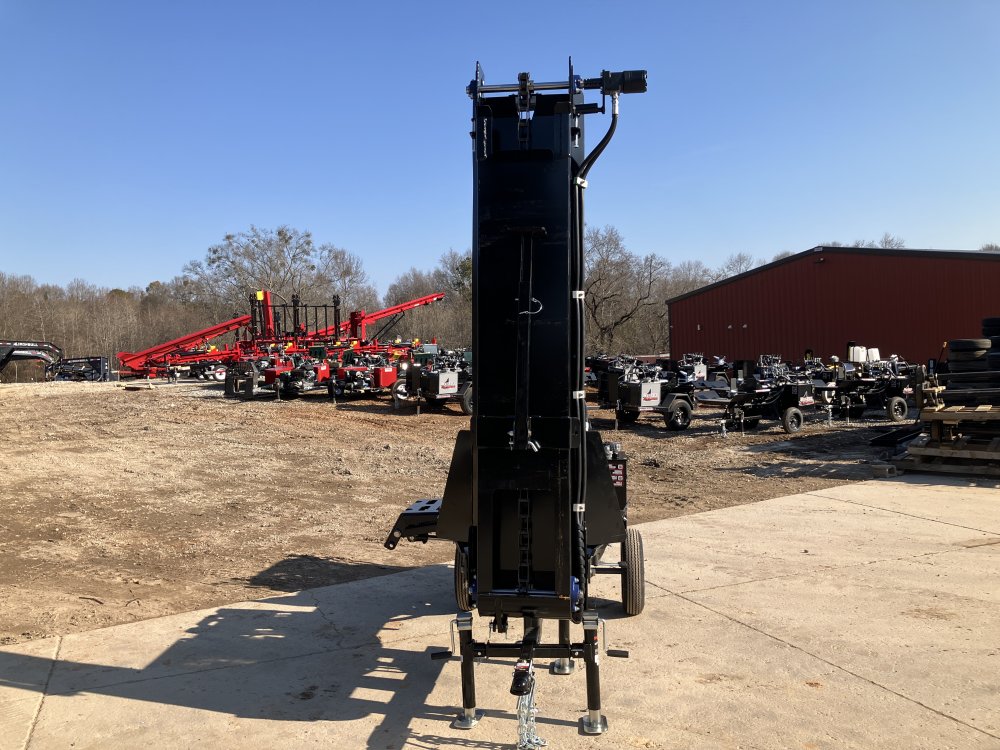

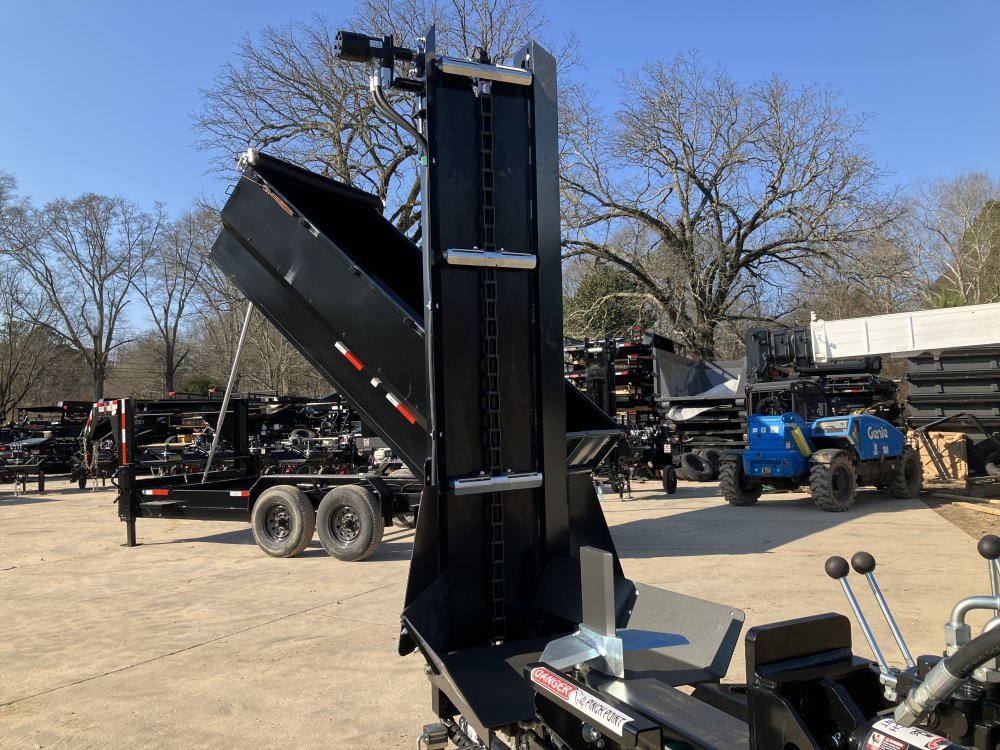

• 8’ hydraulic powered conveyor – same width as our stand-alone conveyors
• Hydraulic height adjustment for conveyor and hydraulic forward and reverse
• Revised drawbar with added jacks and positions for extra stability

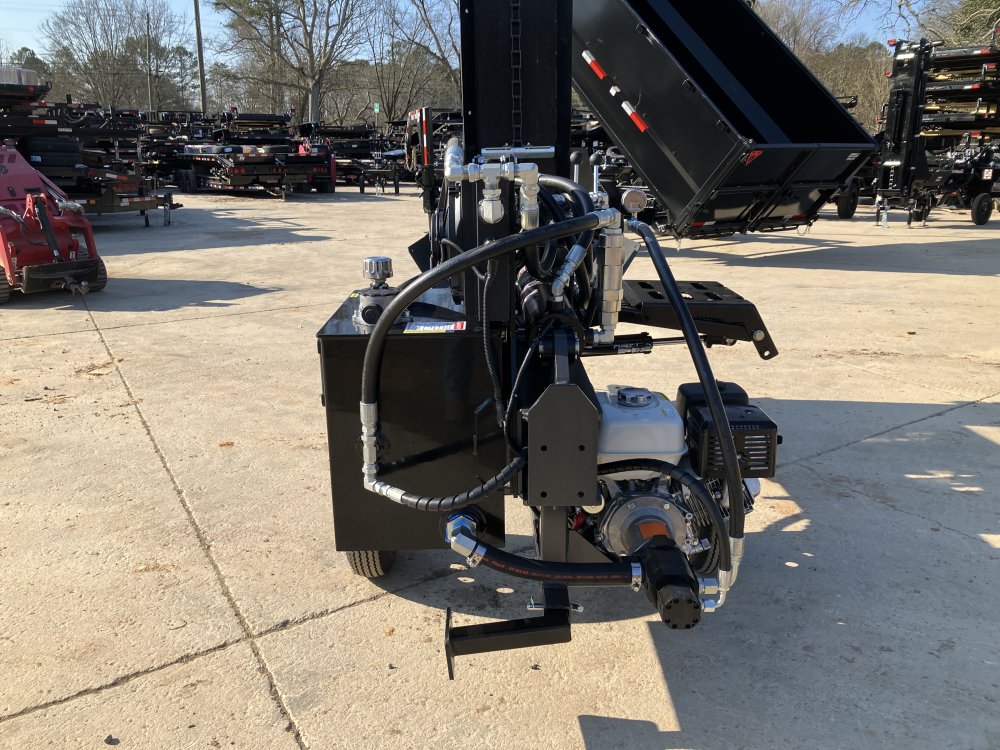

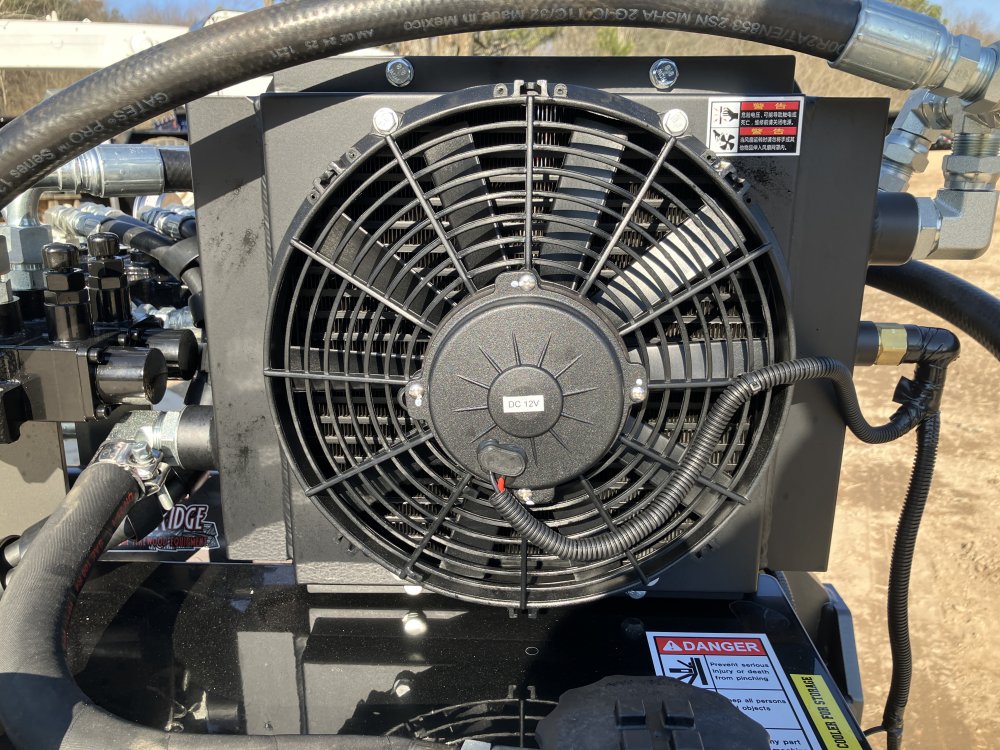

• Hydraulic oil cooler package with thermostatically controlled 12 volt fan
• Electric start as standard equipment
• Sandblasted and powder coated for a tough, long lasting appearance
• 1 year warranty on machine – 3 year on engine

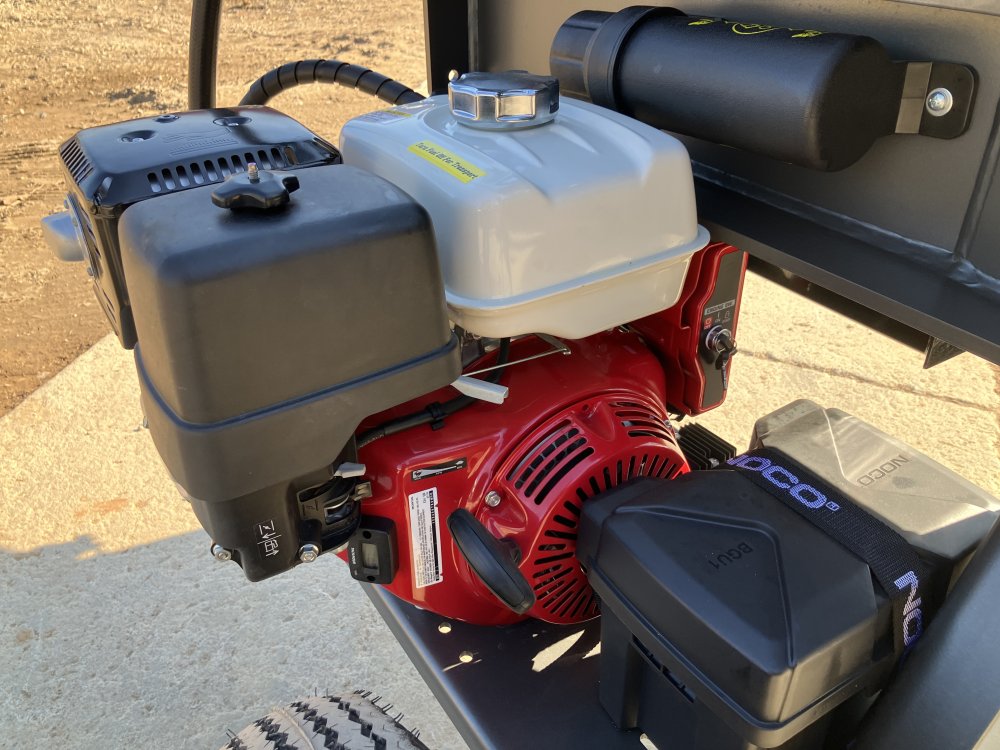

• Honda GX390 13HP engine
• 12 volt electric start with Interstate battery
• 10 amp charge coil for running auxiliary 12V items
• 22 GPM 2 section hydraulic pump (small section to run conveyor)
• 25 gallon hydraulic tank with cartridge return filter
• Prince auto cycle valve

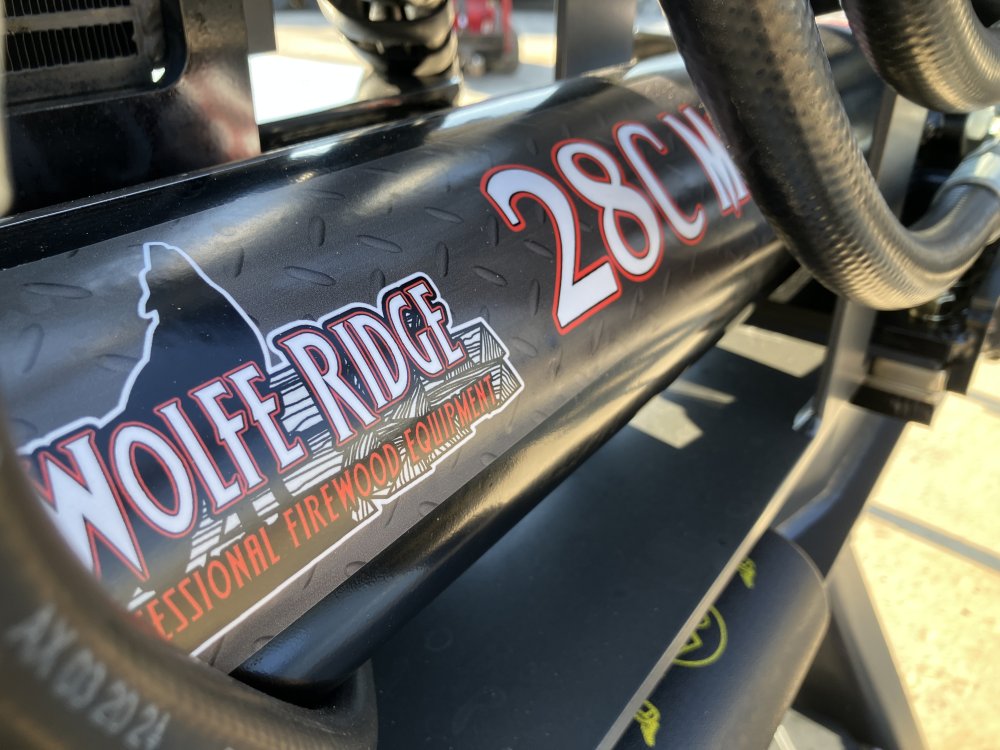

• Magnum big bore package with 12 inch tall push block
• Bronze self lube slides on push block
• In-house welded & fabricated splitter beam
• 31 inch beam height
• 24 inch stroke – *NO EXTENDED STROKE OPTIONS FOR THE C-C MACHINES*
• Hydraulic log lift included – 450lb lift capacity
• Hydraulic wedge height adjustment
• Hydraulic conveyor exit = approximately 6′ at 45 degree angle

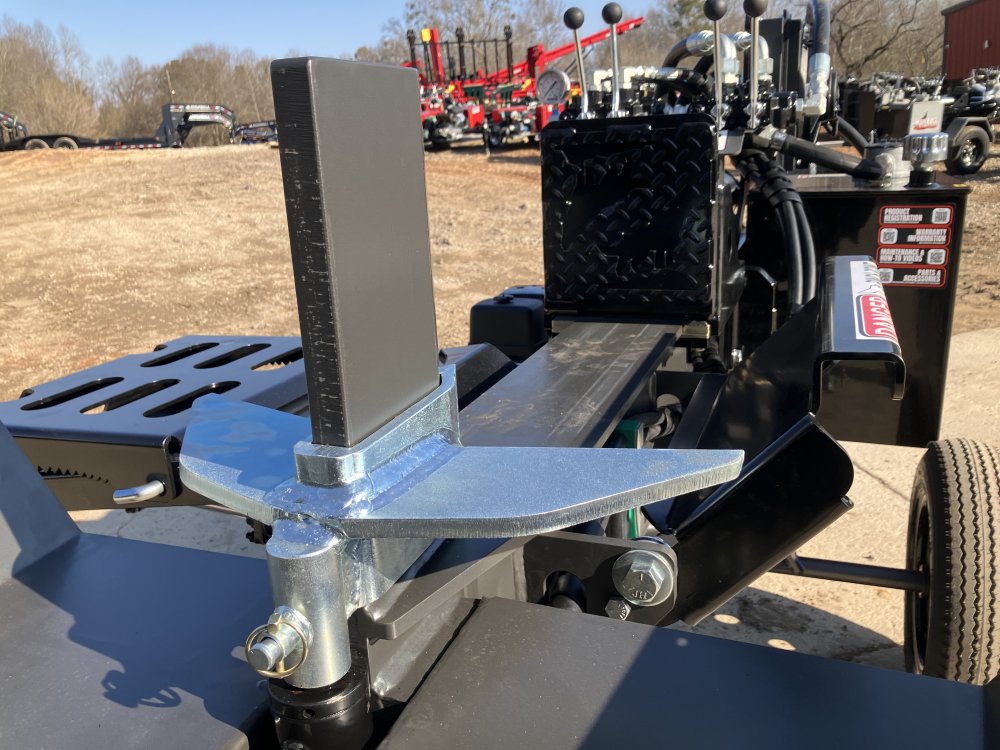

• Removable 4 way wedge included (6 or 12 way optional)
• Removable draw bar with 2 inch hitch ball coupler
• 45 MPH recommended max towing speed

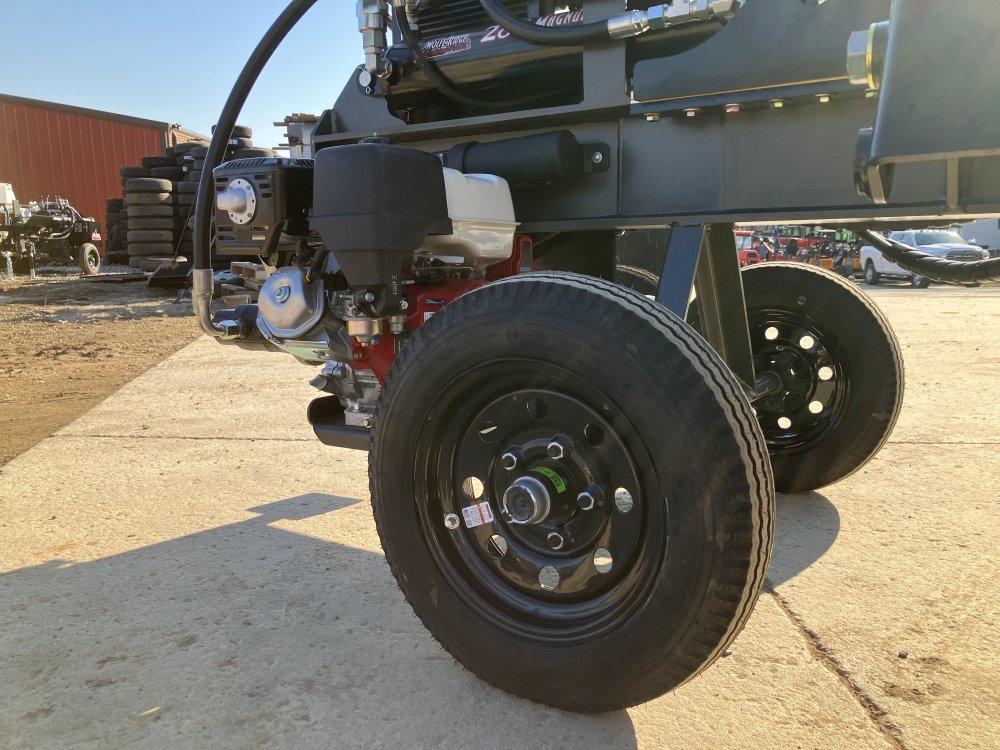

• 4.8″ x 12″ rims, 21” radial tires, Dexter hubs and spindles
• Weight: 1850 LB

Additional Information:
We prefer Check or Cash
All Cards will add a 3% Processing Fee.
$200 deposit on any unit you would like to hold.
Deposit applies to purchase but is not refundable if you do not complete the purchase.
Deposits are valid for a 10-day hold.
Deposits are non-refundable but will apply to the purchase price of the trailer.
For special orders or requests please call trailer sales.
