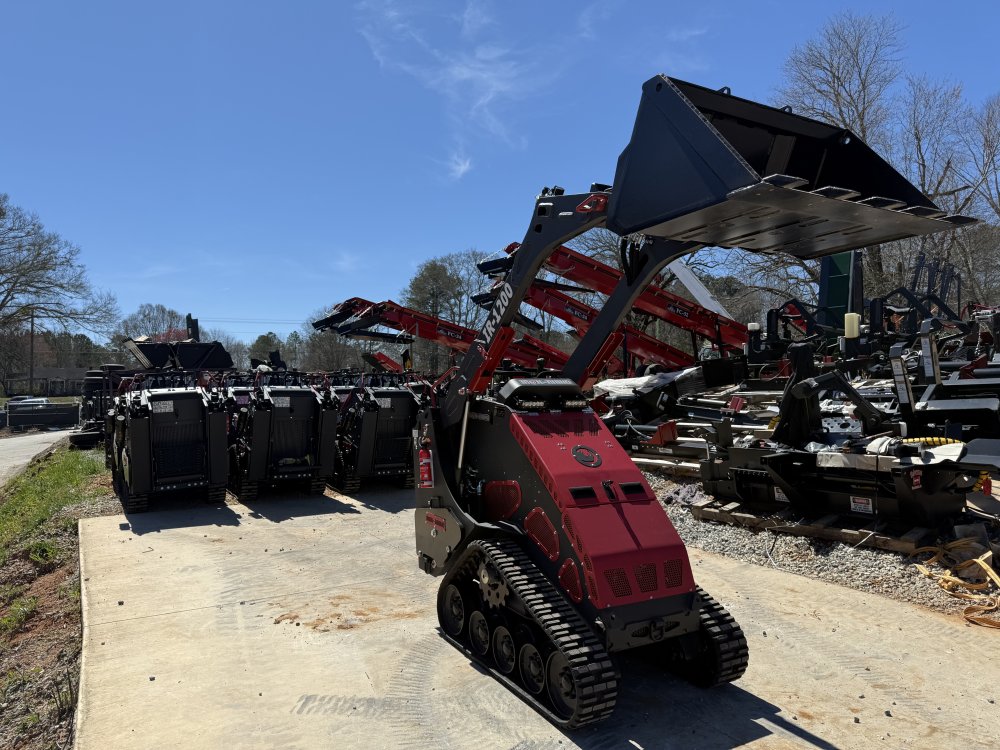

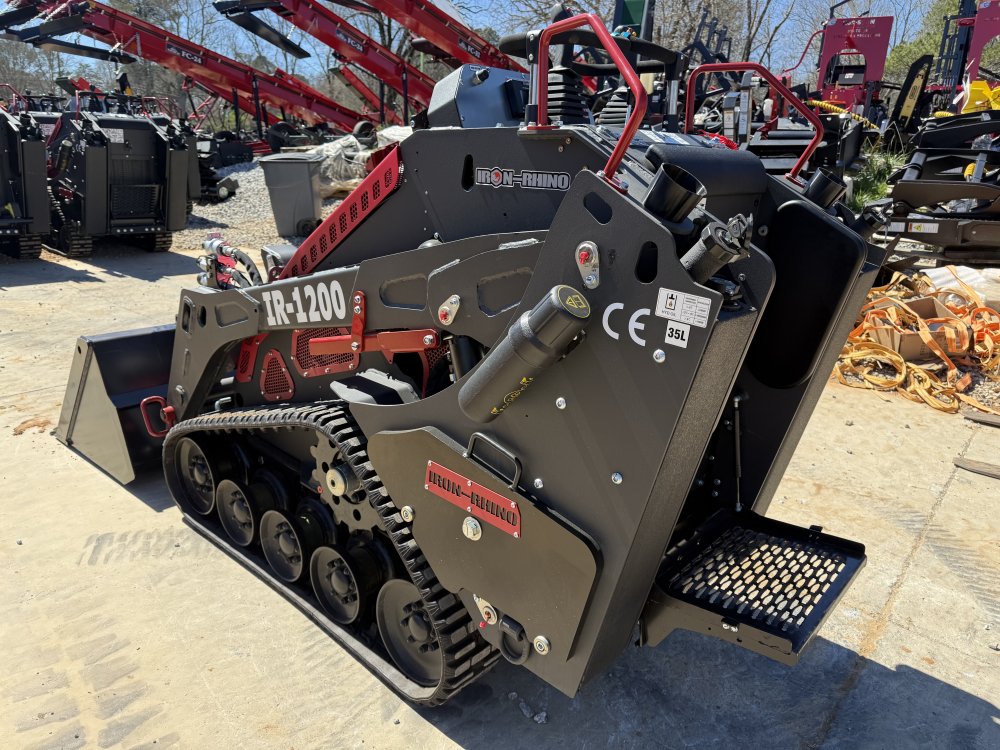

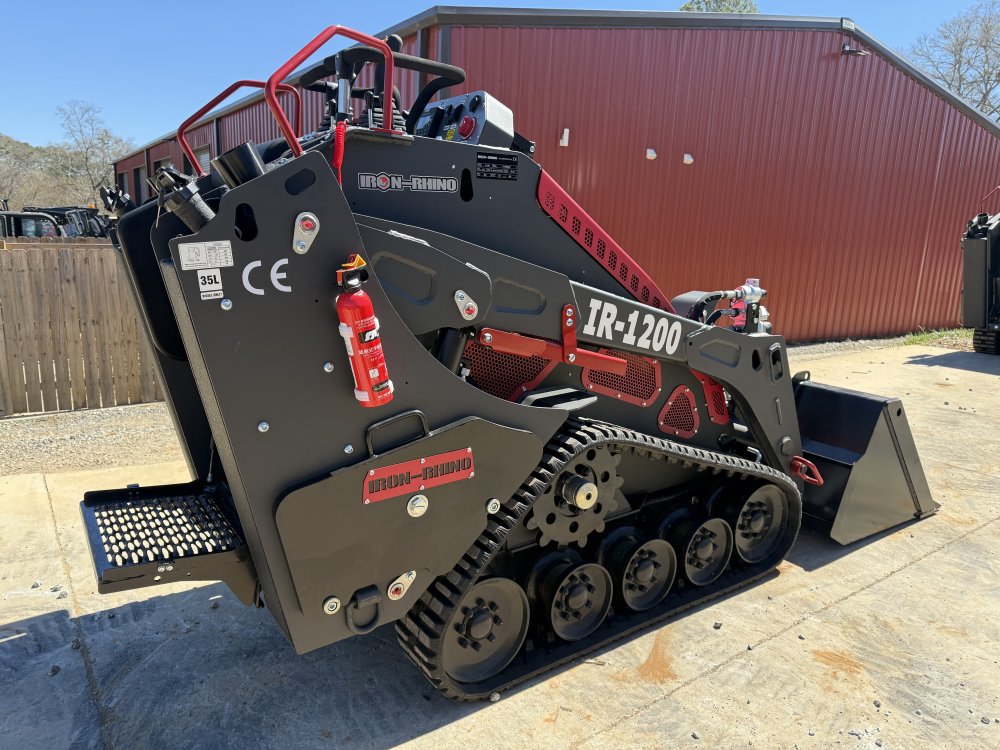

Iron Rhino IR1200 Narrow Track Mini Skid Steer with 4 Hose Bidirectional Power Rake Bundle
This Specific Version of the IR1200 has upgraded Poclain Drive Motors and the upgraded higher capacity bucket

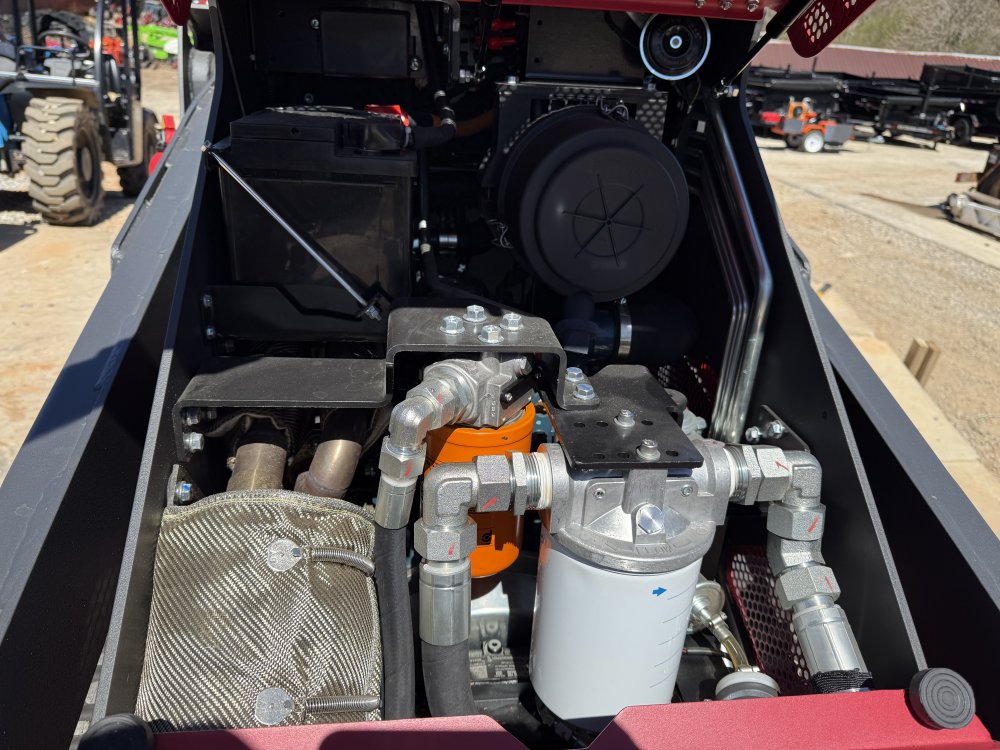

25 HP Kubota D1703 Diesel Engine
3874# machine weight with bucket
1300# Operating Capacity @35% Tip
3715# tip capacity

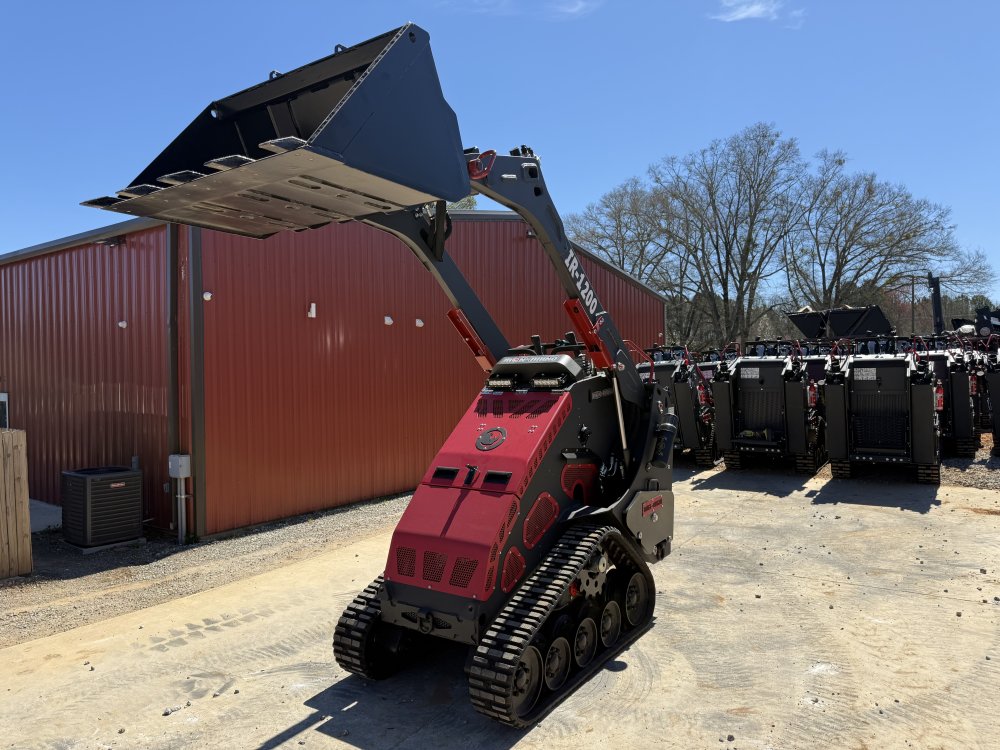

85.5" Hinge Pin Height
39.5" Wide with 8 Tracks
108.3" Overall Length with Bucket, 83.5" without Bucket
63" Height
12GPM AUX Flow, 2610 PSI Hydraulic Pressure
4.2 PSI Ground Pressure
11" Ground Clearance

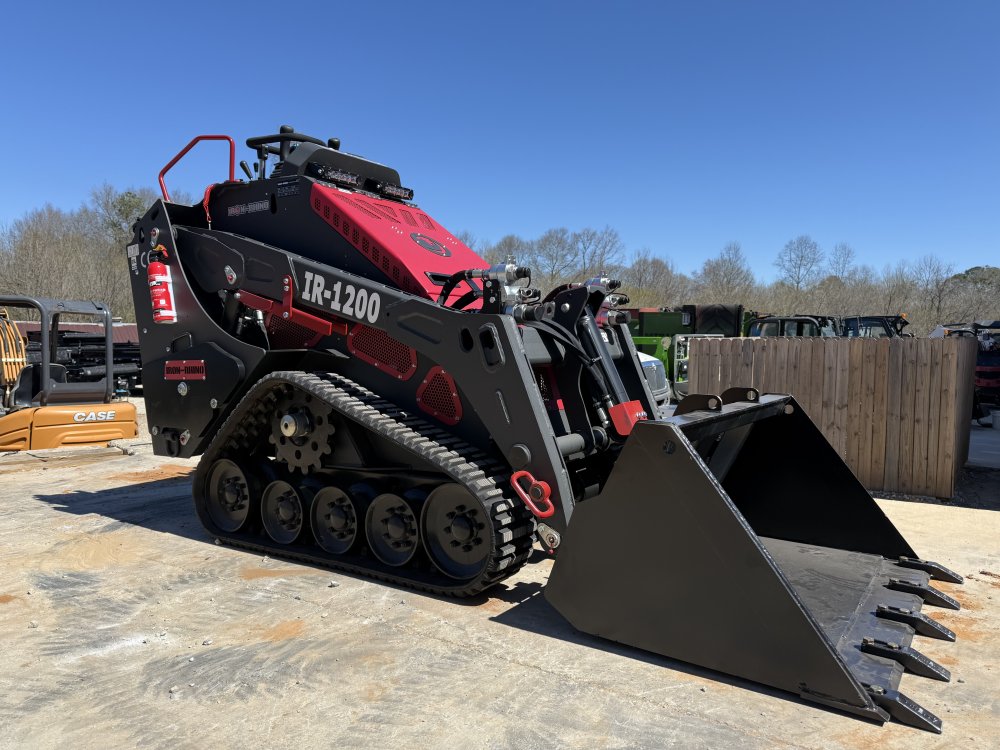

(Bucket-42" Wide, 6" Cutting Edge 1/2" thick, 20" Height, 25" Depth, 1/4" steel wrap, 1/4" thick wear plate on bottom, 3/4" bucket edge, 1/4" angle supports behind plate and along the top edge of the bucket, Bolt on Teeth)
8.46 Gallon Fuel Tank Capacity
8.46 Hydraulic Tank Capacity
Keyless Start with Password Protection
Parking Brake
Float
Dual Hydraulics
Work Lights Standard

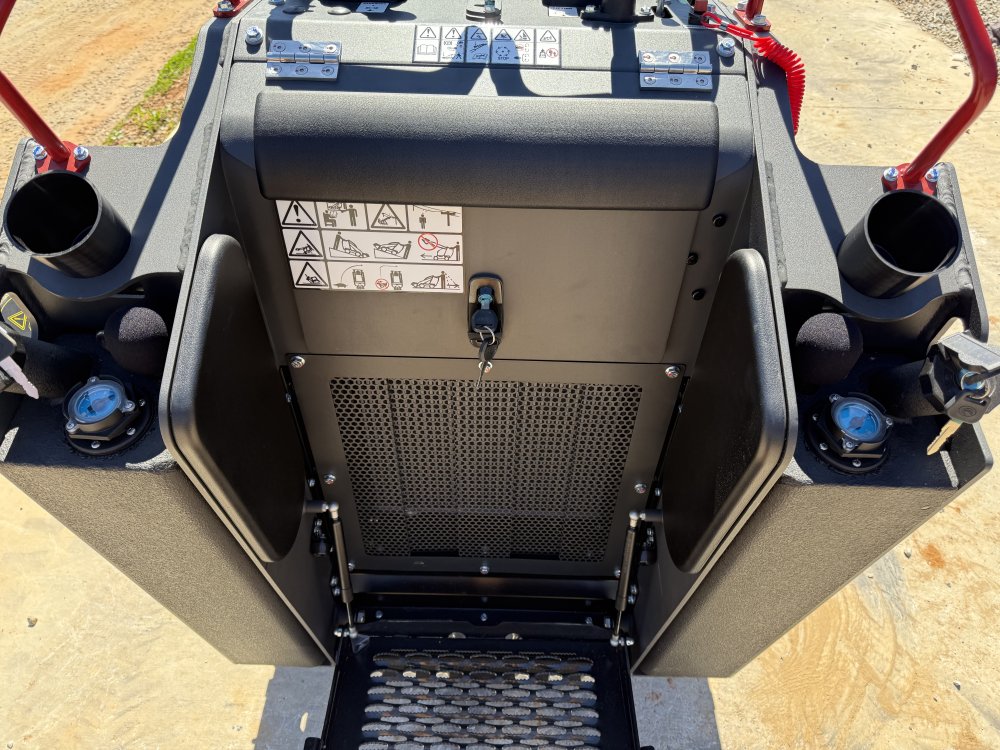

Fold Up Ride-On Platform

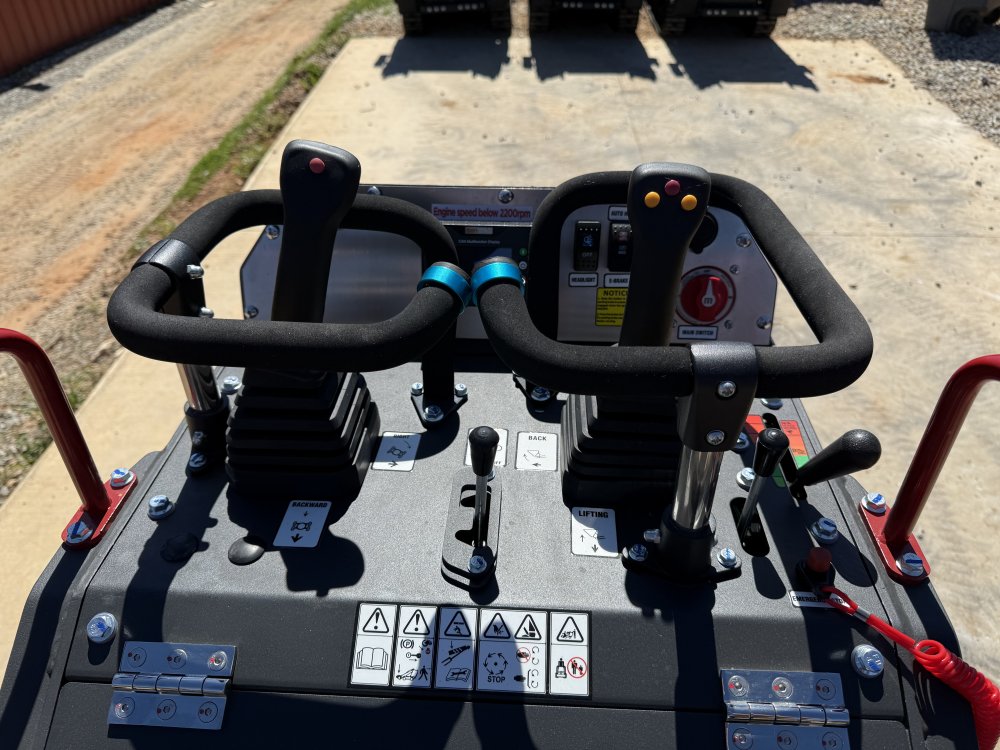

Joystick Controls
1 Year/1200 Hour Warranty
* Free Shipping to States East of the Rockies *

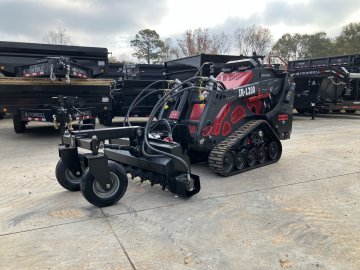

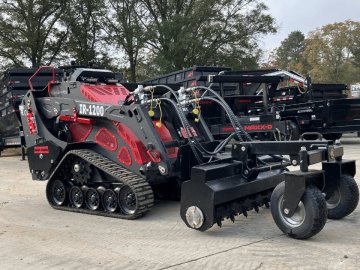

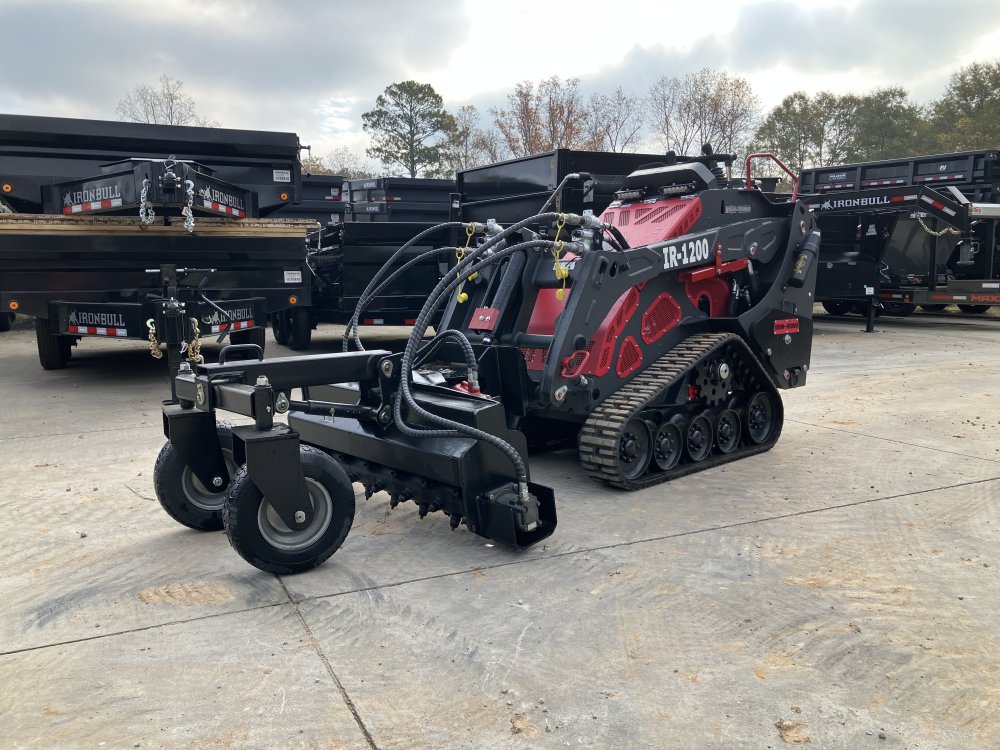

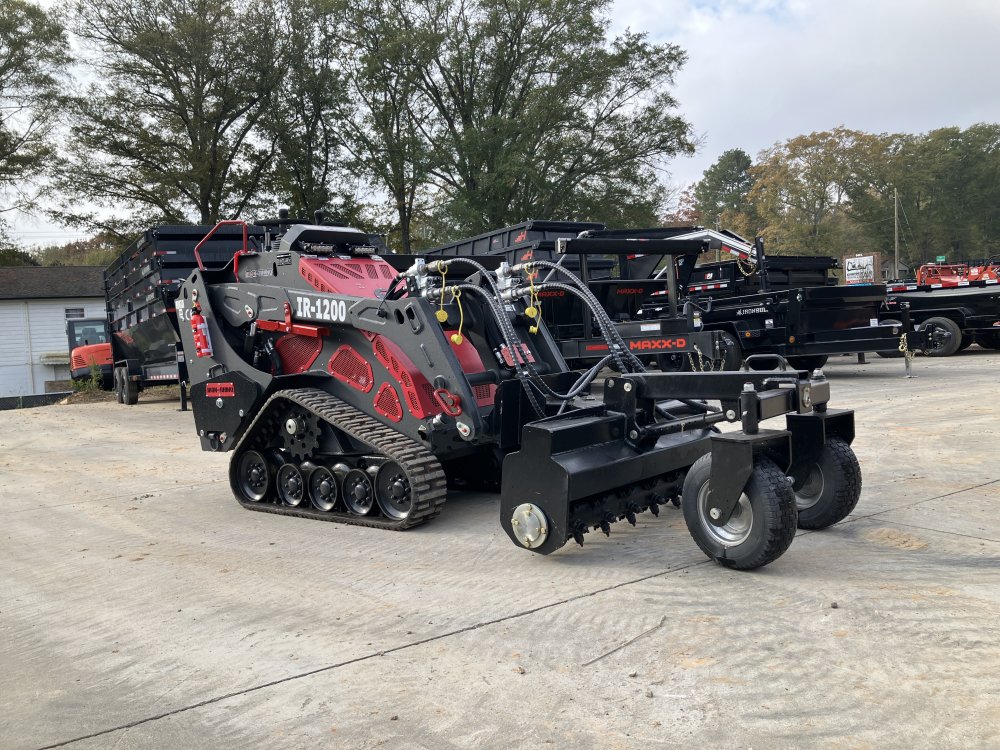

44" Power Rake Soil Cultivator Harley Rake Dingo Mini Universal Mount
44" working width 55.5 total width carbide teeth. Used to pulverize hard packed soil and remove rocks and roots. Pull all debris to edge leaving a perfectly level pulverized soil layer ready for seed or sod. Max flow 15GPM. Only needs minimum 5gpm to turn fast enough to function. Direct drive so simple operation.
Has Hydraulic Angle Adjustment with 4 Hose Hookup
Note: When using wheels to level must use float on dingo. Wheels are intended to carry weight of harley rake but not weight of dingo. 650 lbs
