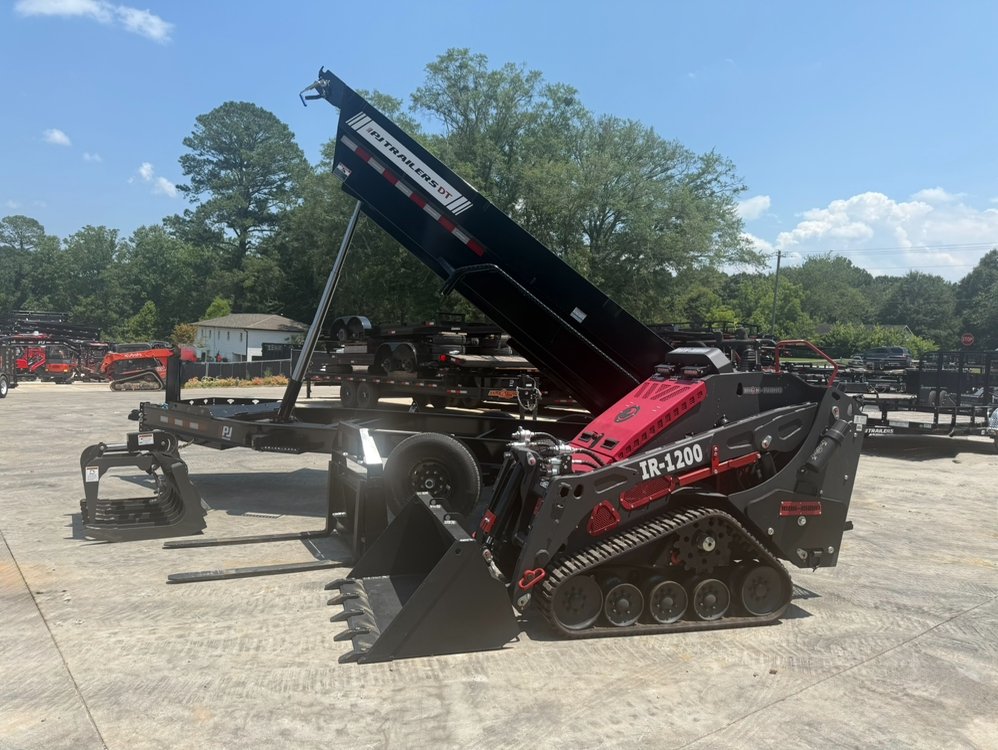

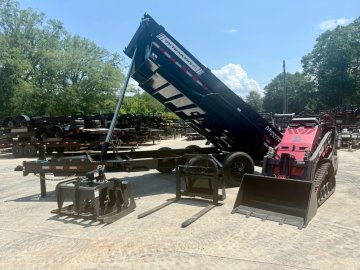

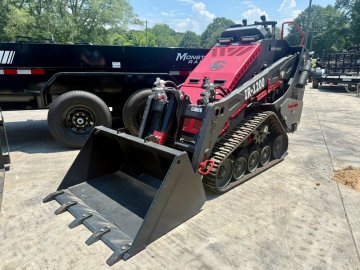

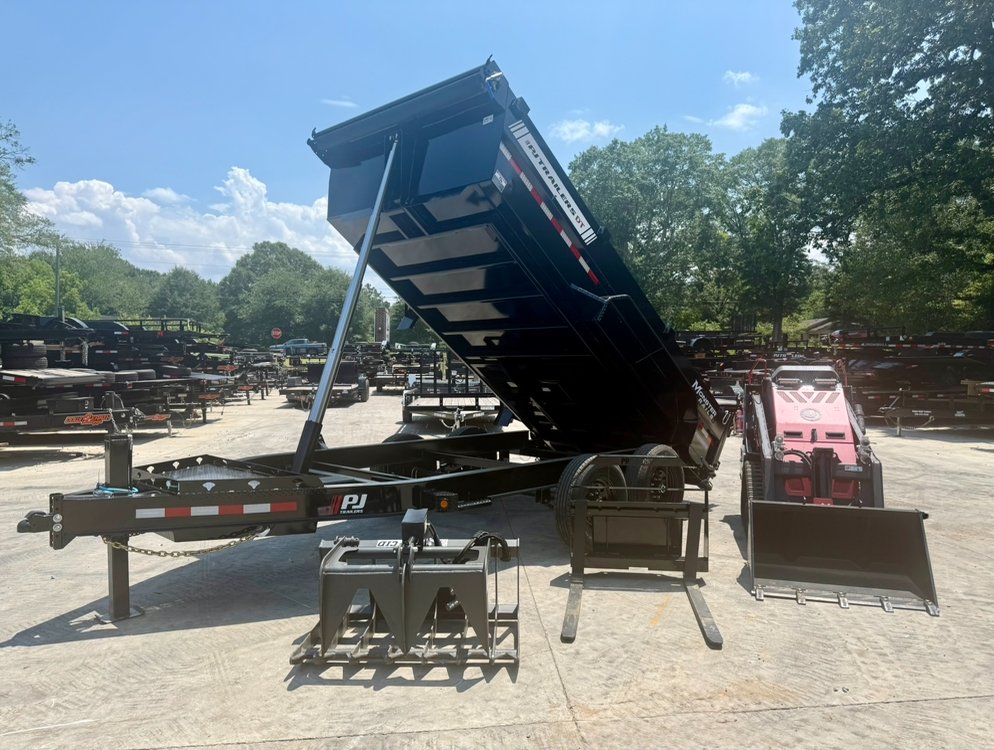

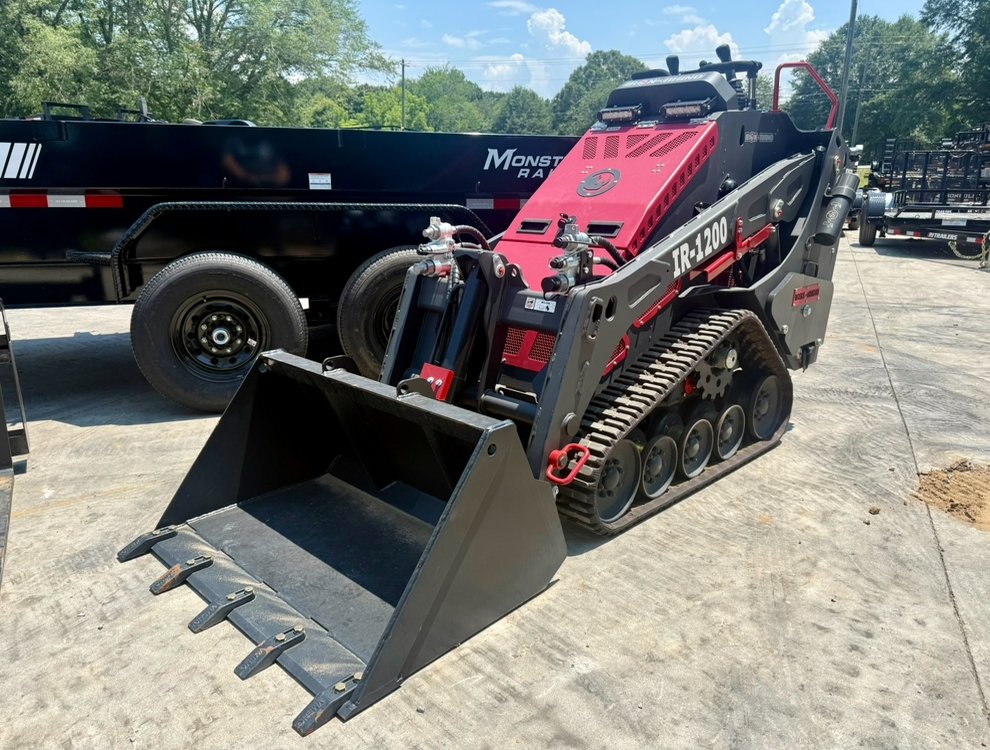

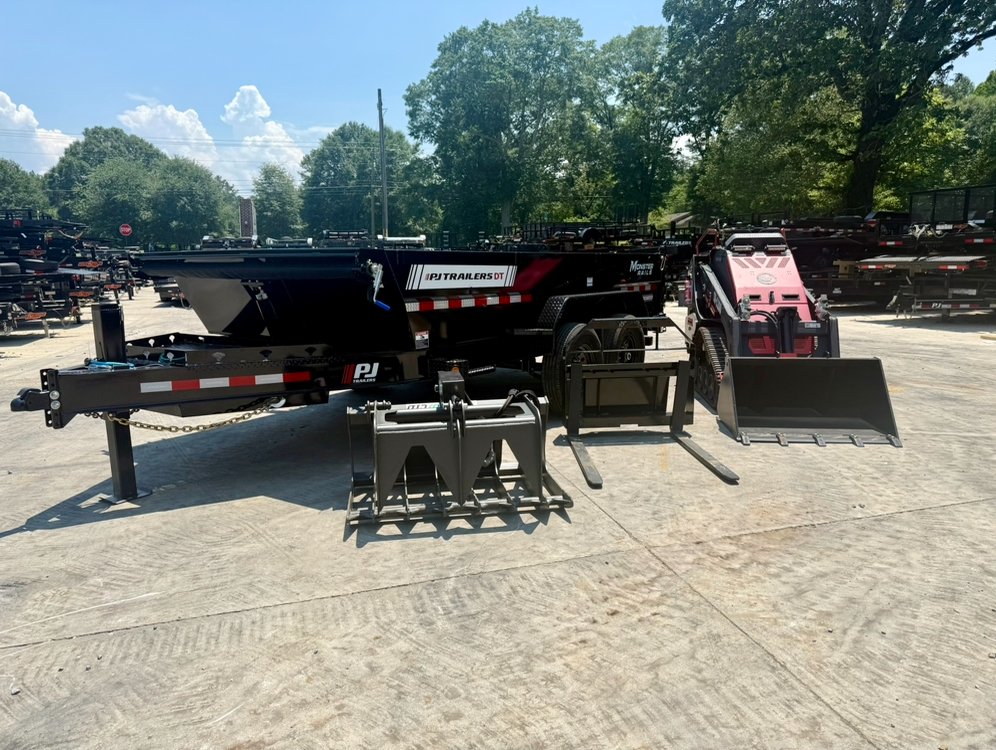

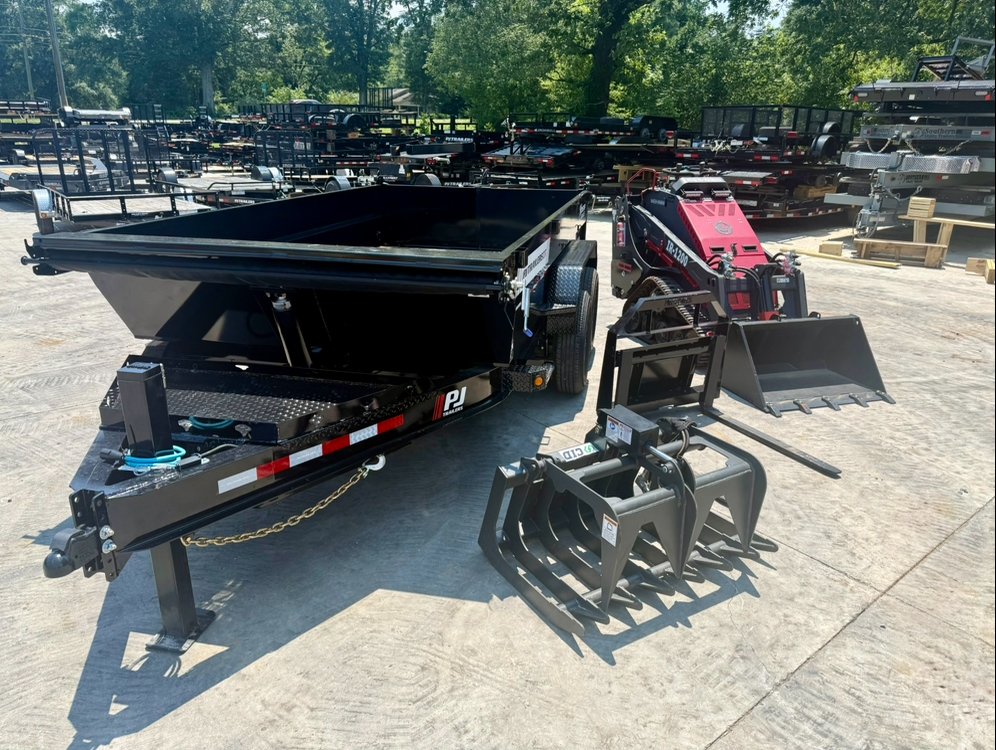

Iron Rhino IR1200 Mini Skid Steer with Single Cylinder Grapple (option of root, rock, or solid floor grapple based on availability) and Forks Bundle This Specific Version of the IR1200 has upgraded Poclain Drive Motors and the upgraded higher capacity bucket
25 HP Kubota D1703 Diesel Engine
3874 machine weight with bucket
1300 Operating Capacity @35% Tip
3715 tip capacity
85.5" Hinge Pin Height
39.5" Wide with 8 Tracks
108.3" Overall Length with Bucket, 83.5" without Bucket
63" Height
12GPM AUX Flow, 2610 PSI Hydraulic Pressure
4.2 PSI Ground Pressure
11" Ground Clearance
(Bucket-42" Wide, 6" Cutting Edge 1/2" thick, 20" Height, 25" Depth, 1/4" steel wrap, 1/4" thick wear plate on bottom, 3/4" bucket edge, 1/4" angle supports behind plate and along the top edge of the bucket, Bolt on Teeth)
