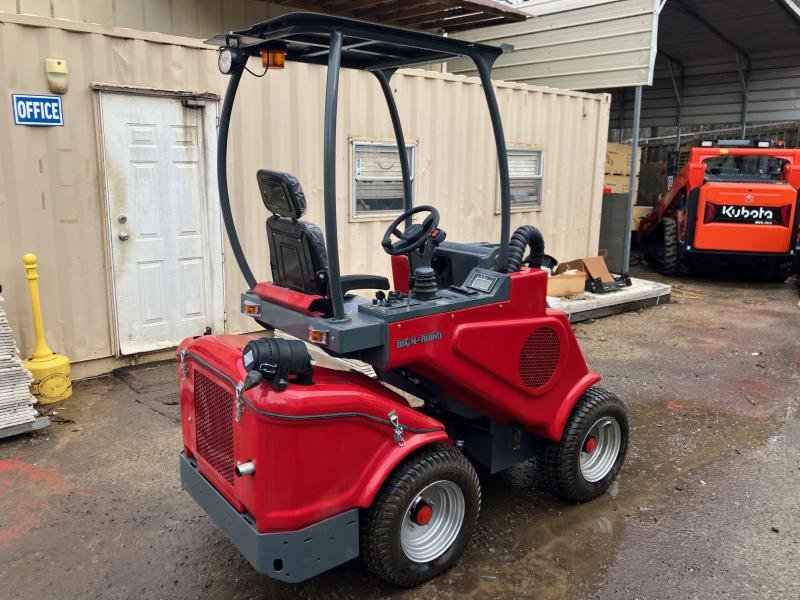

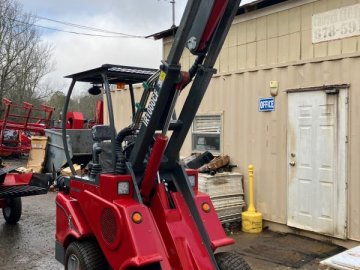

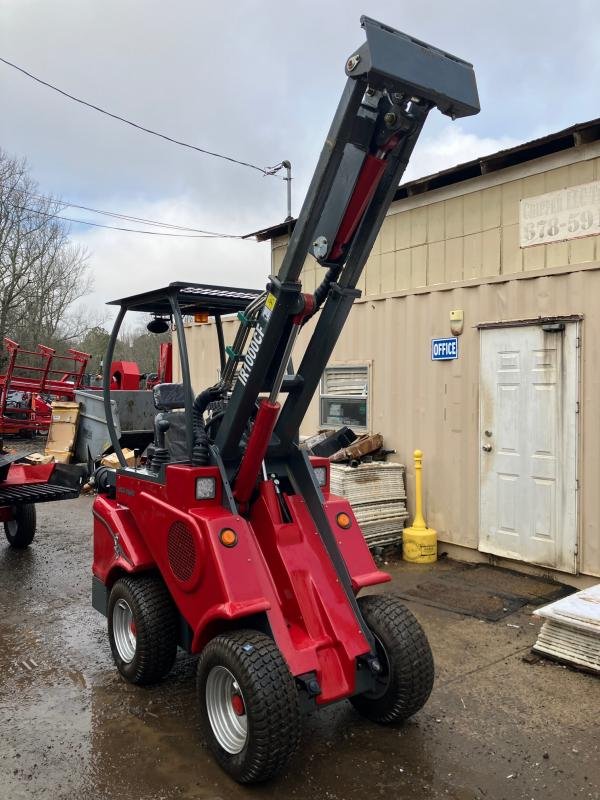

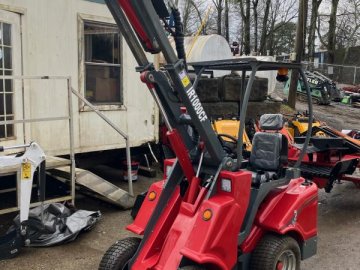

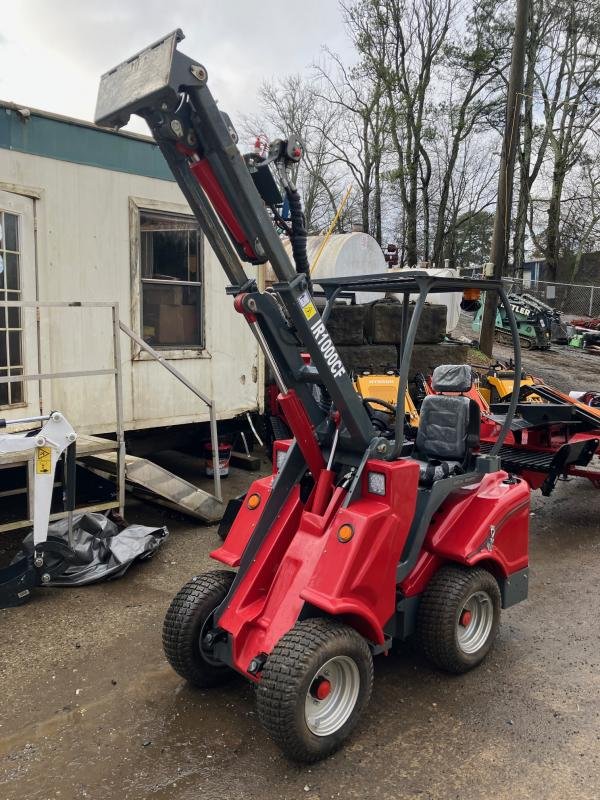

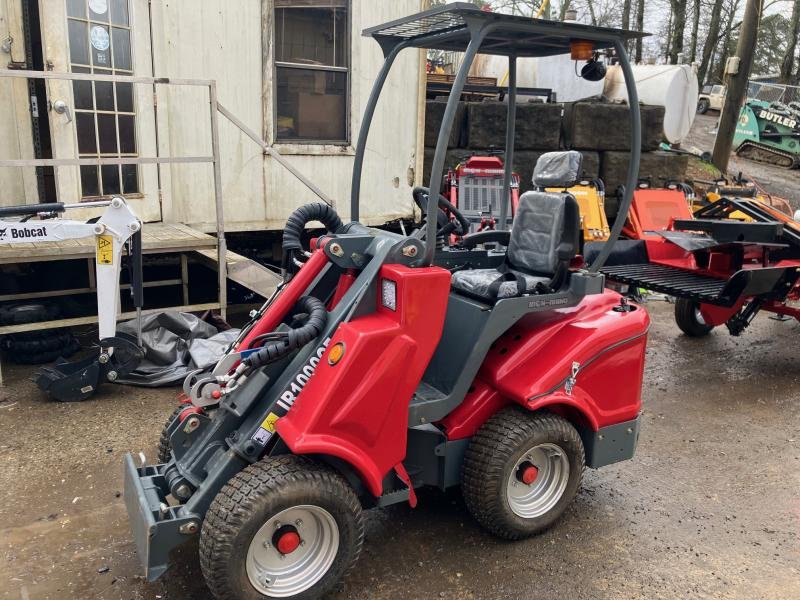

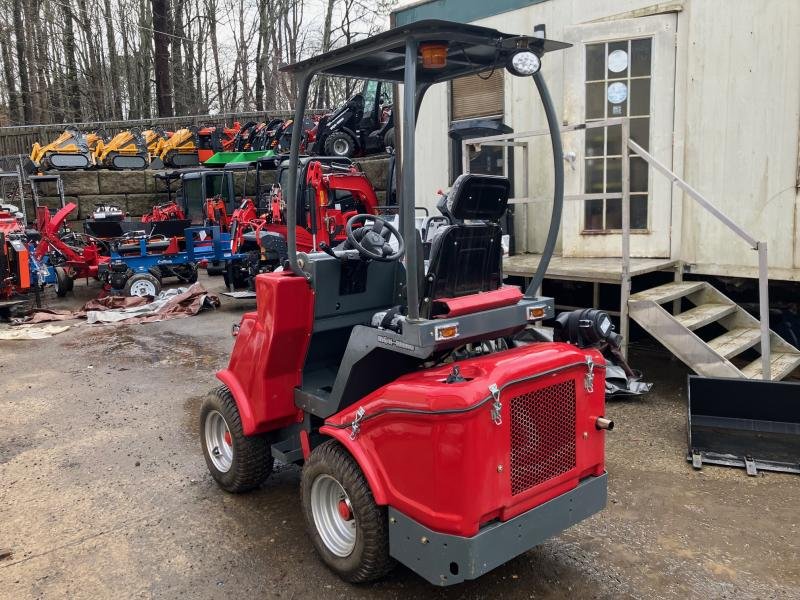

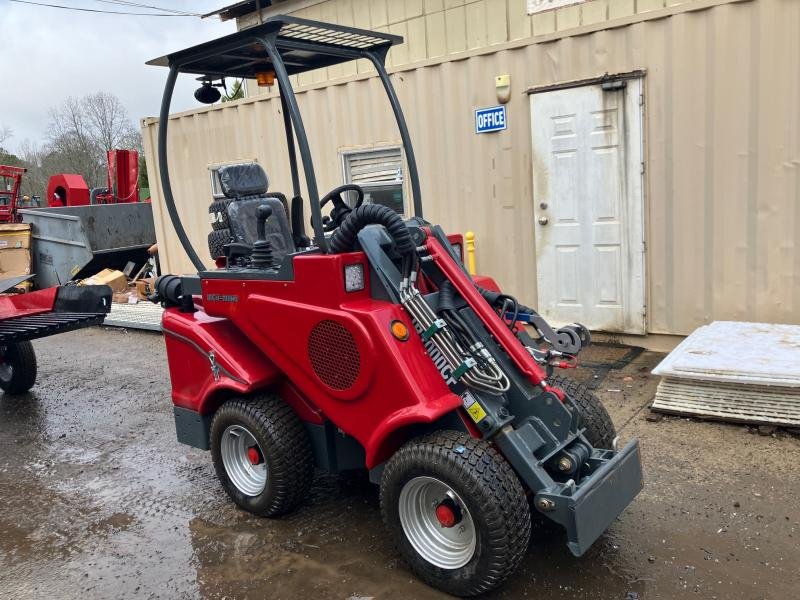

Telescopic Front Cab Machine
Compare to Avant 423 at about $35,000
25HP Kubota Diesel
A 2425 lbs machine with a 1000 lbs rated operating capacity.
Mid Tip with 2 counterweights 21" out on 42" forks is 1154 lbs with no tele.
91.5" Hinge Pin Retracted
109" Hinge pin extended, tele adds 17.5 inches to additional forward reach (lift capacity reduced when tele is extended)
39" Wide with 8.5" Wide Tires
Tip Weights with Standard 2 Counterweights
1460 lbs Low Lift Tip 21" out on 42" Forks No Tele
758 lbs Low Lift Tip 21" out on 42" Forks At Full Tele
1154 lbs Mid Lift Tip 21" out on 42" Forks No Tele
686 lbs Mid Lift Tip 21" out on 42" Forks At Full Tele
3990 lbs Low Lift Tip at plate No Tele
1652 lbs Low Lift Tip at plate Full Tele
2674 lbs Mid Lift Tip at plate No Tele
1410 lbs Mid Lift Tip at plate Full Tele
1000 lbs is Retracted Operating Capacity, Capacity is greatly reduced when telescoped out.
1916 lbs Draw Bar Pulling force
Road Lights with Turn Signals and Work Lights
Dingo Size Plate
Specs:
Length: 86.4" without counterweights
Width: 39"
Height: 86.4"
Tires: 23x8.5-12
Transmission: Hydrostatic Drive
Drawbar Pull: 1916#
Max Drive Speed: 6.2 MPH
Aux: 8.7GPM at 190 bar
Turning Radius Inside/Outside: 39.6"/92.8"
Hinge Pin: 91.5"/109"
Engine: Kubota D1105
Power: 8.5KW/25.4hp
