2025  Intrepid  KM180 TELE  - KM180TELE

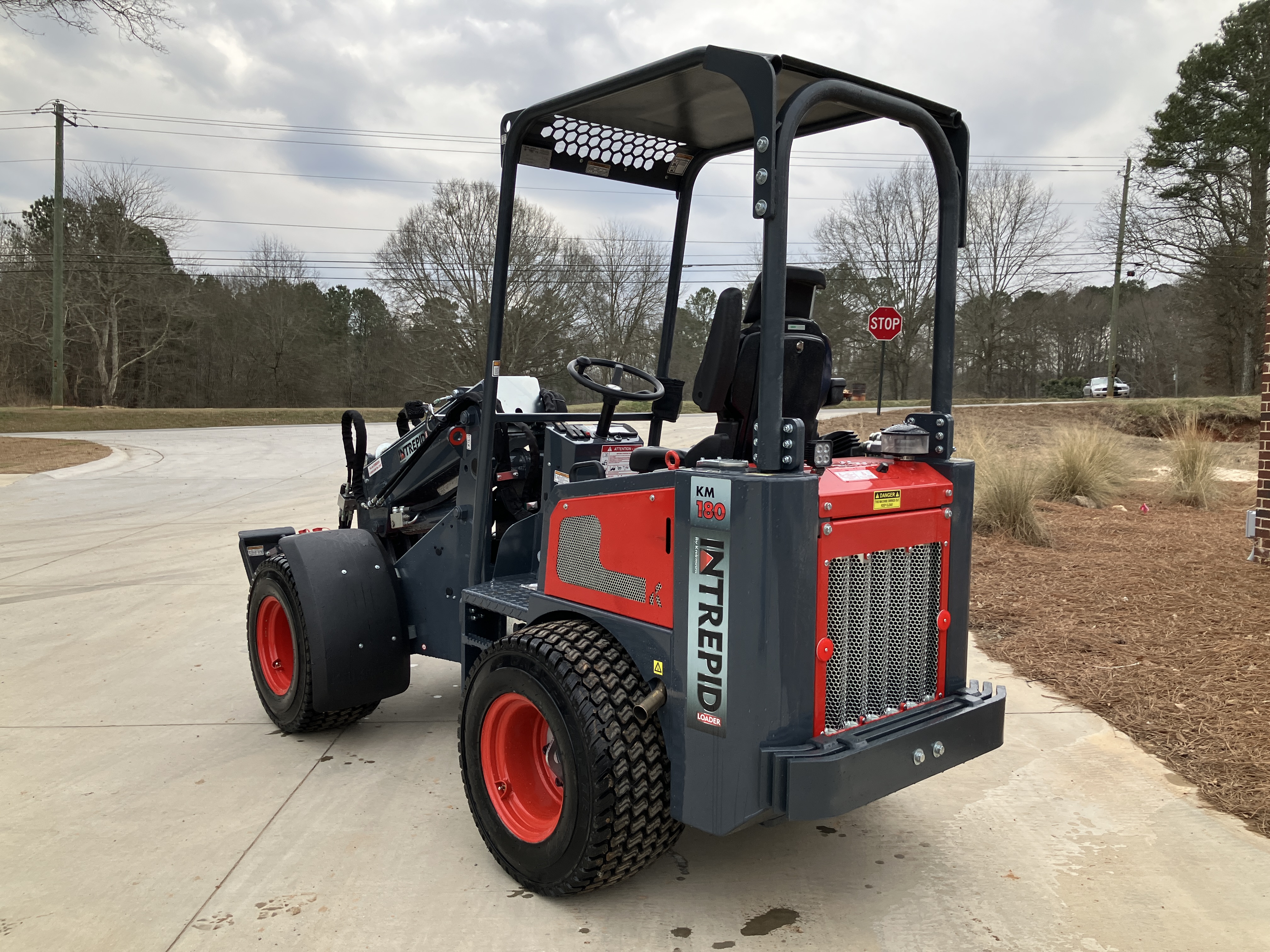

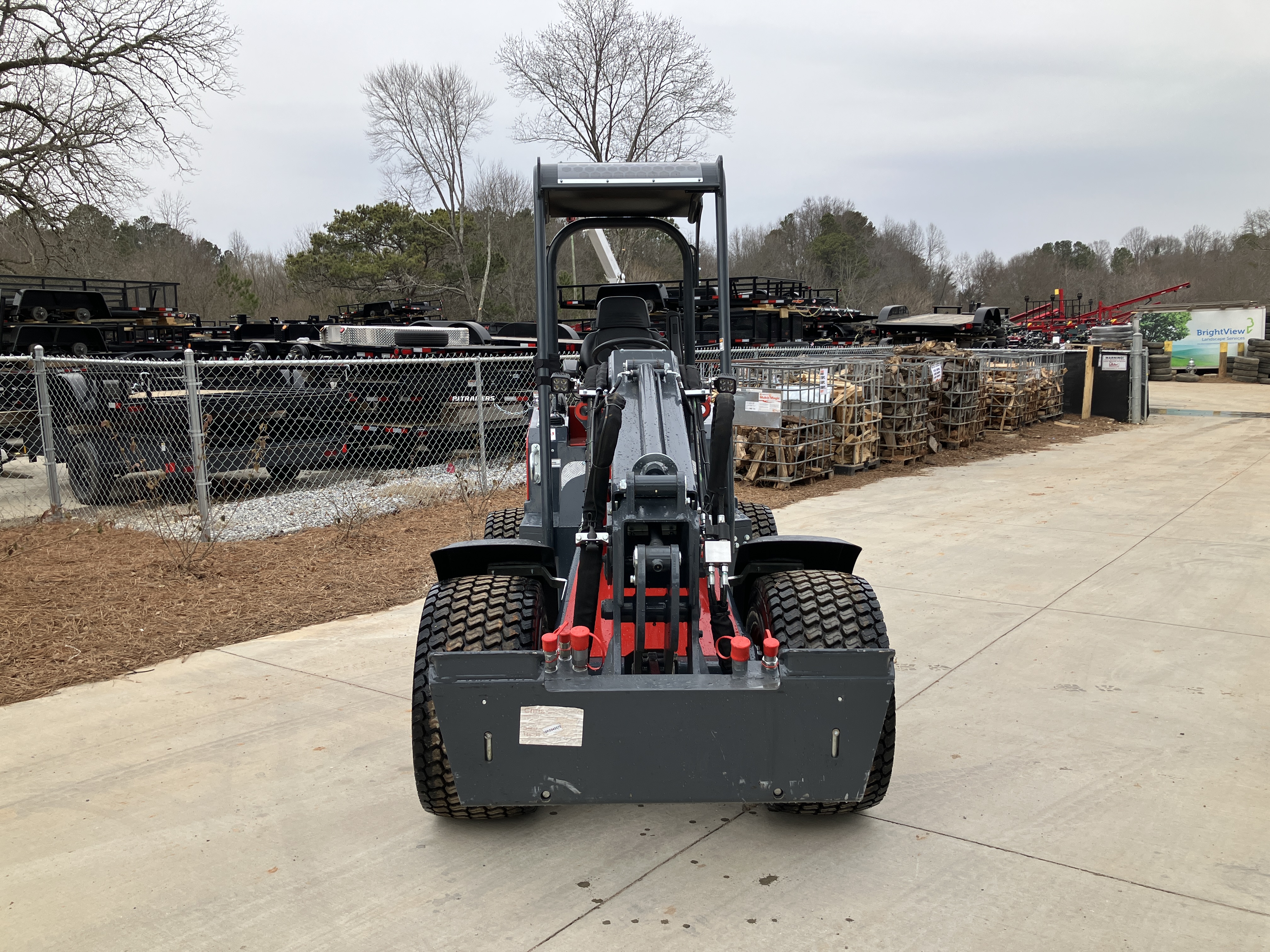

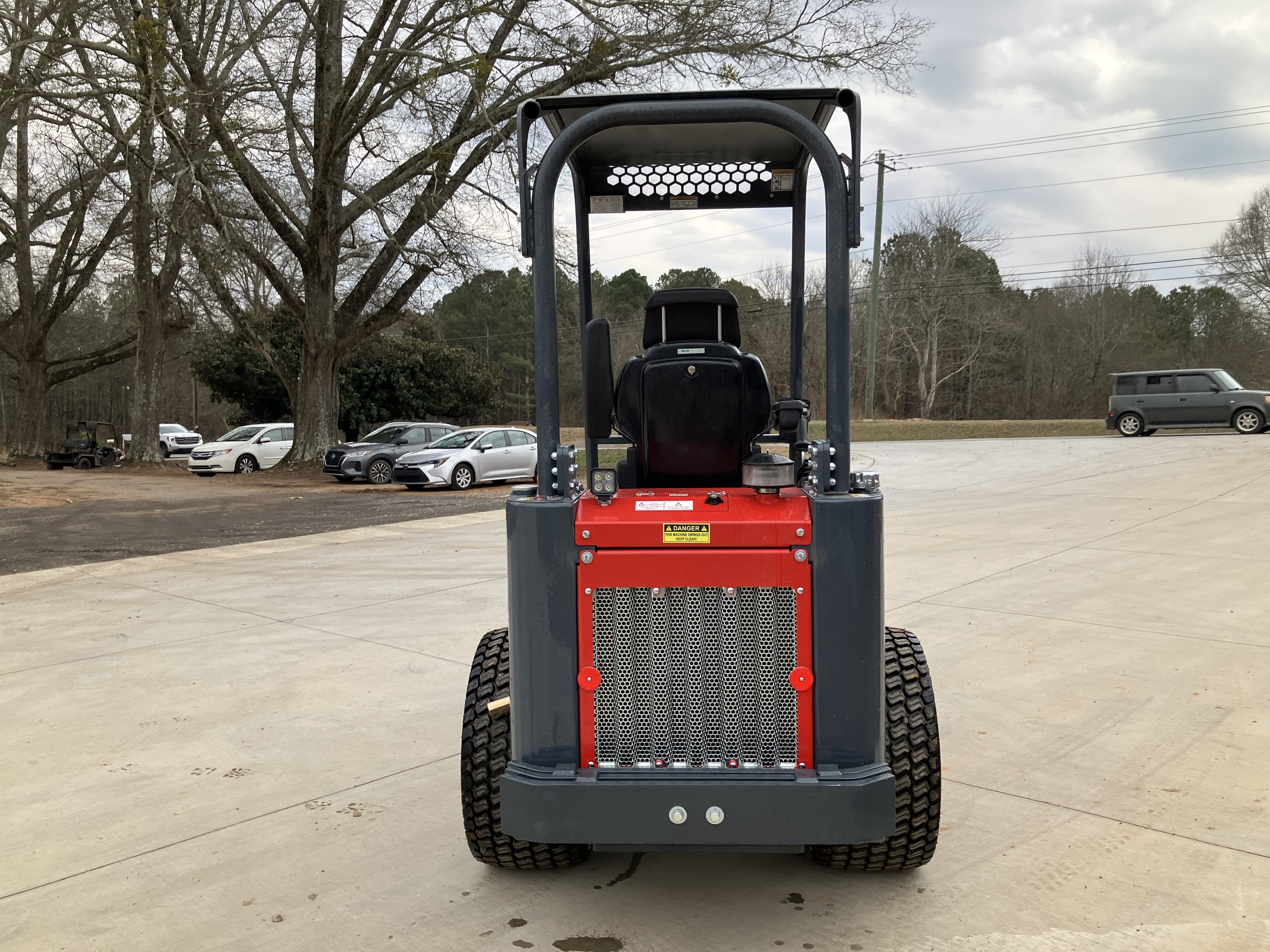

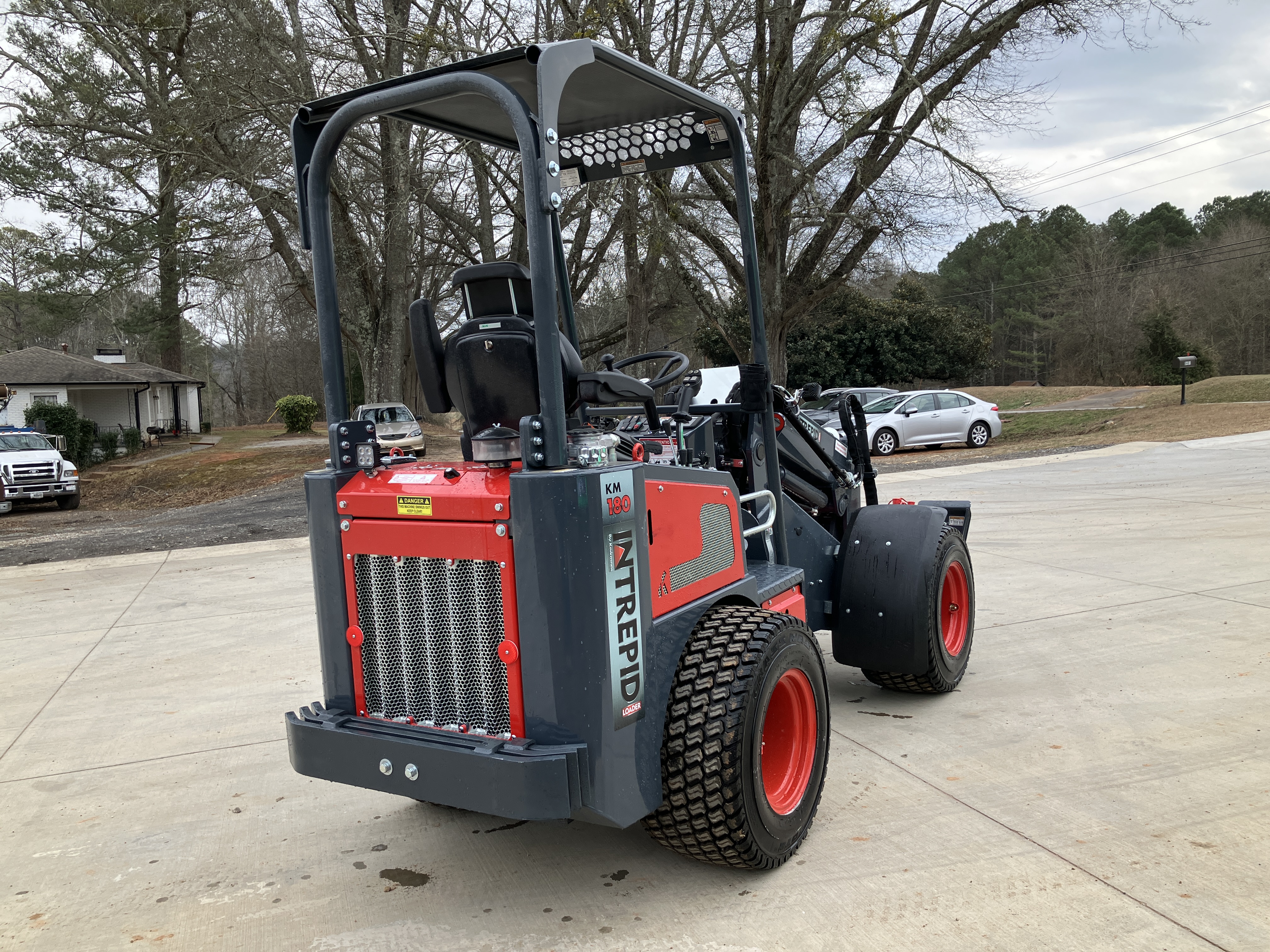

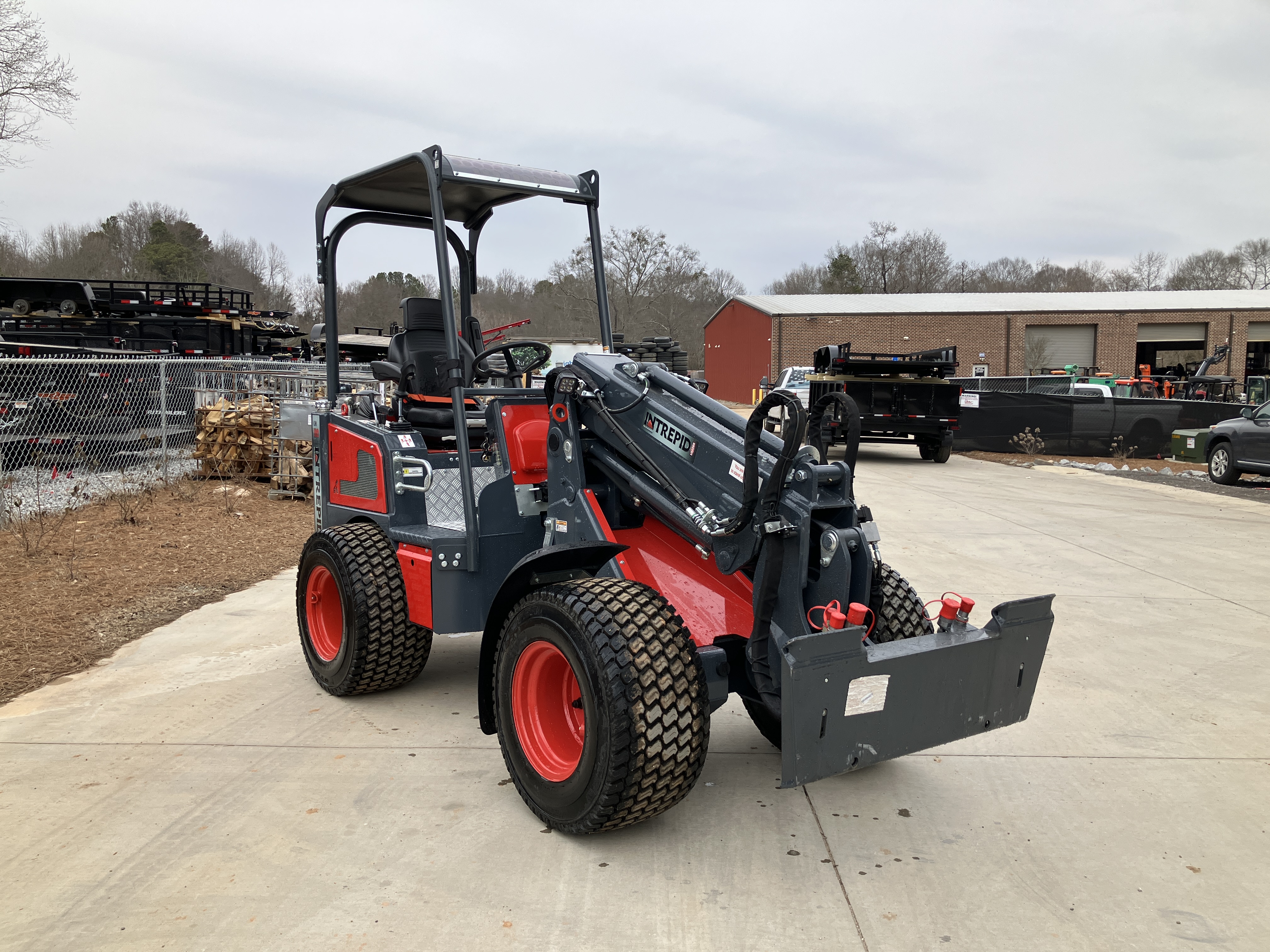

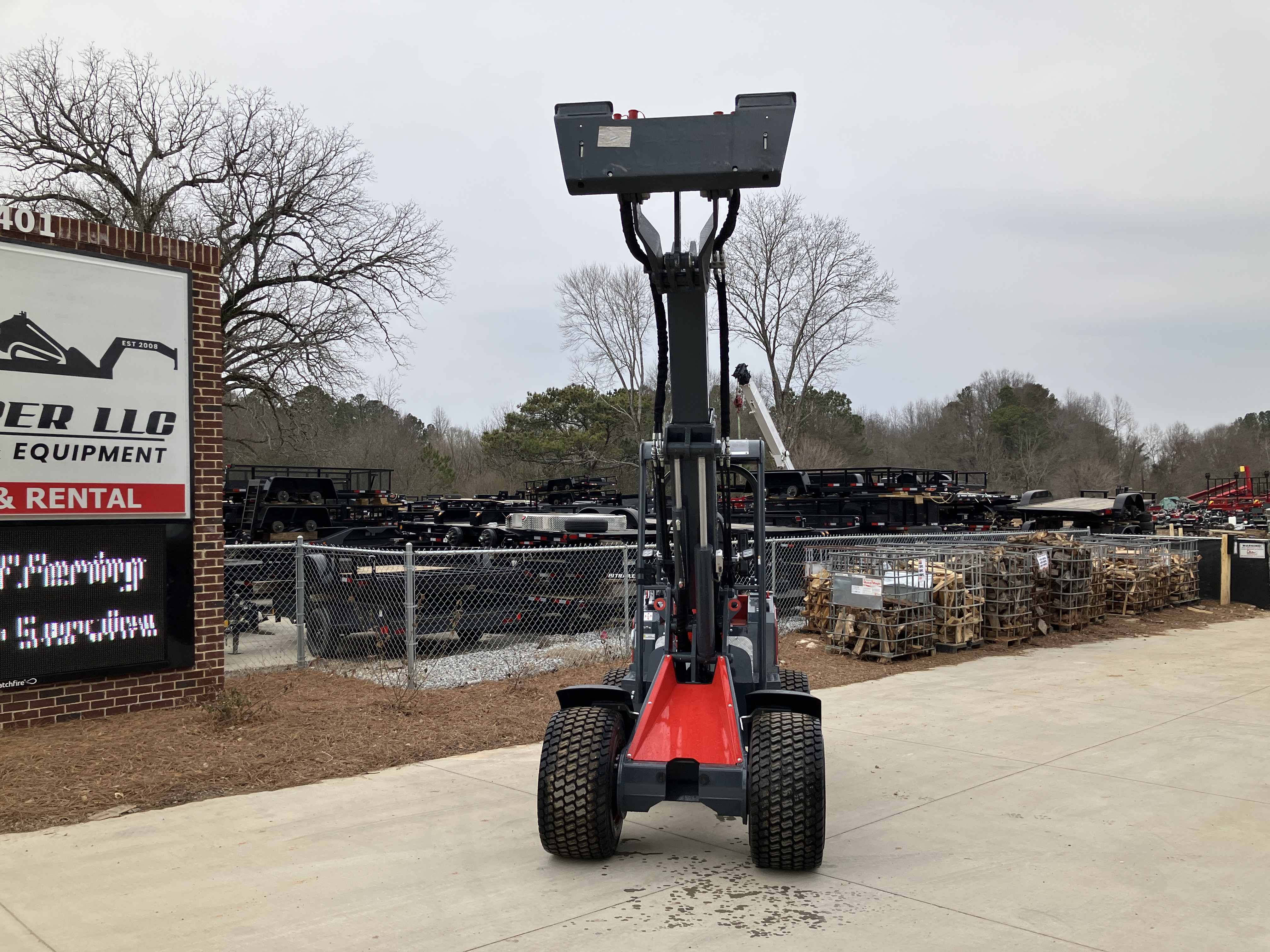

The Intrepid KM180 Tele is a powerful, compact wheel loader weighing 5000 lbs. A quiet 43 HP Yanmar engine (diesel) provides plenty of torque and power to the hydraulic system. The telescoping boom allows it to lift up to 10.8 ft, reach over and into trailers or fences, or push materials away. With a rated operating capacity of 2535 lbs, this loader can pick up pallets of pavers, heavy logs or buckets of sand. All functions (forward/reverse, auxiliary hydraulics, boom) or operable in the joystick. A left and right foot pedal operate as inching pedal and throttle pedal, respectively. All Intrepid loaders except the KM85 are equipped with a hand throttle, allowing the operator to set the RPM manually. Combined with a hydraulic hold/detent, Intrepid loaders are well suited for rotary attachments like augers, sweepers, and cutters. The KM180 Tele compact loader is manufactured in Belgium by Knikmops.

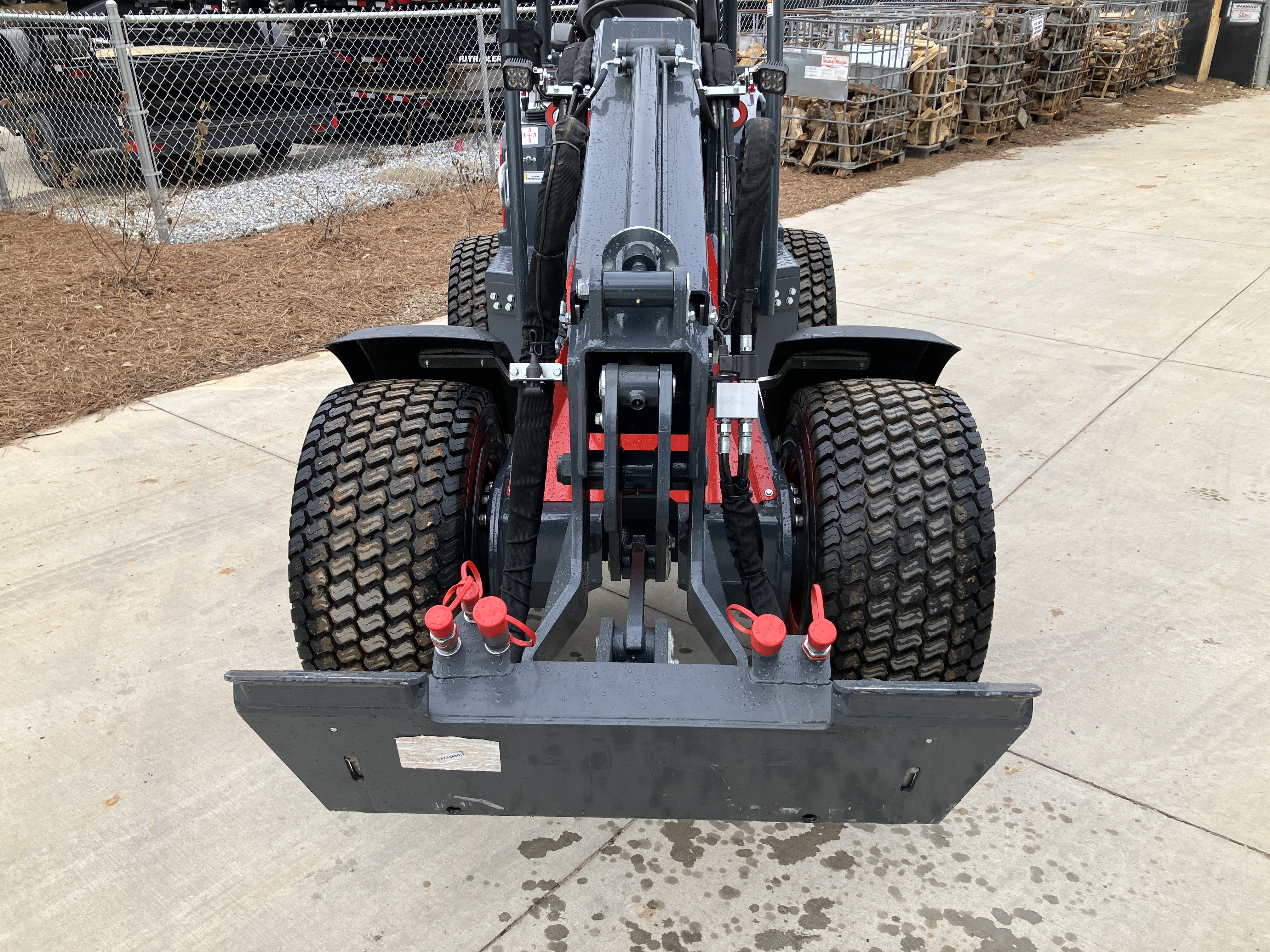

• Universal mount, hydraulically locking (full-size skidsteer)
• Two sets of dual action hydr. valve to the front, electr. operable in joystick. 1/2″ flat face
• Case drain connection (3/8″)

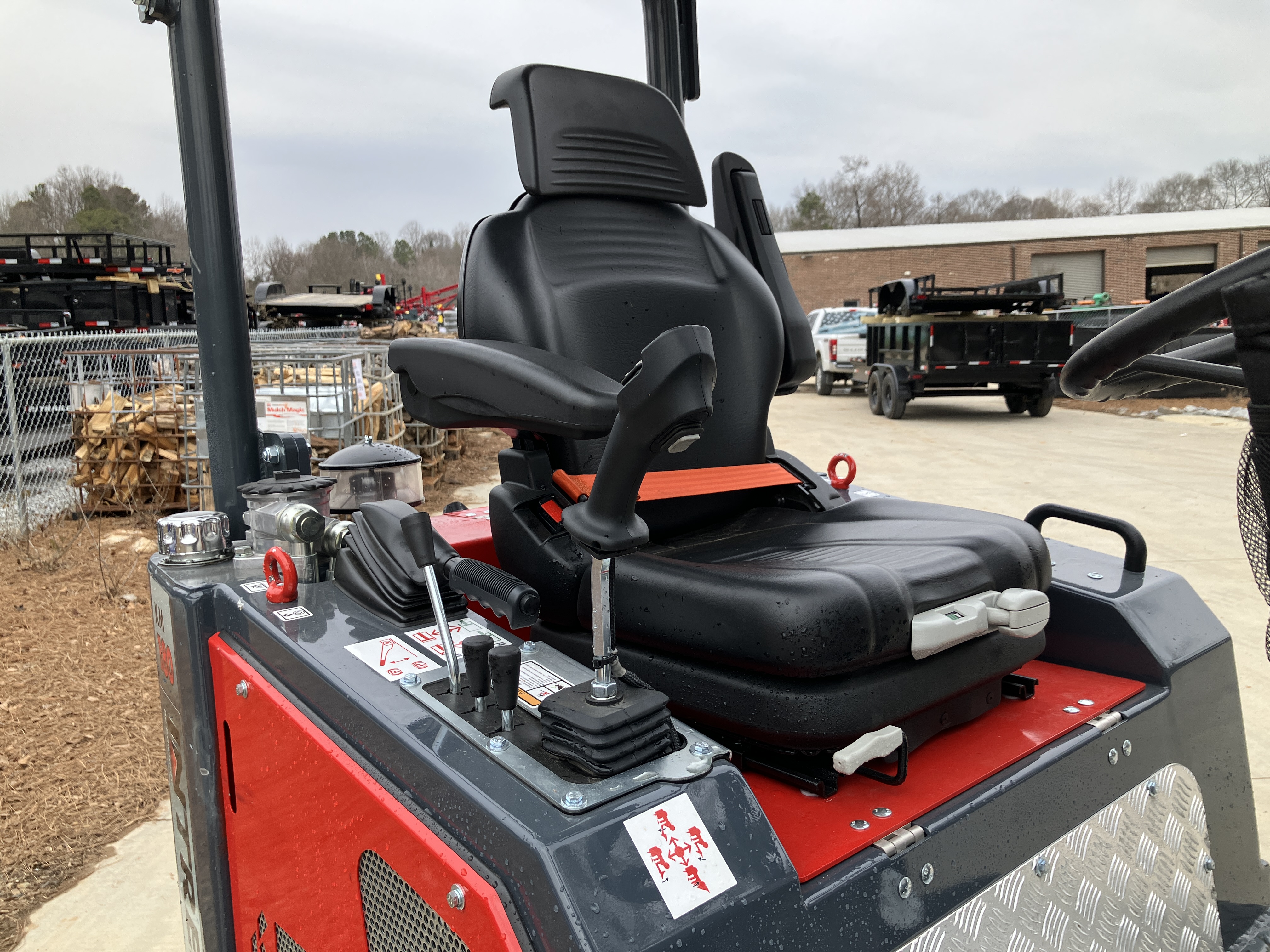

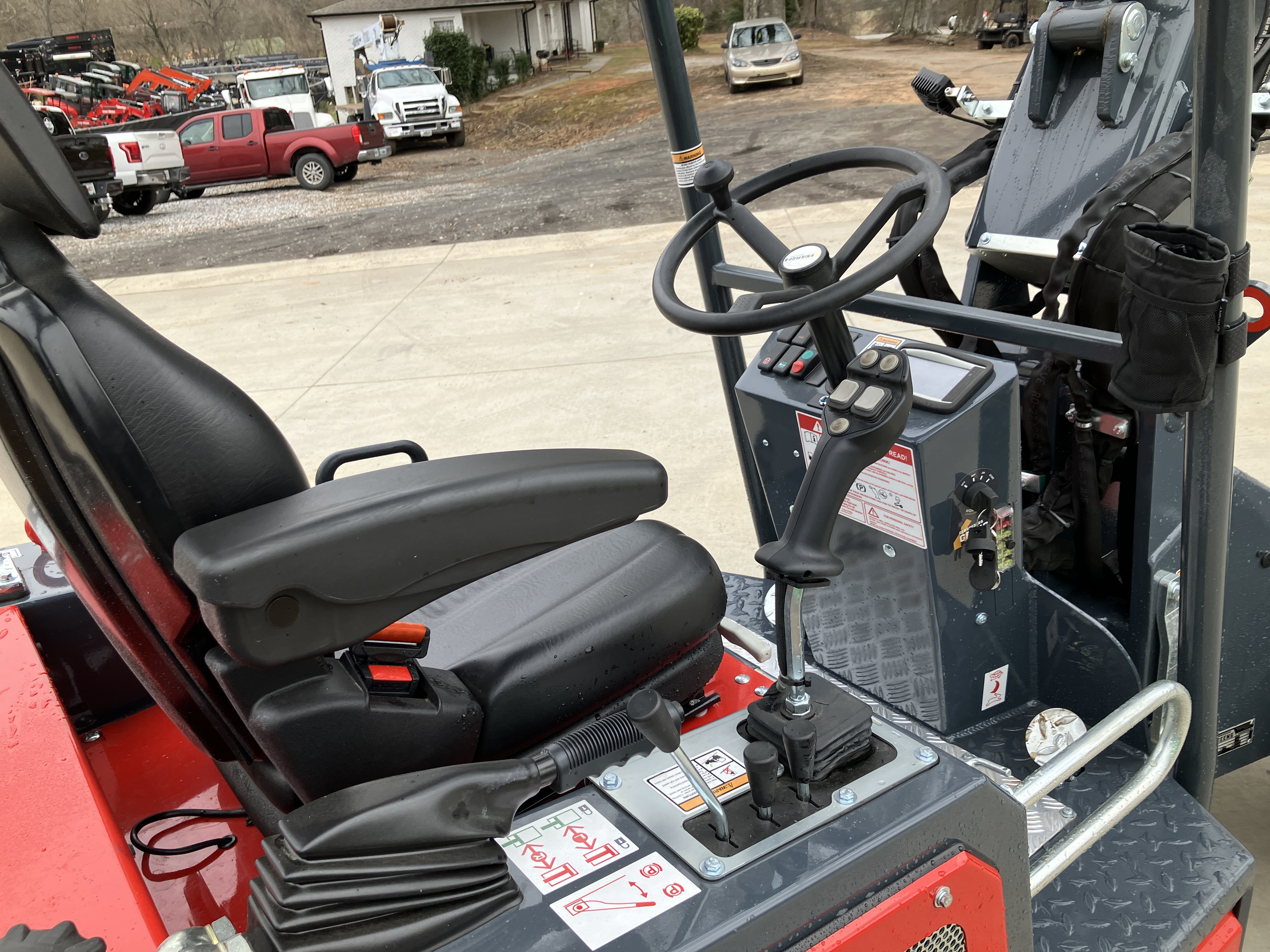

• All-function joystick (Bosch-Rexroth)
• Hand throttle to set RPM (if not set, RPM determined by foot pedal)
• Tire size (standard): 31×15.50×15 (59 in. total width)
• LED work lights
• Additional counterweights (mounted as bumper on back)
• Electronic differential lock
• 12V plug to the front, operable as button on joystick
• Back-up alarm
• Open ROPS/FOPS (cabin with heat & AC optional)
• 2-speed, max 12.5 mp/h

  Specifications

  Engine:
  43HP Yanmar (3 cyl. 3TNV86CT)
  Service Weight:
  5000 lbs. (incl. 3x 77 lbs. counterweights)
  Lifting capacity:
  2866 lbs. (no counterweights)
  Lifting capacity, 20″ in front of wheels:
  2535 lbs. (no counterweights)
  Driving speed:
  0-12.5 mp/h
  Lifting height (hinge point):
  130 in. / 10.8 ft.
  Length without attachment:
  127.5 in. / 10.6 ft.
  Width:
  59 in.
  Driving hydraulics:
  4 independent hydraulic wheel-motors
  Work hydraulics:
  13.2 GPM / 2600 PSI
