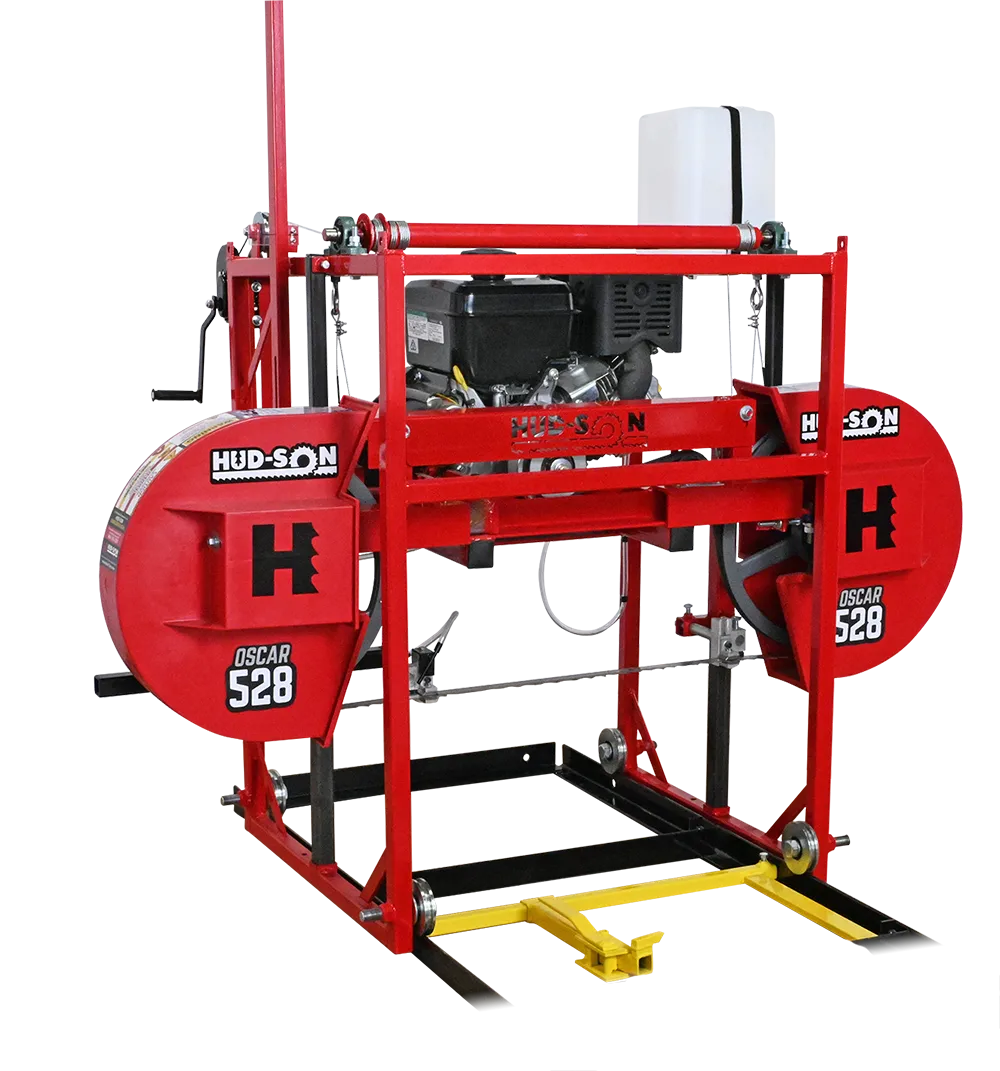

The Oscar 528 is the first in the Oscar line of sawmills. Powered by a stout 14 horsepower electric start gas motor, this mill will muscle through the cut with ease. The unit uses the same large diameter clutch we run on our larger mills to give trouble free service and longevity. This sawmill has a manual winch to set your depth of cut and has the dual scale system to allow for maximum versatility in cutting dimensional lumber. The mill is also manual feed through the cut. All you have to do is gently push on the carriage. As in the entire Oscar sawmills this mill has a moveable guide tube that allows you to keep the band blade guides close to the wood for maximize accuracy.
-
Max Log Capacity
28″ Diameter
-
Distance Between Guide
24″
-
Max Thickness of Cut
9″
-
Standard Track Length
18′ / 3 – 6′ Steel Sections
-
Log Dogs
2 Cam Style Dogs & Square Posts
-
Max Log Length (with standard track)
15′
-
Blade
132 X 1.25 X .035″
-
Blade Lubrication
5 Gallon
-
Track Sweeps
Standard
-
Frame
4 Post with Lift Tubes
-
Bandwheels
16″
-
Guide System
Dual Shoe Guides, 1 Adjustable
-
Lift System
Lift Bale
-
Measuring
Dual Scale 1″and 4,5,6,8 Quarter
-
Main Bearings
1.5″
-
3-Year Limited Warranty
Residential Use
-
6-Year Warranty
Main Shafts and Bearings
