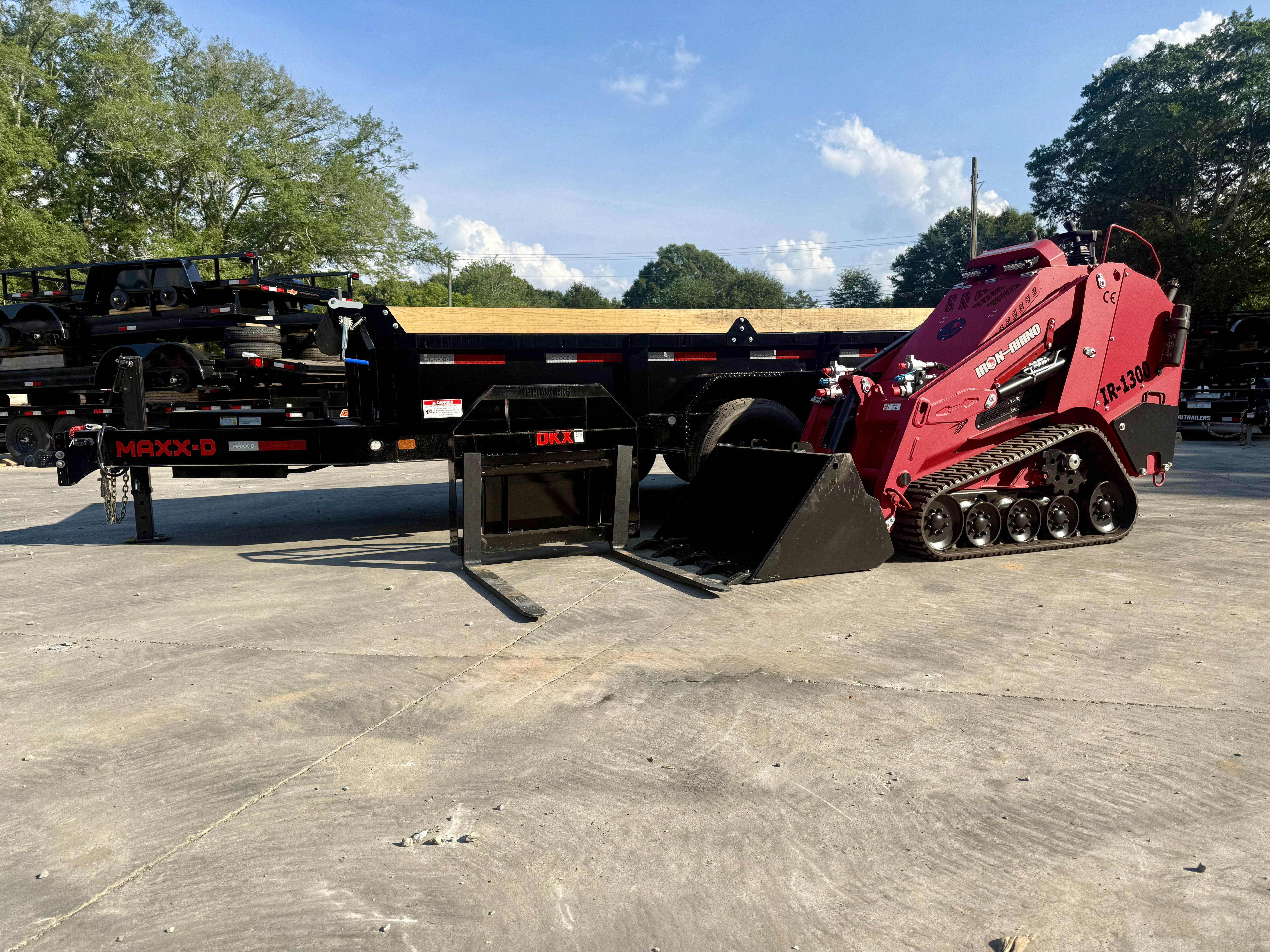

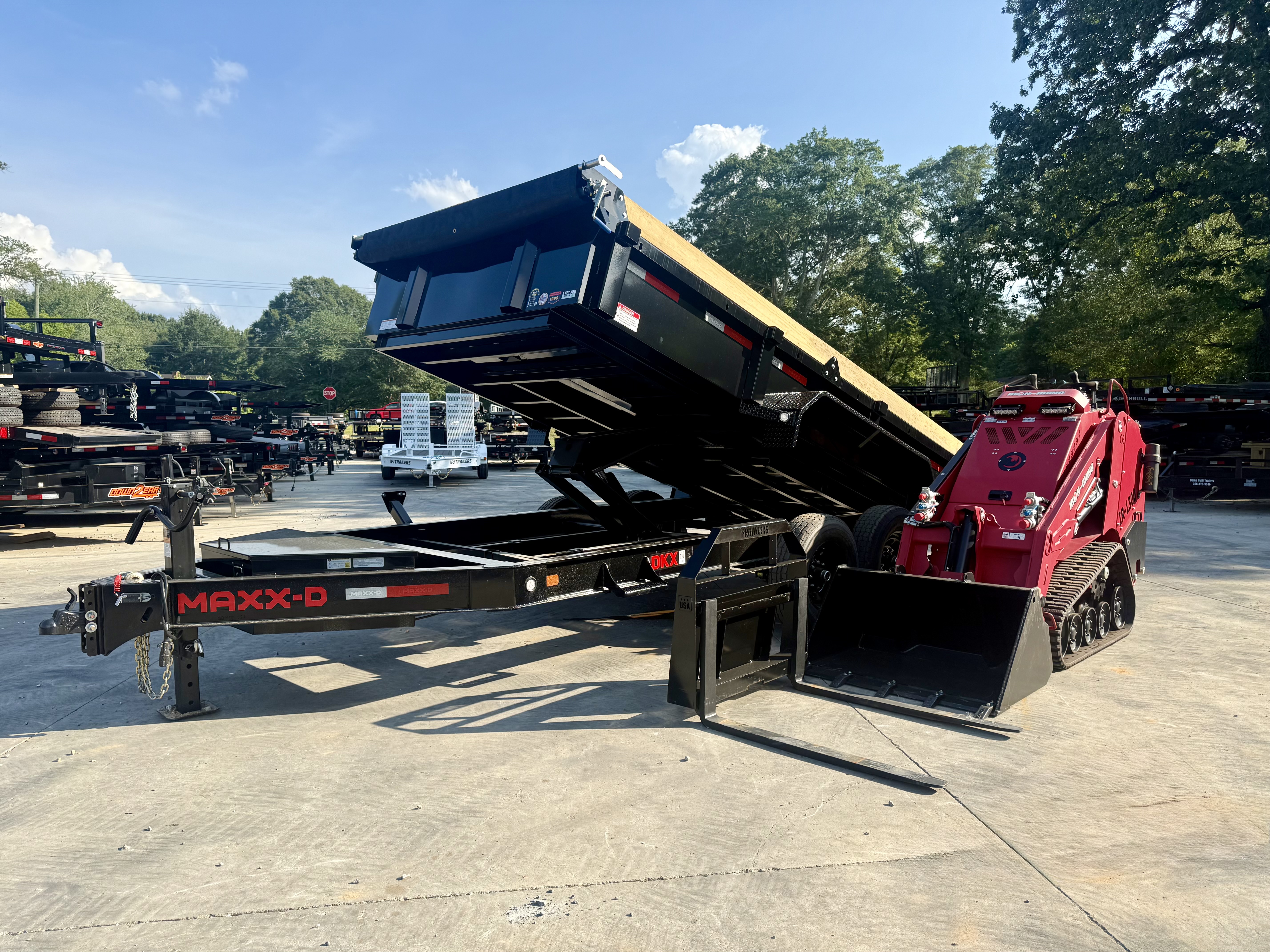

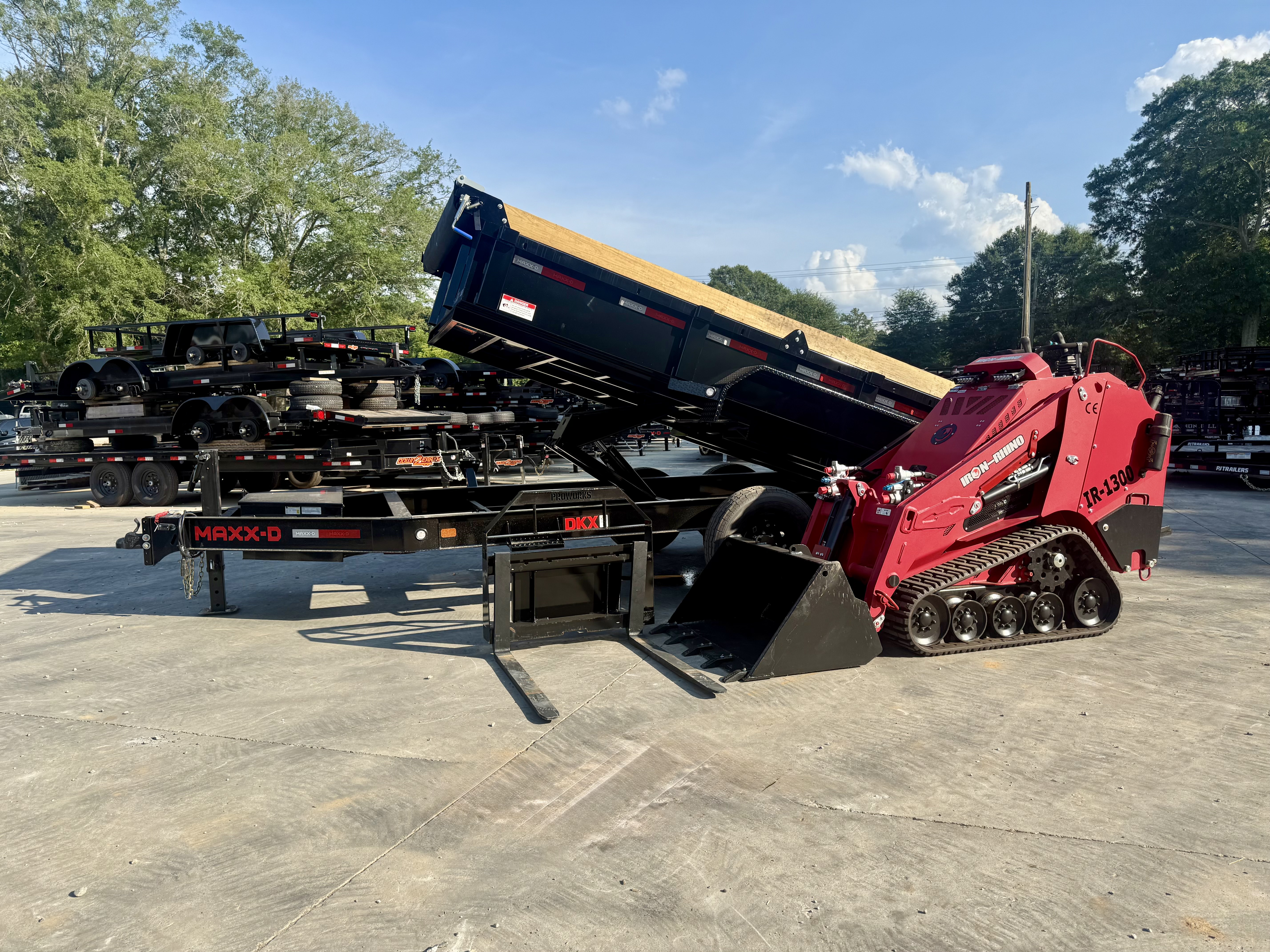

2024  Iron Rhino  IR1300 Mini Skid Steer + MaxxD 14' Dump + Pallet Forks  Trailer&Equipment Bundle - IR1300+MAXXD+FORKS

Iron Rhino IR1300 Mini Skid Steer w/ Bucket and Pallet Forks + MAXXD Trailers  7x14 2ft 14k Dump Trailer Barn Door/ Spread Gate

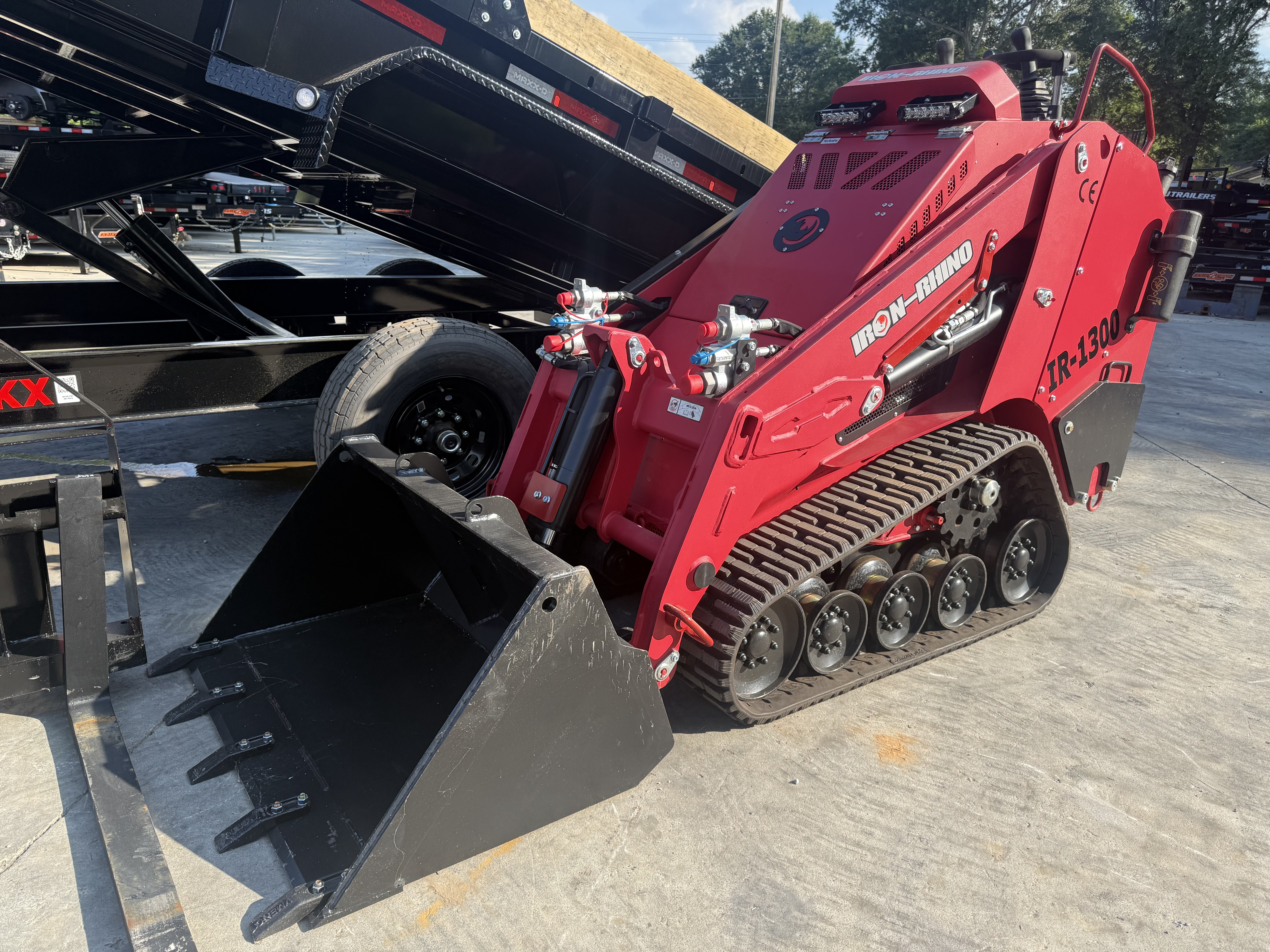

2024 Iron Rhino IR1300 Mini Skid Steer

• 25 HP Kubota D1703 Diesel Engine
• Poclain Drive Motors
• 3638 lbs. machine weight with bucket
• 1400 lbs. Operating Capacity @35% Tip
• 4020 lbs. tip capacity
• 85" Hinge Pin Height
• 38" Wide with 9" Tracks
• 109" Overall Length with Bucket, 84" without Bucket
• 65" Height
• 15.8GPM AUX Flow, 2610 PSI Hydraulic Pressure
• 2350 lbs. Draw Bar Pull
• 9.25" Ground Clearance
• (Bucket-42" Wide, 6" Cutting Edge 1/2" thick, 20" Height, 25" Depth, 1/4" steel wrap, 1/4" thick wear plate on bottom, 3/4" bucket edge, 1/4" angle supports behind plate and along the top edge of the bucket, Bolt on Teeth)
• 8.46 Gallon Fuel Tank Capacity
• 8.46 Hydraulic Tank Capacity
• Keyless Start with Password Protection
• Parking Brake
• Float
• Dual Hydraulics
• Arm Lock
• Work Lights Standard
• Fold Up Ride-On Platform
• Joystick Controls
• 1 Year/1200 Hour Warranty

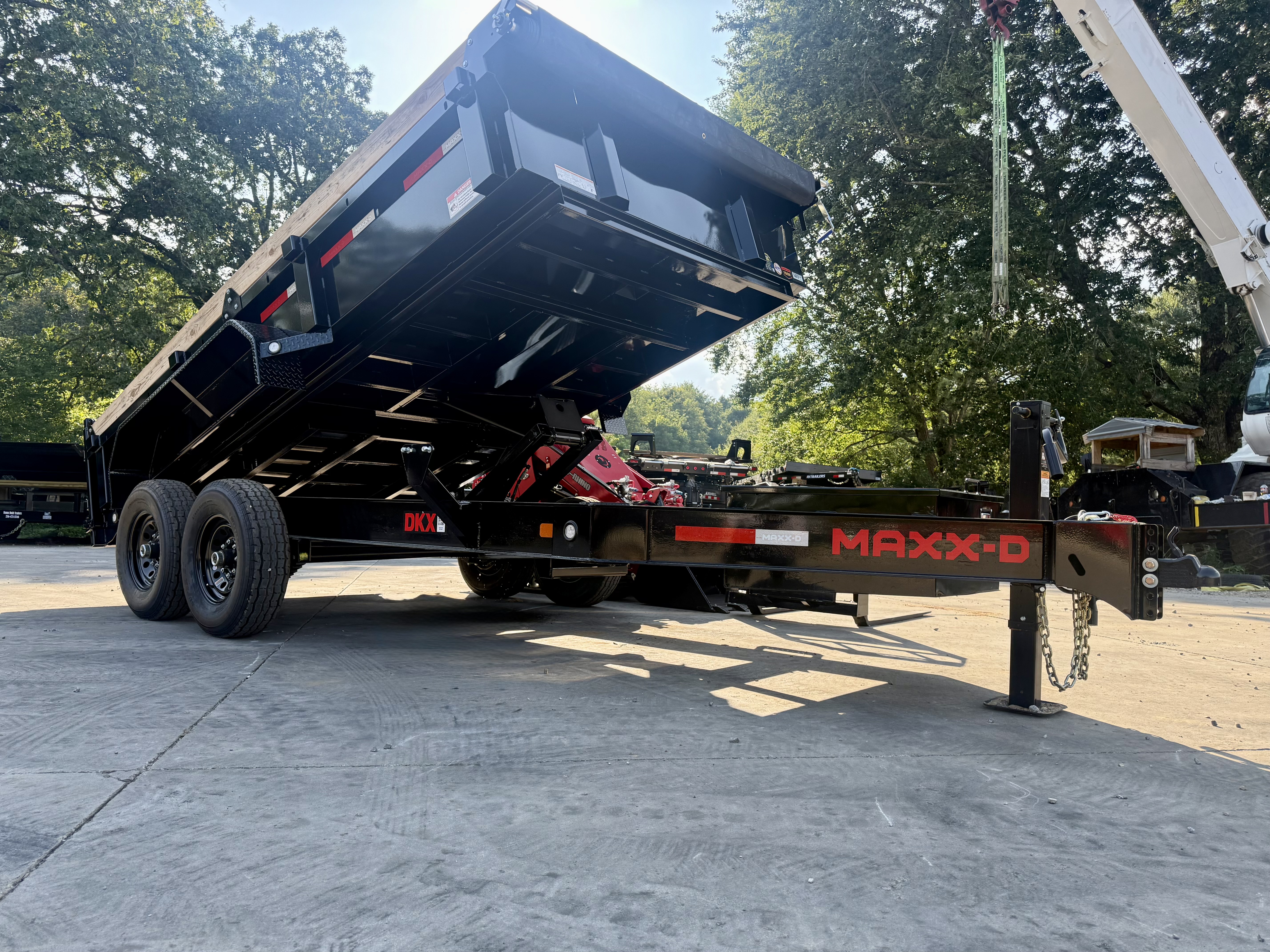

2025 MAXXD Trailers 7x14 2ft 14k Dump Trailer Barn Door/ Spread Gate

• Trailer Specifications:

  • Size: 7 ft x 14 ft

  • GVWR: 14,000 lbs

  • Sides: 18" steel sides with 6" removable boards

  • Tires: Heavy-duty 10-ply tires

  • Gate: Barn door & spreader combo for versatile dumping

  • Ramps: Onboard heavy-duty ramps – easy equipment loading

  • Tarp Kit: Installed roll-up tarp system included

  • Hoist: 5" scissor lift for powerful and reliable dump action

  • Crossmember Spacing: 16" for extra floor strength and durability

  • Toolbox: Oversized front toolbox for secure storage

  • Why Choose This Trailer?

    Perfect for construction, landscaping, farming, or general hauling. Built for strength and loaded with the features you need to get the job done efficiently and safely.
