2023  Iron Rhino  IR4000TELE Open Canopy Articulating Wheel Loader  - IR4000TELECANOPYKOHLER

## IR4000TELE Open Canopy, Kohler 74HP Diesel

## The specs on this loader are unbelievable! A 5577# machine with a 4000 rated operating capacity and a low tip measured at the plate over 9000#. As with any radial arm lifting loader its weakest point is at mid lift where the load is extended the max distance from the machine. Even at this point the tip is 6328# at the attachment plate and 4496# at 24" out on a set of standard pallet forks. That's just incredible!

## This loader can do it all. Light weight and easy on turf, able to lift heavy loads, for landscapers it's a less than 6000# machine that is comfortable lifting even wet heavy pallets of sod. Tree guys lift 4000# logs onto high sided log trucks. This is a beefy machine that can be pulled on a 10k rated trailer and a 1500 series truck. That's outstanding!

## 118" hinge pin retracted, 144" hinge pin extended, tele adds 30 inches of additional forward reach (lift capacity reduced when tele is extended)

## 61" Wide and low ground pressure with 15.5 Wide Tires available in Turf or AG tread pattern.

## Walk around, Review and Operation Video [https://youtu.be/N5G2ainAZZE](https://youtu.be/N5G2ainAZZE)

## 4976# Low Lift Tip 24" out on 48" Forks No Tele

## 4496# Mid Lift Tip 24" out on 48" Forks No Tele

## 2764# Mid Lift Tip 24" out on 48" Forks At Full Tele

## 5159# Low Lift Tip at plate Mid Tele

## 4216# Low Lift Tip at plate Full Tele

## 6328# Mid Lift Tip at plate No Tele

## 5284# Mid Lift Tip at plate Mid Tele

## 3864# Mid Lift Tip at plate Full Tele

## 6648# High Lift Tip at plate No Tele

## 5112# High Lift Tip at plate Mid Tele

## 3978# High Lift Tip at plate Full Tele

## 4000# Retracted Operating Capacity

## 3746# Draw Bar Pulling force with two speed transmission, up to 14.9MPH High, up to 7.45MPH Low

## Road Lights with Turn Signal LED Work Lights

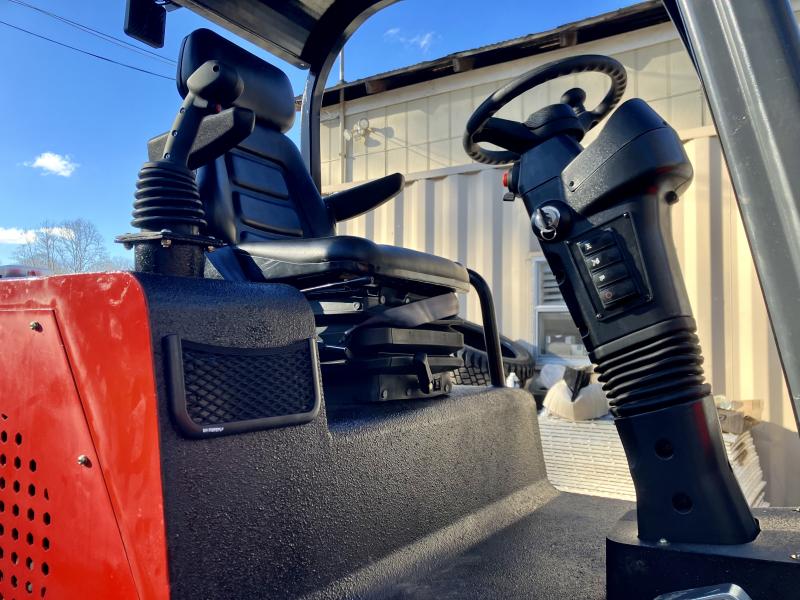

Auxiliary and Hydraulic Quick attach controlled from joystick

## Uses Skid Steer style attachment plate capable of connecting to full-size attachments

## Double stack pump standard with 13.2 GPM Low Flow, 26.4 GPM High Auxiliary Flow

## One-year parts and labor warranty.
