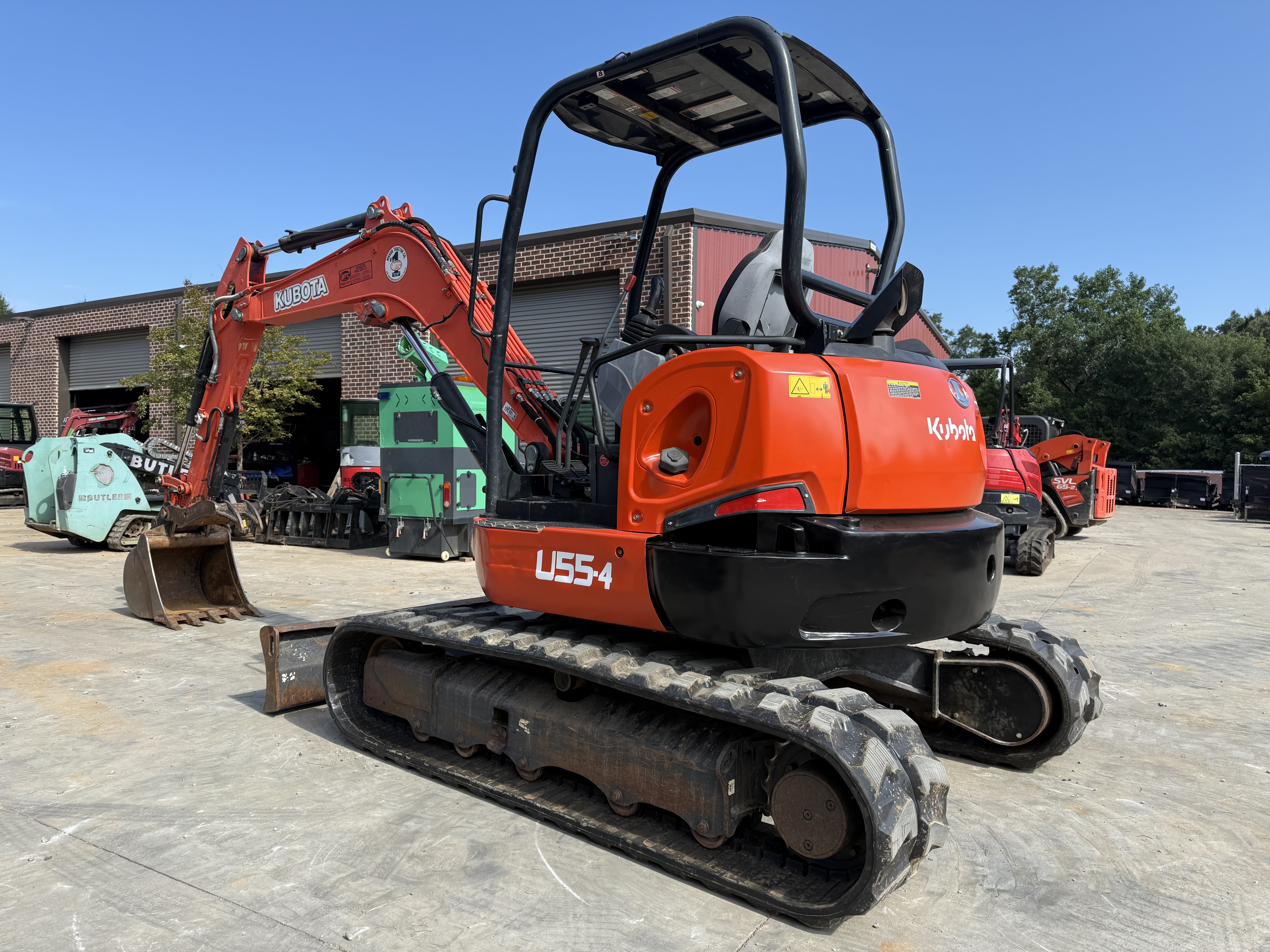

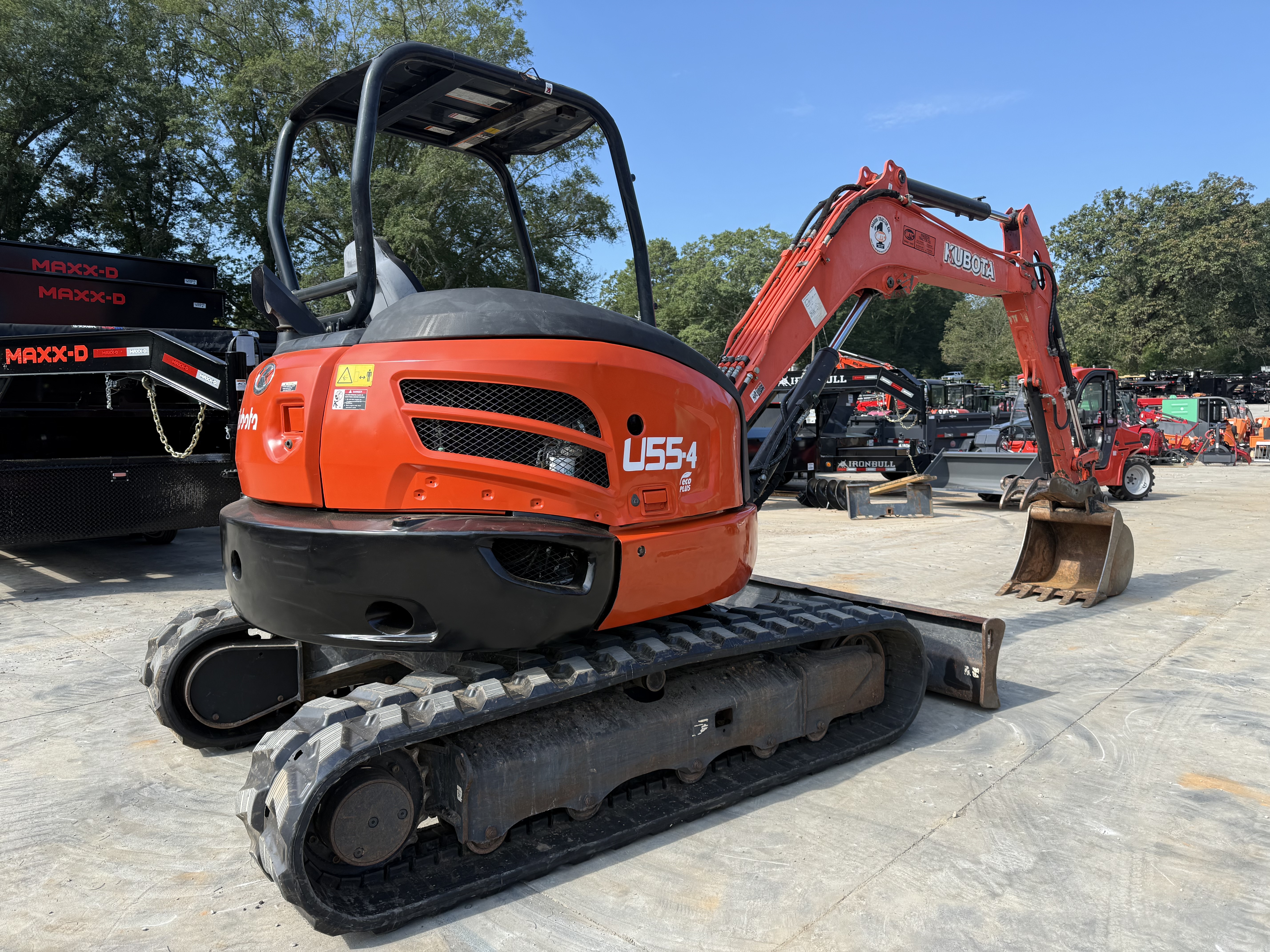

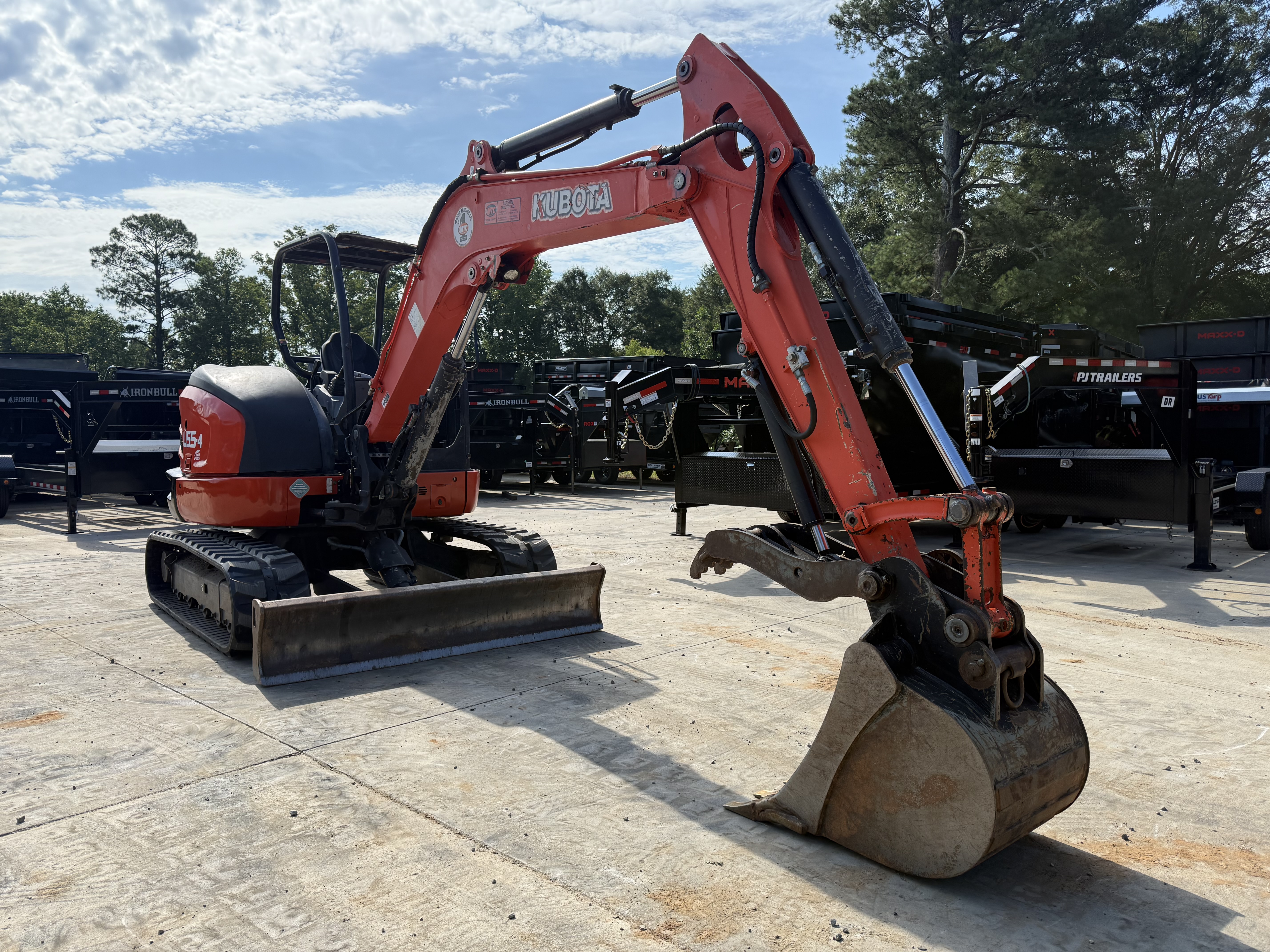

2019  Kubota  U55  - RentalU55-4

##2019 Kubota U55-4 with Approximately 1988.5 hours, Hours may go up as this is a rental machine.

Free Delivery to South East States, Discount for pickup

Comes with 12,"24," and 36" Bucket, manual quick coupler

Sold As-Is with No Warranty remaining

Hydraulic thumb

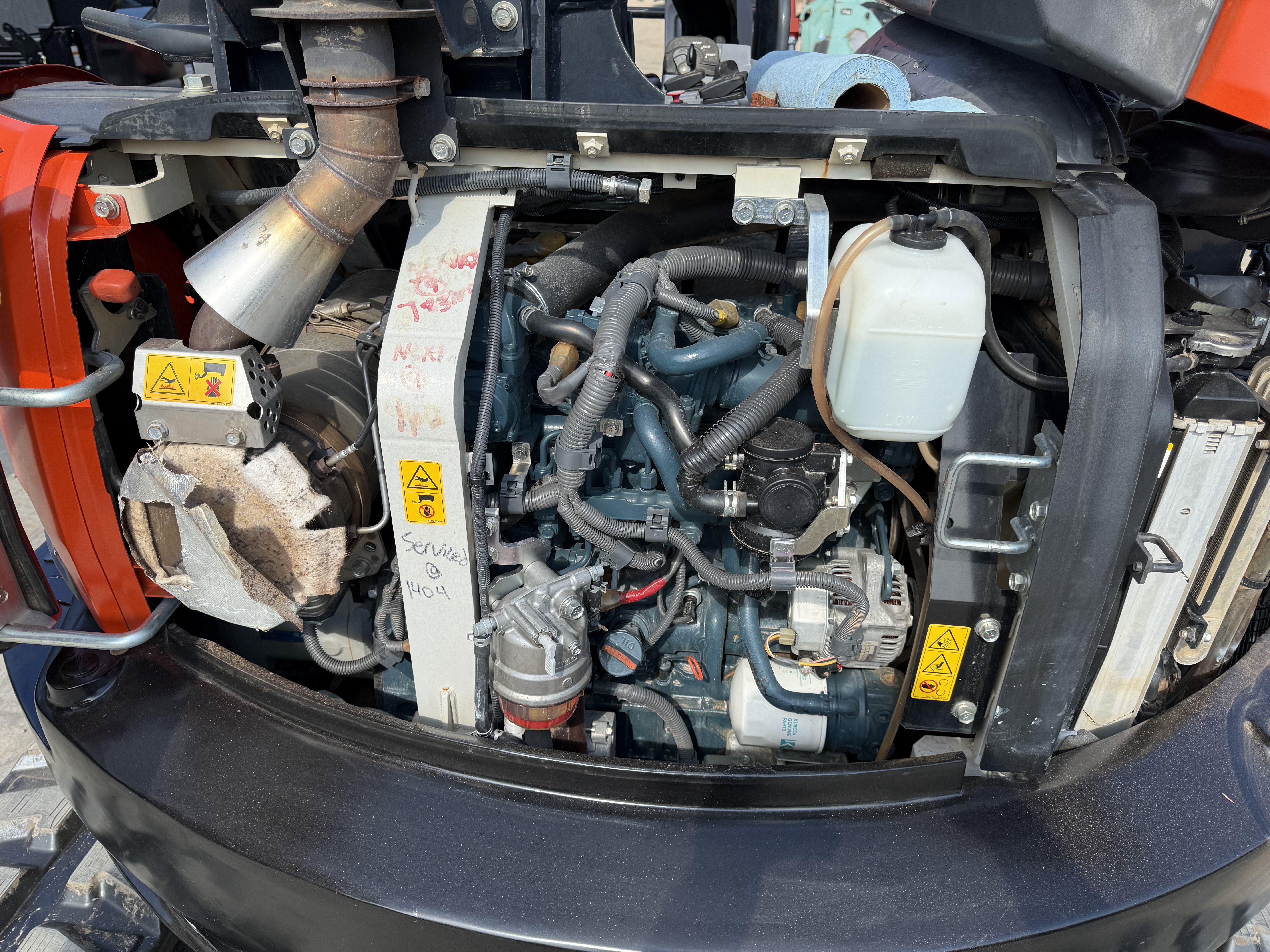

🔧 Engine & Performance

• Engine Model: Kubota V2607-CR-E4

• Gross Power: 47.6 hp (35.5 kW) @ 2,200 rpm

• Net Power: 45.2 hp (33.7 kW) @ 2,200 rpm

• Displacement: 159.6 cu. in. (2,615 cc)

• Fuel Tank Capacity: 18.0 gal (68 L)

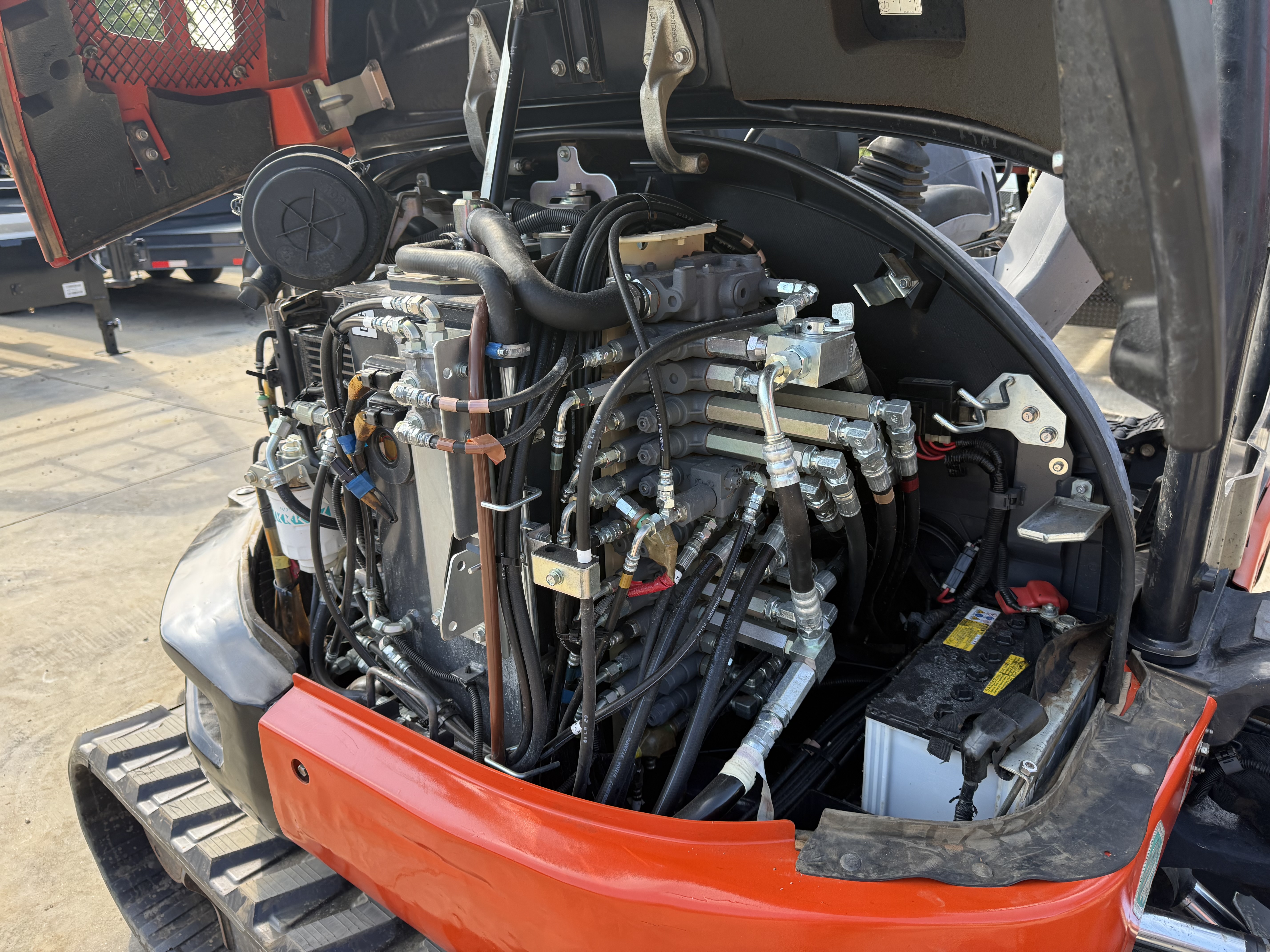

🏗️ Hydraulic System

• Main Pump Capacity: 14.8 GPM (56.1 L/min) × 2 (variable) + 9.8 GPM (37.0 L/min) × 1 (gear)

• Auxiliary Hydraulic Flow:

  • AUX1: 19.8 GPM (75 L/min)

  • AUX2: 9.8 GPM (37.0 L/min)

• Hydraulic Oil Reservoir: 11.9 gal (45 L)

• Total Hydraulic System Capacity: 20.9 gal (79 L)

📏 Dimensions & Weight

• Overall Length: 18'0.5" (5,500 mm)

• Overall Width: 6'5.2" (1,960 mm)

• Overall Height: 8'4.4" (2,550 mm)

• Ground Clearance: 1'0.2" (310 mm)

• Operating Weight:

  • Rubber Tracks: 11,915 lbs (5,405 kg)

• Tumbler Distance: 6'6.3" (1,990 mm)

• Crawler Length: 8'2.4" (2,500 mm)

• Shoe Width:

  • Rubber: 15.7" (400 mm)

🛠️ Performance & Reach

• Max. Digging Depth: 11'10.3" (3,615 mm)

• Max. Digging Height: 18'3.7" (5,580 mm)

• Max. Dumping Height: 13'2.3" (4,020 mm)

• Max. Vertical Digging Depth: 4'11.6" (1,515 mm)

• Max. Digging Radius:

  • At Ground Level: 19'6.1" (5,945 mm)

  • Maximum: 19'11.4" (6,080 mm)

• Max. Breakout Force:

  • Bucket: 11,177 lbs. (5,070 kgf)

  • Arm: 6,261 lbs. (2,840 kgf)

🚜 Mobility & Blade

• Travel Speed:

  • Low: 1.8 mph (2.8 km/h)

  • High: 3.1 mph (4.9 km/h)

• Max. Traction Force (Low Speed): 14,480 lbs. (6,567 kgf)

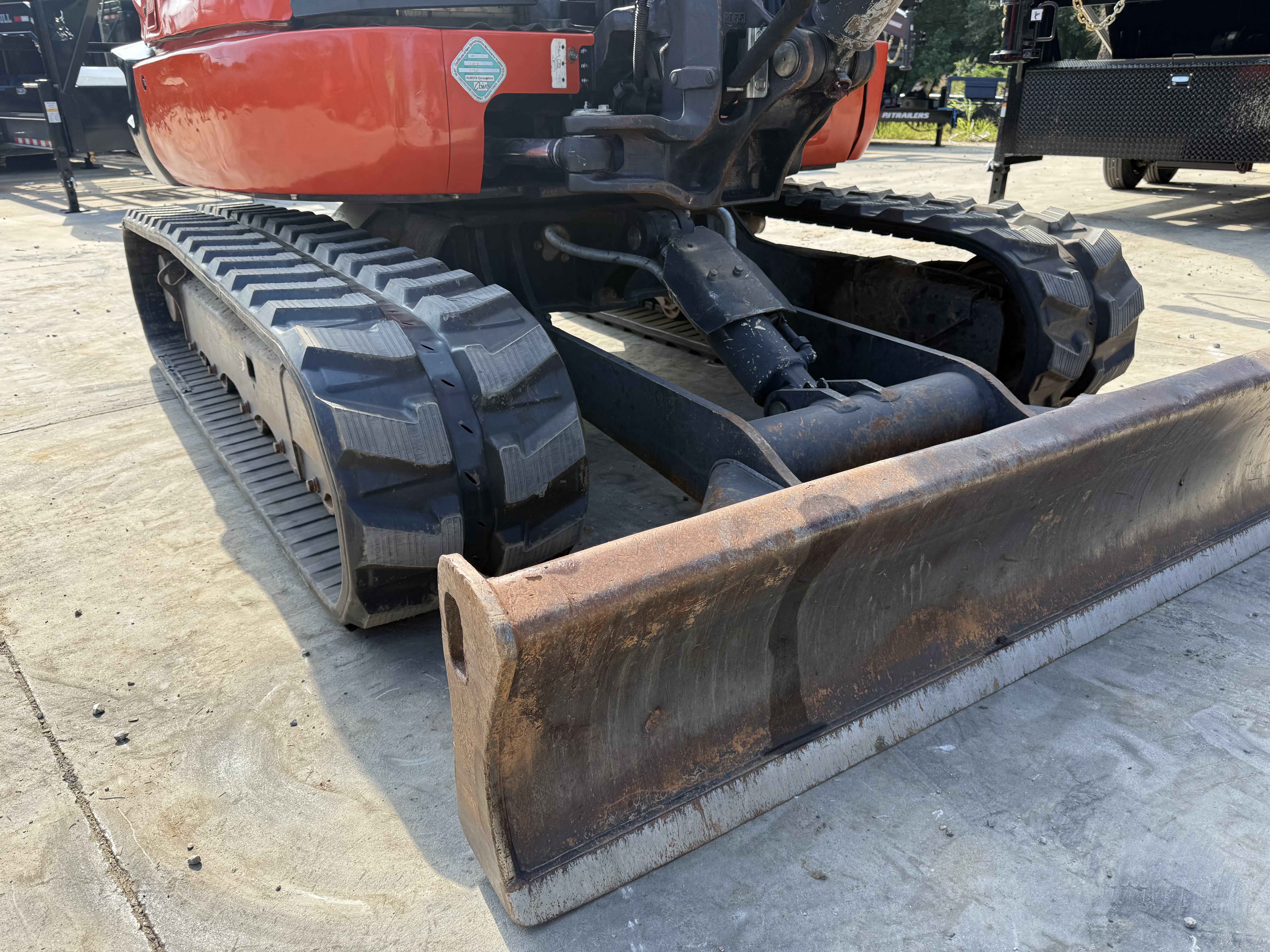

• Blade Dimensions:

  • Width: 6'5.2" (1,960 mm)

  • Height: 1'4.1" (410 mm)

  • Max. Lift Above Ground: 17.3" (440 mm)

  • Max. Drop Below Ground: 16.1" (410 mm

🔄 Swing System

• Swing Speed: 9.3 rpm

• Boom Swing Angle:

  • Left: 70°

  • Right: 55°
